ATI Radeon X1550

Written by
Rate this item
(0 votes)

Lowend replacement of Radeon X1300 with core made by UMC.



Zaatharen's card:

ATi RV516 GPU
ATi RV516 GPU

ATi RV516 GPU
RV516 GPU
RV516 GPU

RV516 GPU
Gigabyte GV-RX155256D-RH
Gigabyte GV-RX155256D-RH

Gigabyte GV-RX155256D-RH
Gigabyte GV-RX155256D-RH
Gigabyte GV-RX155256D-RH

Gigabyte GV-RX155256D-RH
Gigabyte GV-RX155256D-RH
Gigabyte GV-RX155256D-RH

Gigabyte GV-RX155256D-RH

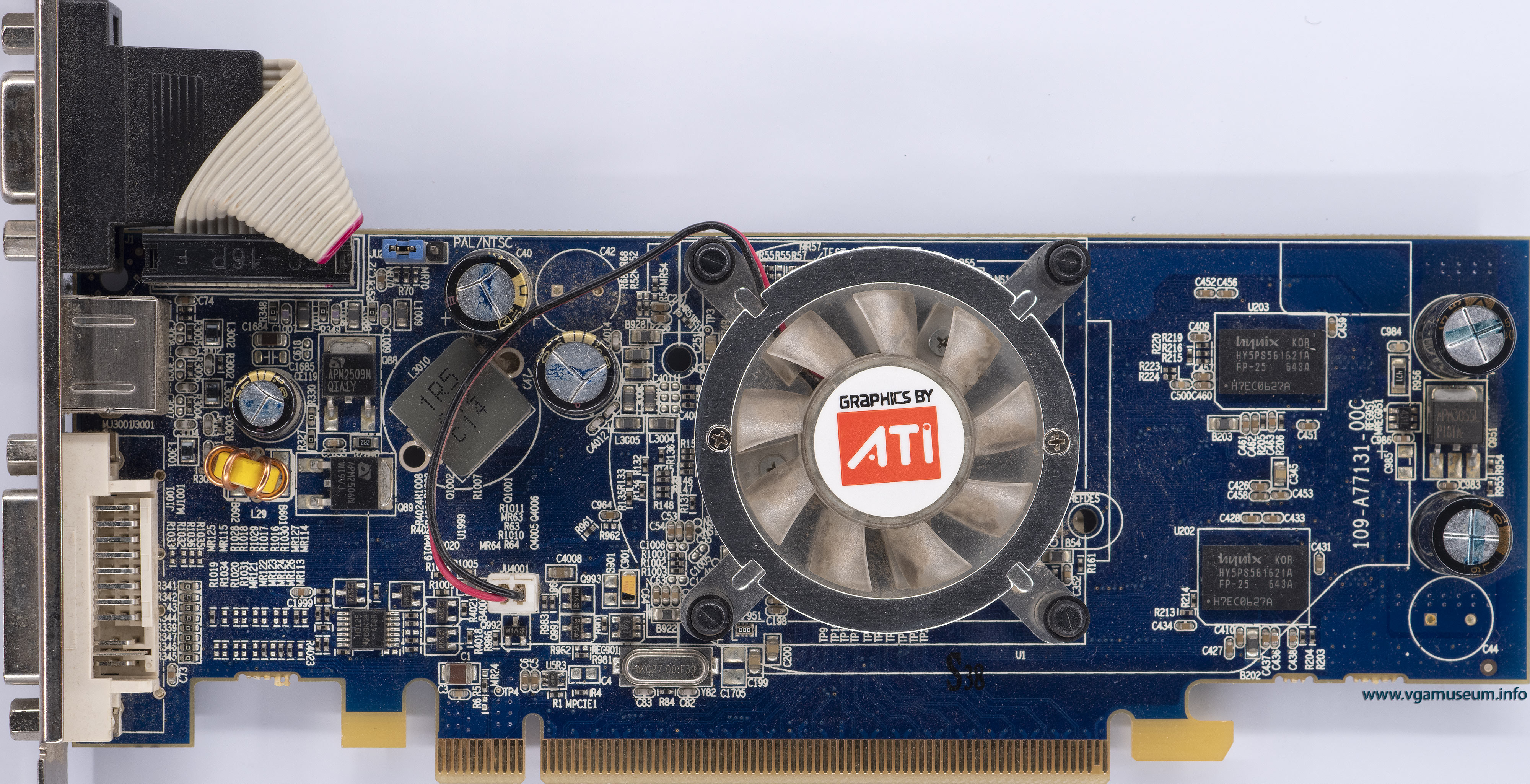

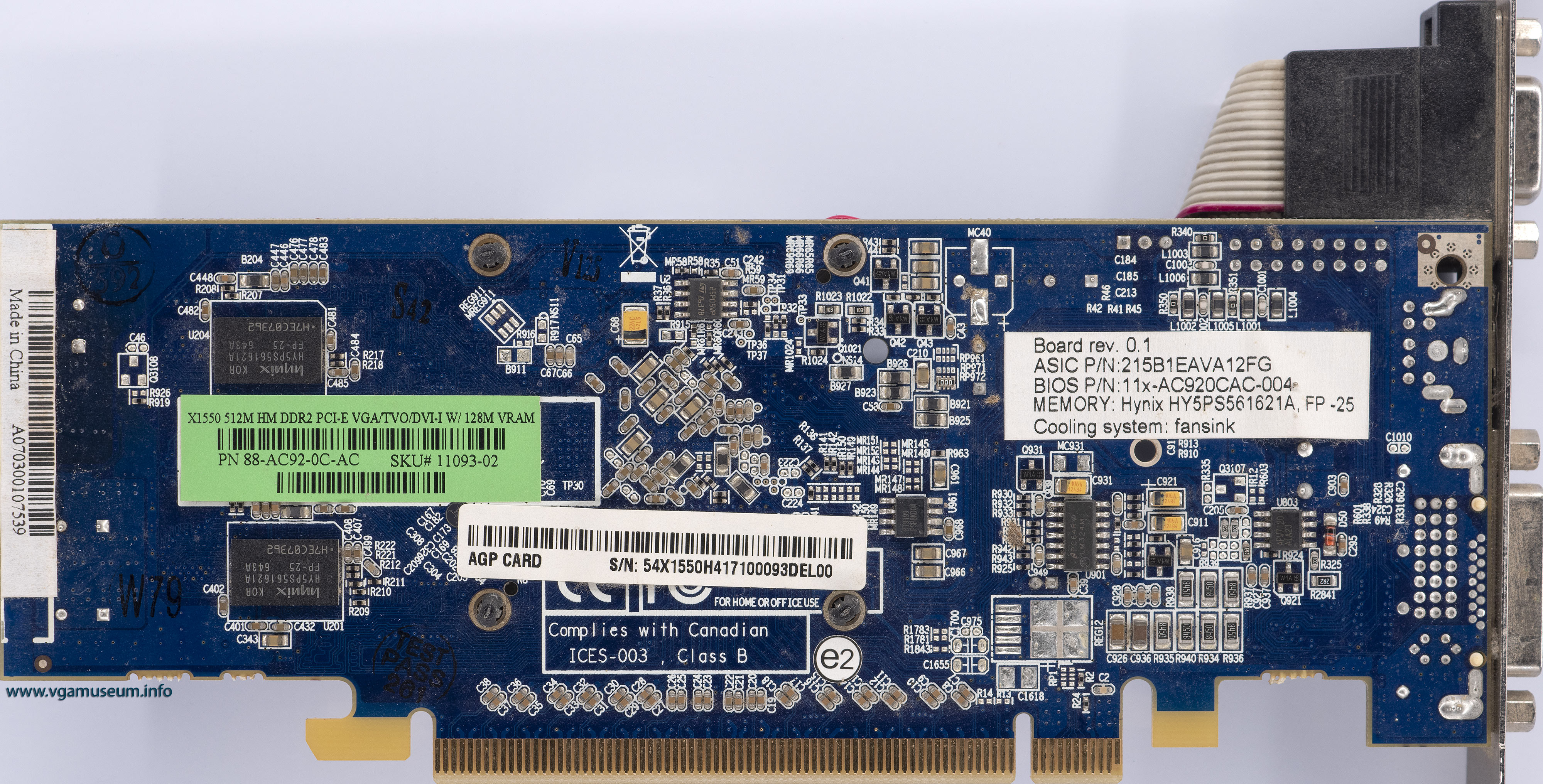

Dell Radeon X1550 256MB
Dell Radeon X1550 256MB

Dell Radeon X1550 256MB
Dell Radeon X1550 256MB
Dell Radeon X1550 256MB

Dell Radeon X1550 256MB
Dell Radeon X1550 256MB
Dell Radeon X1550 256MB

Dell Radeon X1550 256MB

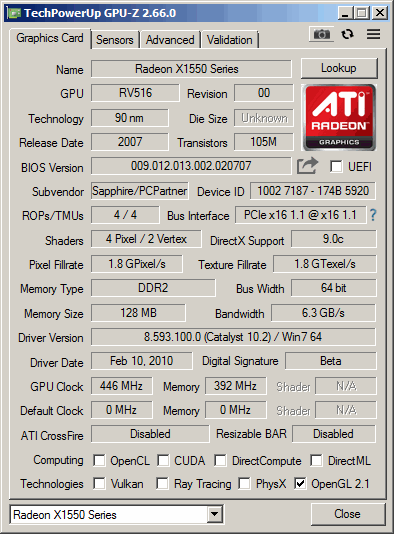

Dell GPU-Z
Dell GPU-Z

Dell GPU-Z

Additional Info

  • Made by: ATI
  • Codename: RV516
  • Bus: PCI-E x16
  • Memory Size: 256MB
  • Max Memory Size: 512MB
  • Memory Type: DDR2
  • Year: 2007
  • Card Type: VGA
  • Family: Radeon X1k
  • Manufacturer: UMC
  • Process tech: 90nm
  • Transistors (Millions): 105
  • Made in: Taiwan
  • Owned by: Zaatharen
  • Outputs: 15 pin D‐sub, DVI, S-Video, DMS-59
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX9
  • OpenGL: 2.1
  • Core Clock (MHz): 550
  • Memory Clock (MHz): 800
  • Memory Bus Width: 128bit
  • Memory Bandwidth (MB/s): 12800
  • Pixel Pipelines: 4
  • Texture Units: 4
  • Shader Model: 3.0 (DX9)
  • Vertex Shaders: 2
  • Pixel Shaders: 4
  • Pixel Fillrate (MPixel/s): 2200
  • Texel Fillrate (MTexel/s): 2200
  • Sold by: Gigabyte Dell
  • Ramdac (MHz): 400
