Tuesday, 10 June 2014 00:00

ATI Radeon

Written by
Rate this item
(0 votes)

1st DX7 chip from ATi and only one real rival to nVidia's Geforce 2. Sometimes called Radeon 7200.

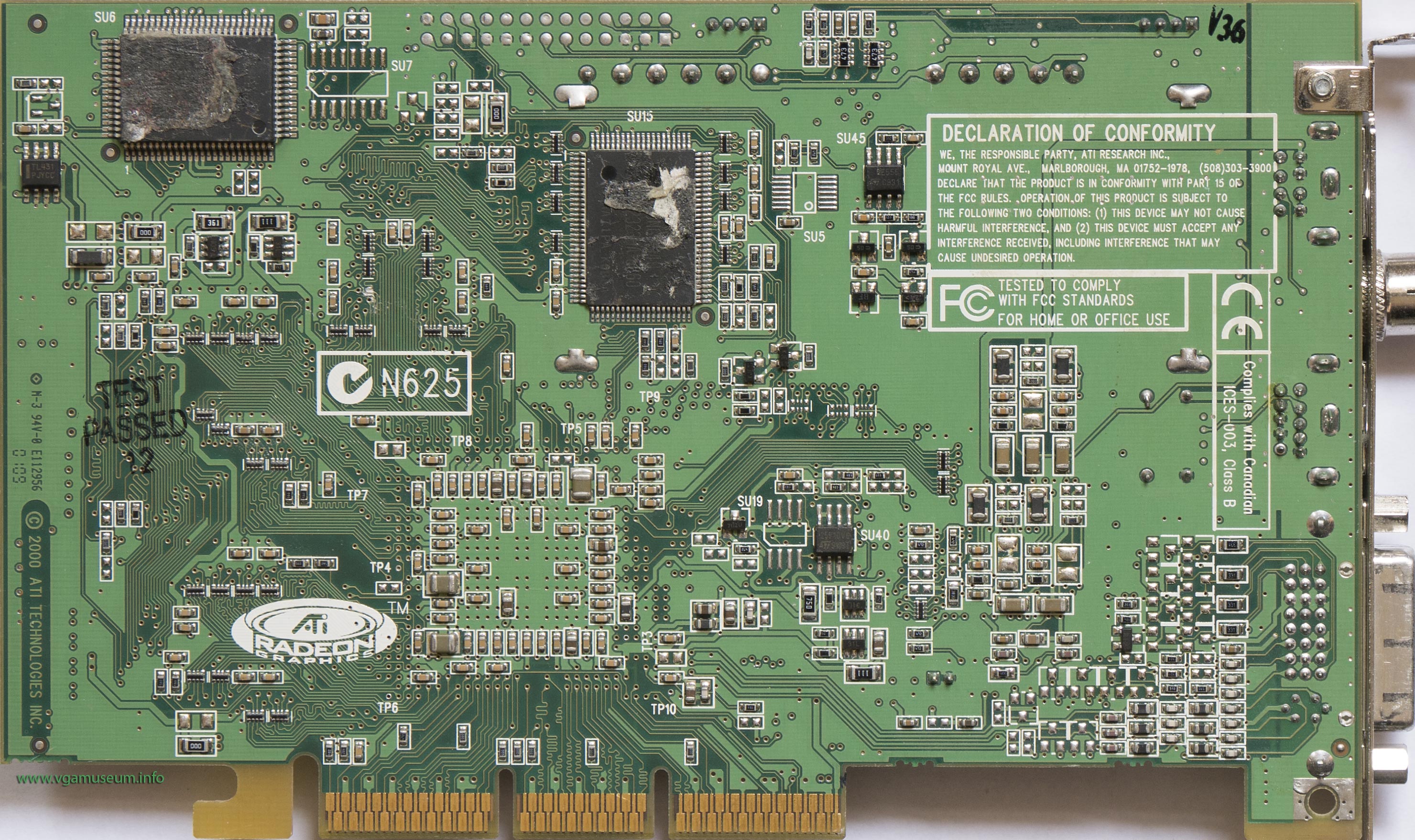

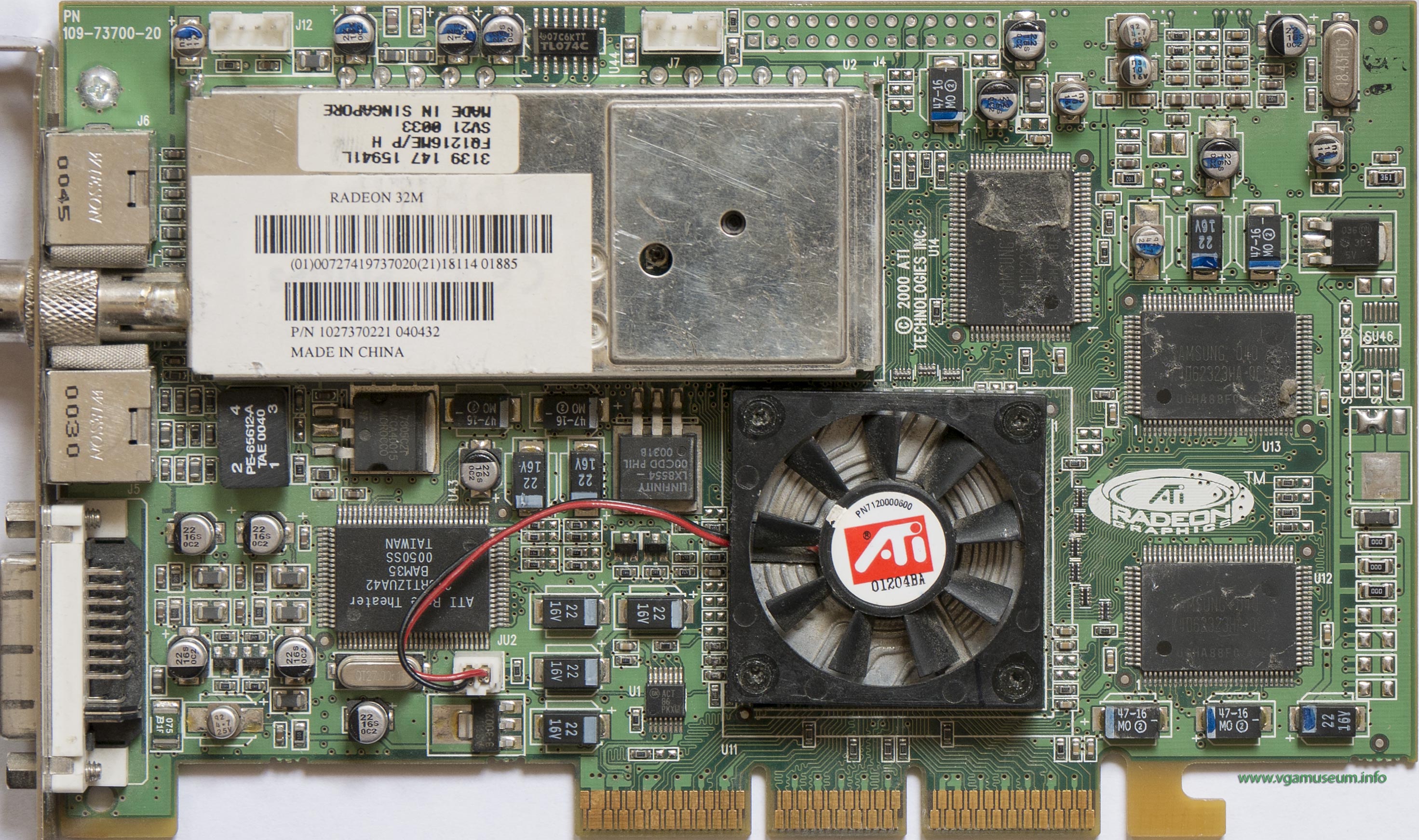

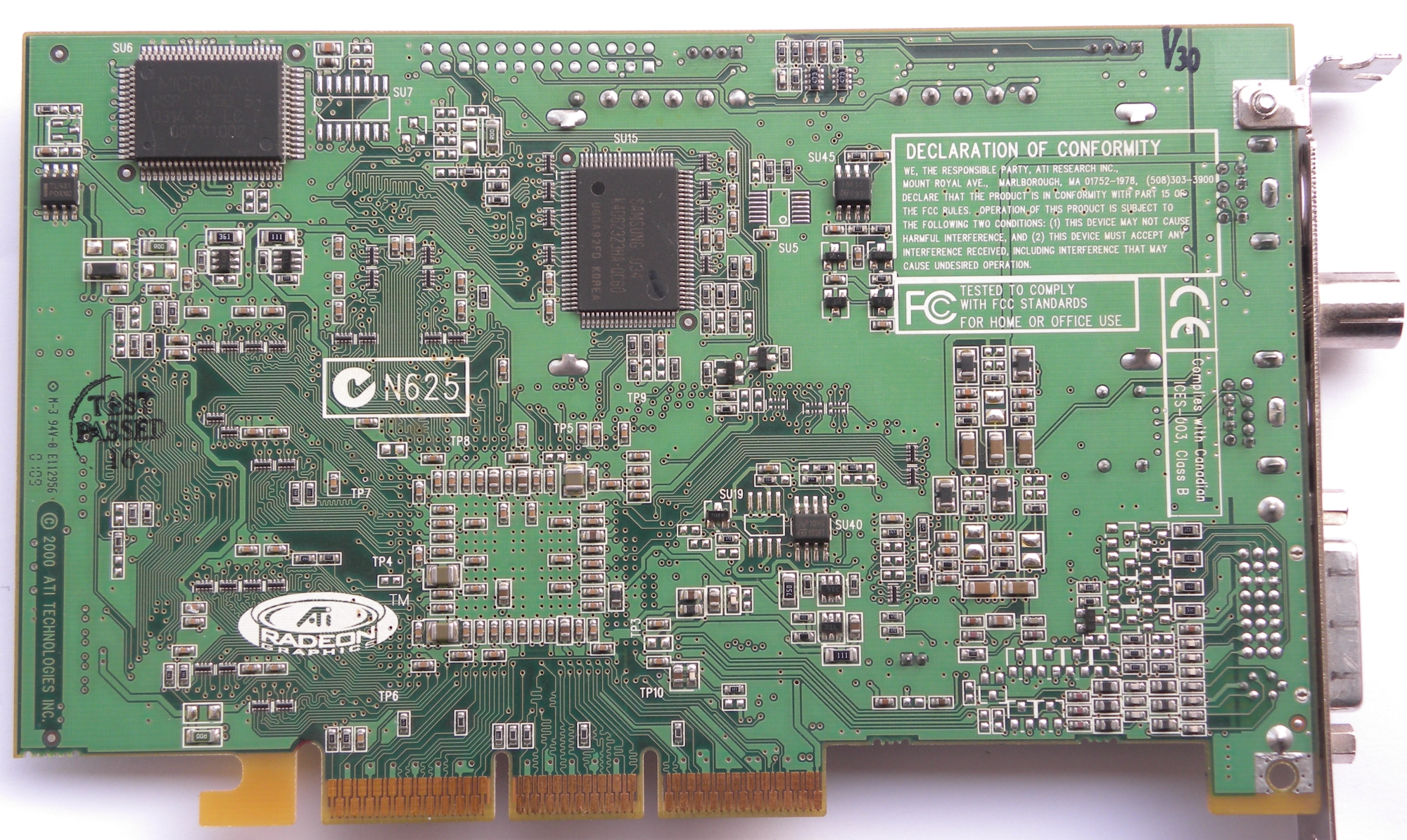

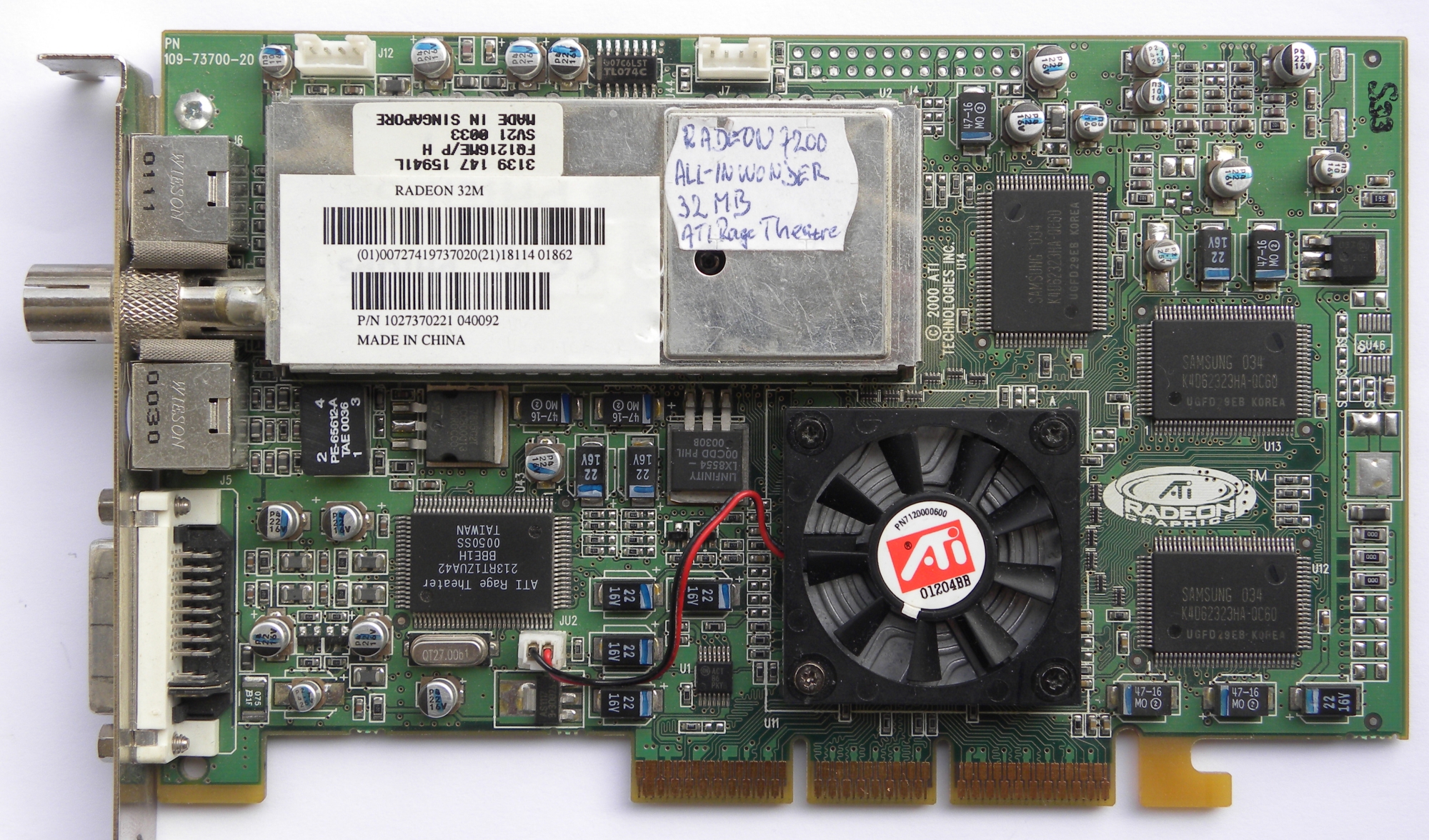

Zaatharen's card:



ATi All-in-Wonder Radeon
ATi All-in-Wonder Radeon

ATi All-in-Wonder Radeon
ATi All-in-Wonder Radeon
ATi All-in-Wonder Radeon

ATi All-in-Wonder Radeon
GPU-Z
GPU-Z

GPU-Z

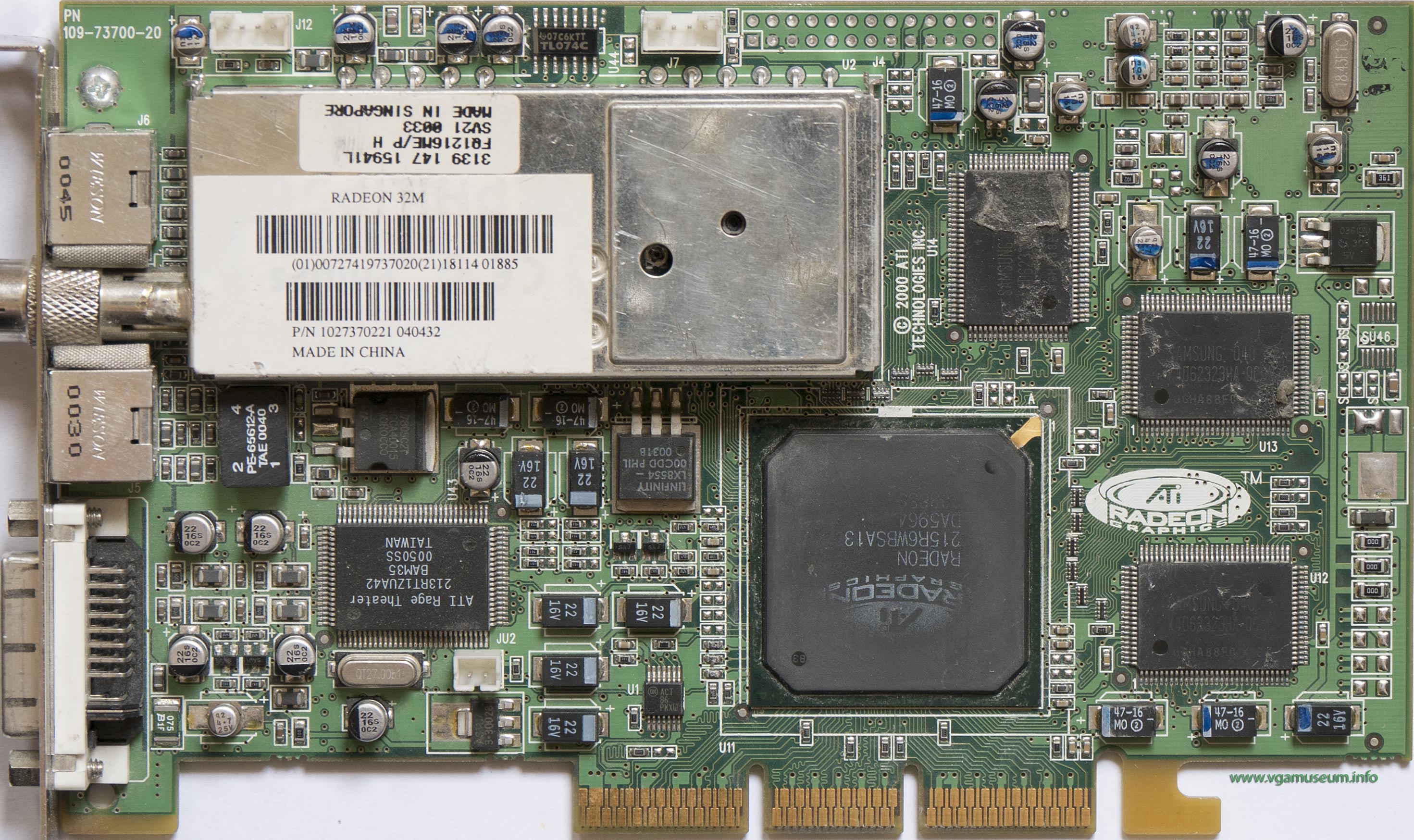

Vlask's chip:

ATi All-in-Wonder Radeon
ATi All-in-Wonder Radeon

ATi All-in-Wonder Radeon
ATi All-in-Wonder Radeon
ATi All-in-Wonder Radeon

ATi All-in-Wonder Radeon
ATi All-in-Wonder Radeon
ATi All-in-Wonder Radeon

ATi All-in-Wonder Radeon

Additional Info

  • Made by: ATI
  • Codename: R100 Rage 6C
  • Bus: AGP 4x
  • Memory Size: 32MB
  • Max Memory Size: 64MB
  • Memory Type: DDR
  • Year: 2000
  • Announce Date: Tuesday, 25 April 2000
  • Card Type: VGA
  • Family: Radeon
  • Manufacturer: TSMC
  • Process tech: 180nm
  • Transistors (Millions): 30
  • Made in: Taiwan
  • Owned by: Zaatharen, Vlask (chip/not working)
  • Outputs: DVI, VIVO
  • Power consumption (W): 23
  • Price $: 329
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX7
  • OpenGL: 1.3
  • Core Clock (MHz): 166
  • Core: 128bit
  • Memory Clock (MHz): 333
  • Memory Bus Width: 128bit
  • Memory Bandwidth (MB/s): 5248
  • Pixel Pipelines: 2
  • Texture Units: 6
  • Vertex Shaders: 1 (1.1)
  • Pixel Shaders: 2 (1.4)
  • Pixel Fillrate (MPixel/s): 332
  • Texel Fillrate (MTexel/s): 996
  • Triangle/Vertices Rate (M/s): 30
  • Sold by: ATI
  • Max Core Clock (MHz): 183
  • Min Core Clock (MHz): 166
  • Max Memory Clock (MHz): 366
  • Min Memory Clock (MHz): 166
  • Ramdac (MHz): 350
