ATI Mobility Radeon 7500

Written by
Rate this item
(0 votes)

Mobile version of Radeon 7500, often on package along with VRAM.



Card is based on RV200 core, which is 150nm die-shrink from Radeon 7000. Its using AGP 4x bus. This one is for laptops, it has some power saving features, it can downclock GPU to 66MHz, eating only about 0,5W. Card was widely used in IBM ThinkPads T40 in package which includes RAM for space saving. It has 16MB and 32MB versions. There is also version with 128-bit memory bus and 64MB RAM, this version dont have memory chips on package.

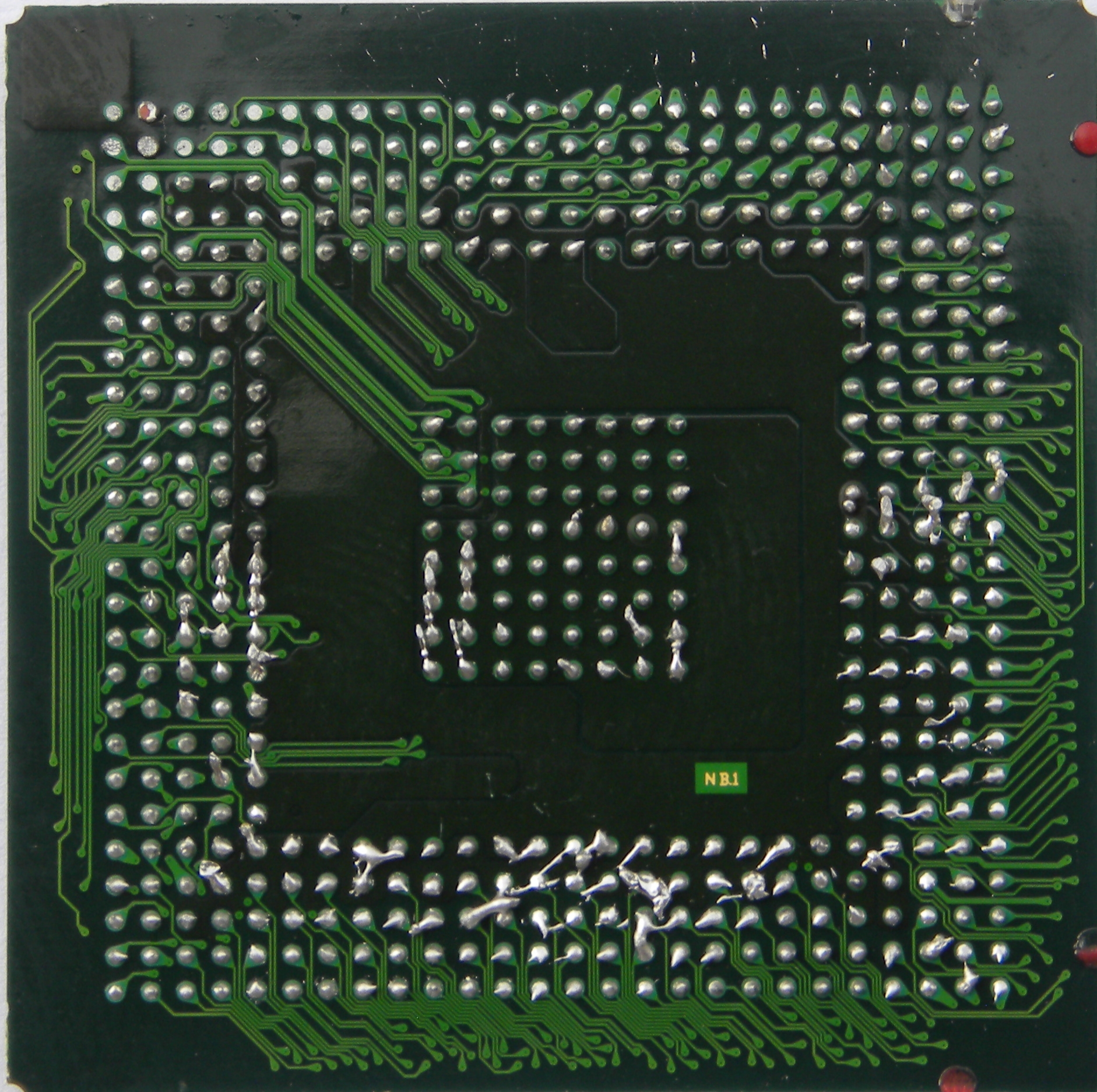

ATi M7-CSP16 - ATi Mobility Radeon 7500 with 16MB DDR RAM on package, pulled from dead IBM ThinkPad T40

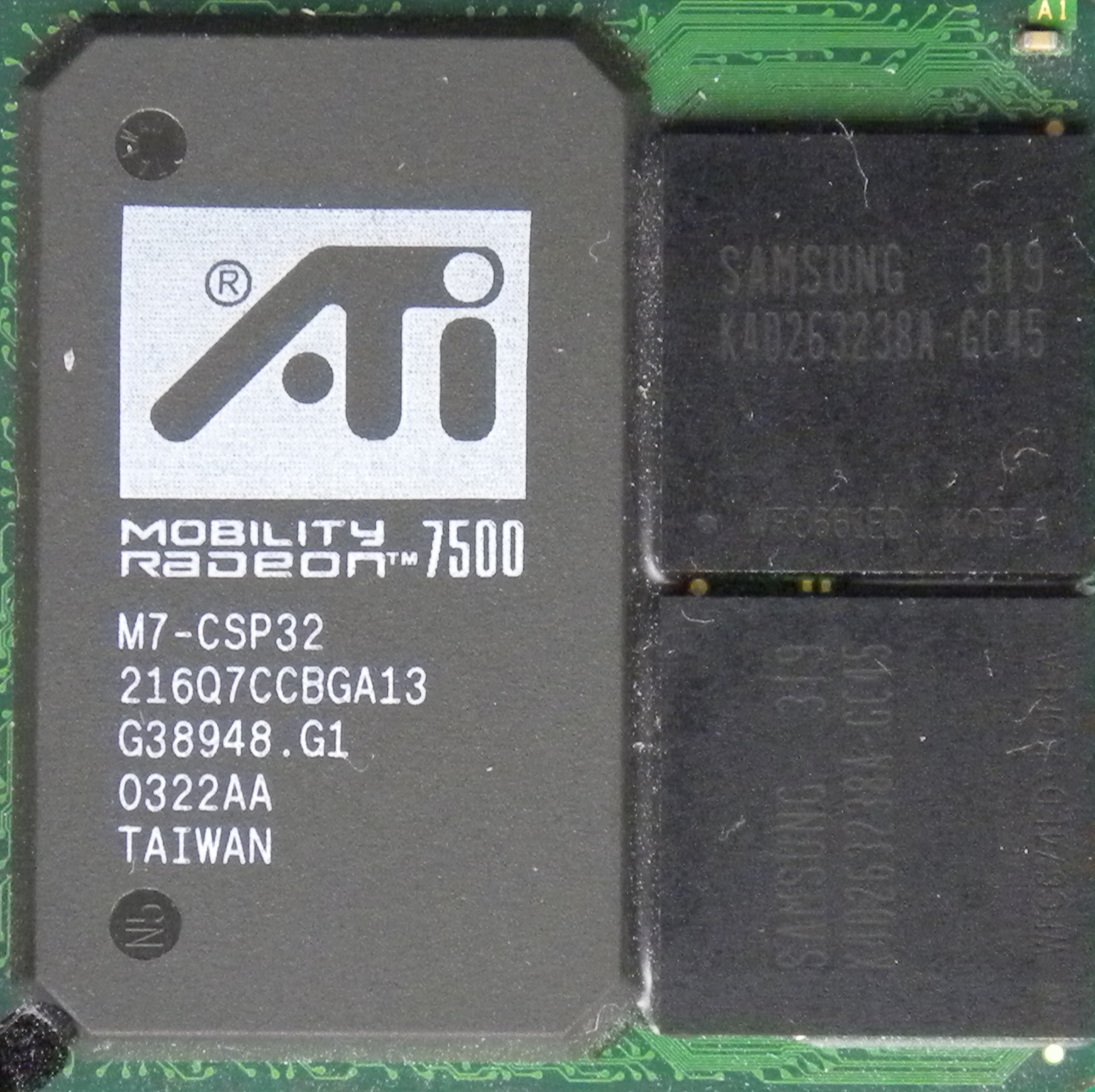

ATi M7-CSP32 - ATi Mobility Radeon 7500 with 32MB DDR RAM on package, still works in another IBM ThinkPad T40

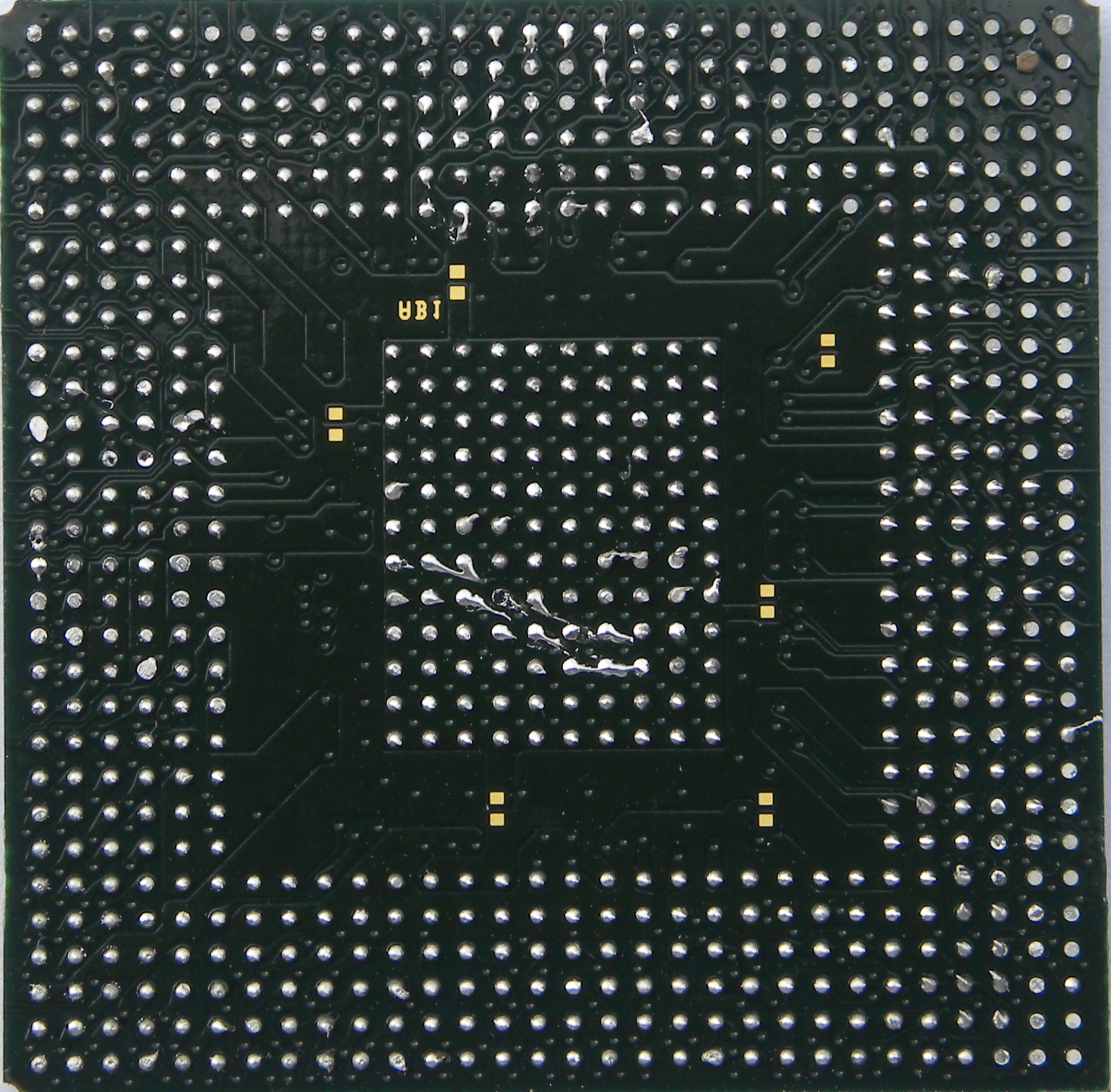

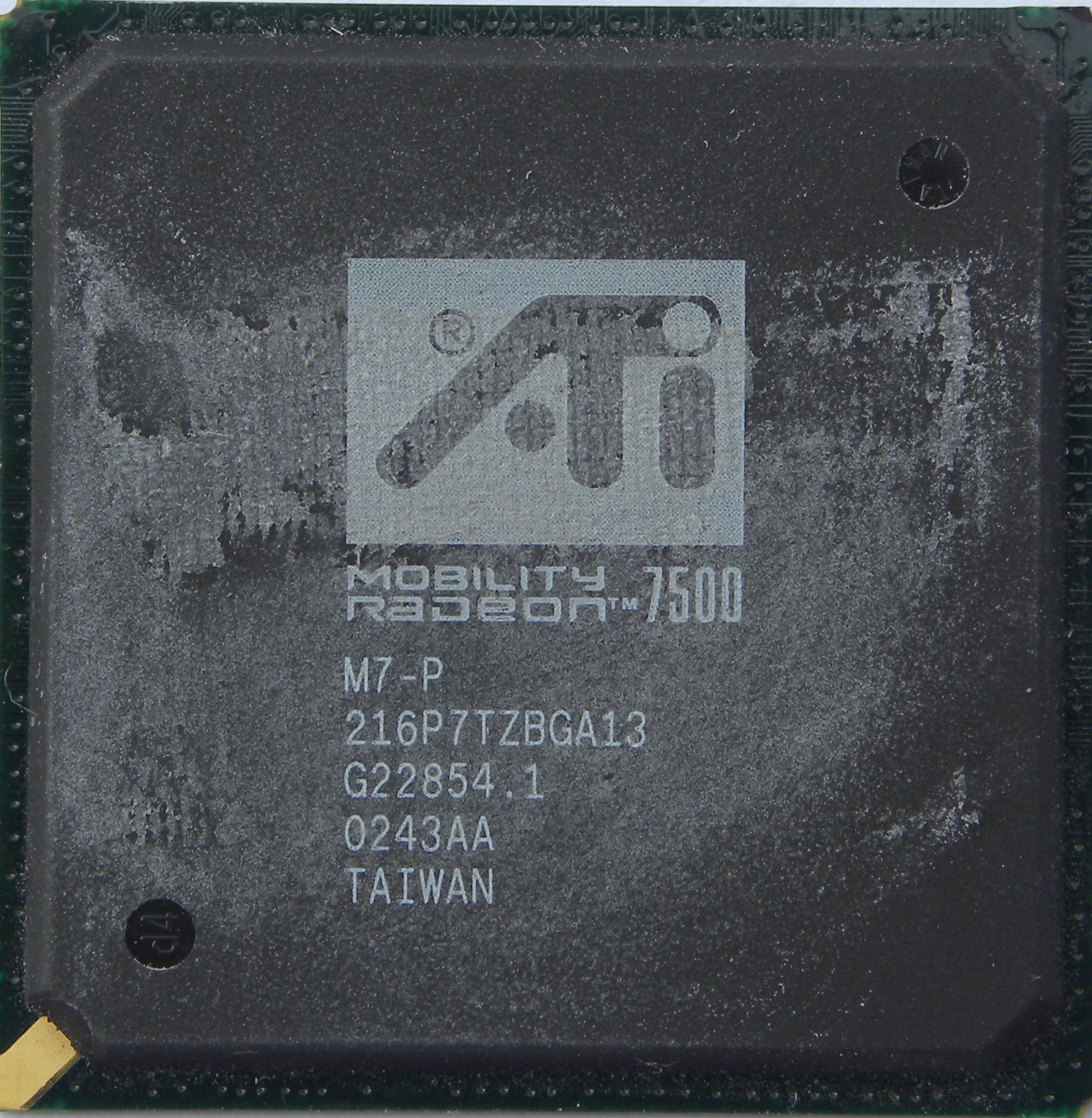

ATi M7-P - ATi Mobility Radeon 7500 with 64MB DDR RAM not on package, pulled from dead Dell laptop



Zaatharen's cards:

ATi M7-CSP16
ATi M7-CSP16

ATi M7-CSP16
ATi M7-CSP16
ATi M7-CSP16

ATi M7-CSP16
ATi M7-CSP32
ATi M7-CSP32

ATi M7-CSP32
IBM ThinkPad T40
IBM ThinkPad T40

IBM ThinkPad T40
ATi M7-P
ATi M7-P

ATi M7-P
ATi M7-P
ATi M7-P

ATi M7-P



Vlask's chip:

From IBM T42 Type 2373.

ATi M7-CSP32
ATi M7-CSP32

ATi M7-CSP32

Additional Info

  • Made by: ATI
  • Codename: M7
  • Bus: Integrated
  • Memory Size: 16MB, 32MB
  • Max Memory Size: 64MB
  • Memory Type: DDR
  • Year: 2001
  • Announce Date: Monday, 27 August 2001
  • Card Type: VGA
  • Family: Radeon
  • Manufacturer: TSMC
  • Process tech: 150nm
  • Transistors (Millions): 30
  • Made in: Taiwan
  • Owned by: Zaatharen, Vlask (chip/not working)
  • Outputs: 15 pin D‐sub, S-Video
  • Power consumption (W): 27
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX7
  • OpenGL: 1.4
  • Core Clock (MHz): 260
  • Core: 128bit
  • Memory Clock (MHz): 366
  • Memory Bus Width: 64bit
  • Memory Bandwidth (MB/s): 2912
  • Pixel Pipelines: 2
  • Texture Units: 3
  • Vertex Shaders: 1 (1.1)
  • Pixel Shaders: 2 (1.1)
  • Pixel Fillrate (MPixel/s): 520
  • Texel Fillrate (MTexel/s): 1560
  • Sold by: IBM Dell
  • Max Core Clock (MHz): 280
  • Min Core Clock (MHz): 260
  • Max Memory Clock (MHz): 400
  • Min Memory Clock (MHz): 366
  • Ramdac (MHz): 350
