Friday, 20 March 2015 23:46

AMD Radeon HD 6380G

Written by
Rate this item
(0 votes)

Lowend graphics integrated in mobile dual-core socket FS1 APU, basically half of everything compared to HD6520G.



ATI PowerPlay (BIOS)
State #1 GPU: 400 MHz
State #2 GPU: 275 MHz
State #3 GPU: 400 MHz (UVD)
State #4 GPU: 275 MHz
State #5 GPU: 400 MHz
State #6 GPU: 200 MHz (Boot)
State #7 GPU: 200 MHz (Thermal)

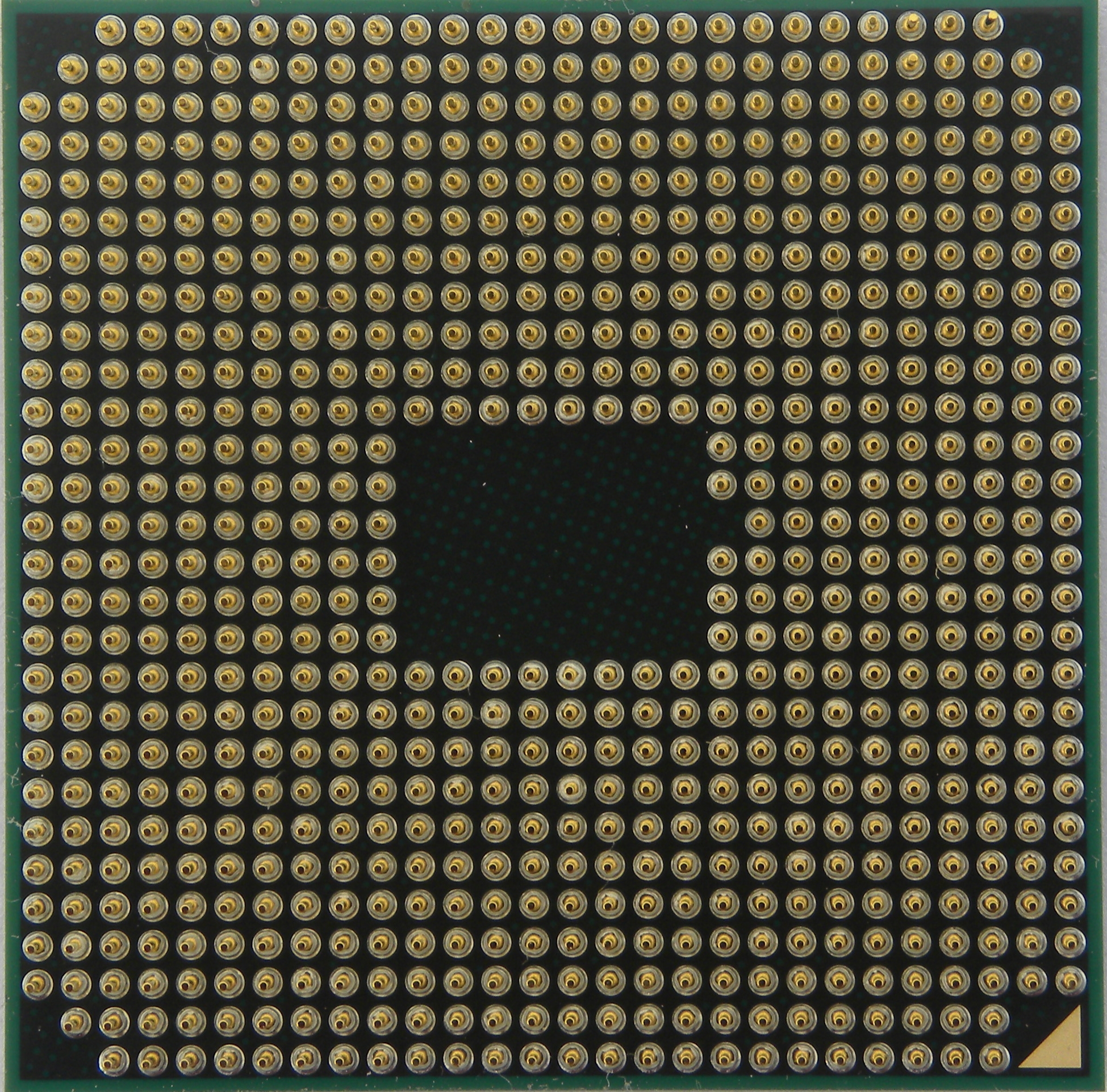

AMD E2-3000M APU - Llano generation, 32nm, 2 CPU cores with clok 1800MHz and Turbo up to 2,4GHz, can be overclocked with FusionTweaker Utility, APU has locked two CPU cores, half CPU L2 cache and 240 GPU shaders. This is slowest model for AMD FS1 socket.



Zaatharen's APU:



AMD E2-3000M APU
AMD E2-3000M APU

AMD E2-3000M APU
AMD E2-3000M APU
AMD E2-3000M APU

AMD E2-3000M APU
AMD A60M FCH
AMD A60M FCH

AMD A60M FCH
GPU-Z
GPU-Z

GPU-Z

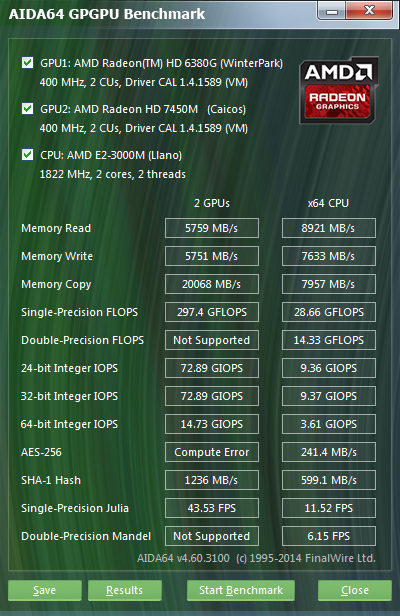

AIDA64 GPGPU benchmark
AIDA64 GPGPU benchmark

AIDA64 GPGPU benchmark

Additional Info

  • Made by: AMD
  • Codename: Sumo
  • Bus: APU
  • Memory Size: 512MB
  • Max Memory Size: 1GB
  • Memory Type: DDR3
  • Year: 2011
  • Announce Date: Tuesday, 14 June 2011
  • Card Type: VGA
  • Family: Radeon HD6x
  • Manufacturer: AMD
  • Process tech: 32nm
  • Transistors (Millions): 758
  • Made in: Malaysia
  • Owned by: Zaatharen
  • Outputs: 15 pin D‐sub, HDMI
  • Power consumption (W): 35
  • Video Acceleration: MPEG-4 AVC (H.264)
  • DirectX: DX11
  • OpenGL: 4.3
  • Core Clock (MHz): 400
  • Memory Clock (MHz): 1333
  • Memory Bus Width: 64bit
  • Memory Bandwidth (MB/s): 10700
  • Texture Units: 8
  • ROPs: 4
  • Unified Shaders: 160
  • Shader Model: 5.0 (DX11)
  • Pixel Fillrate (MPixel/s): 1620
  • Texel Fillrate (MTexel/s): 3240
  • Sold by: AMD Dell
  • Ramdac (MHz): 400
  • CPU Socket: FS1
