AMD Radeon HD 6870

Written by
Rate this item
(0 votes)

Higher level mainstream card with Eyefinity support. Also added Blu-ray 3D acceleration and playback and stereoscopic 3D gaming.





Zaatharen's card:



AMD Barts XT GPU
AMD Barts XT GPU

AMD Barts XT GPU

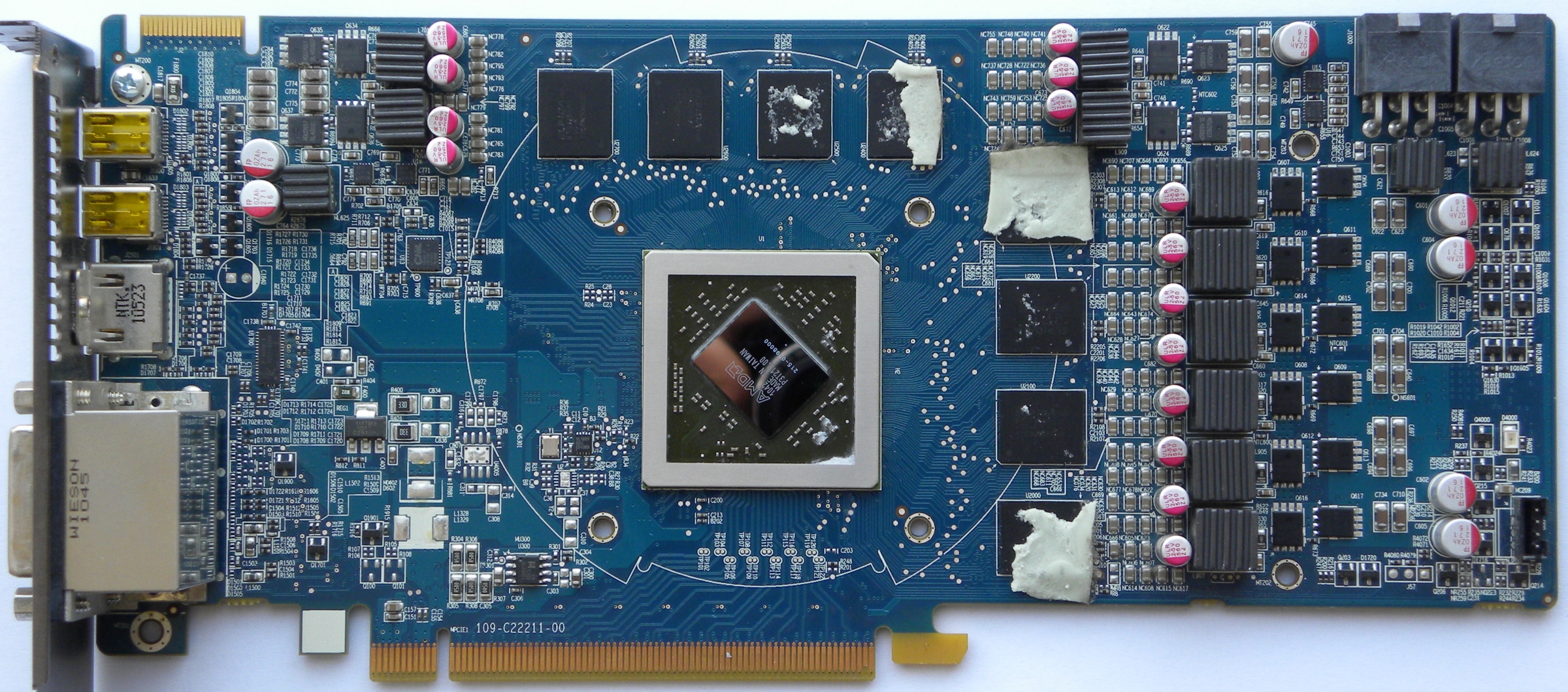

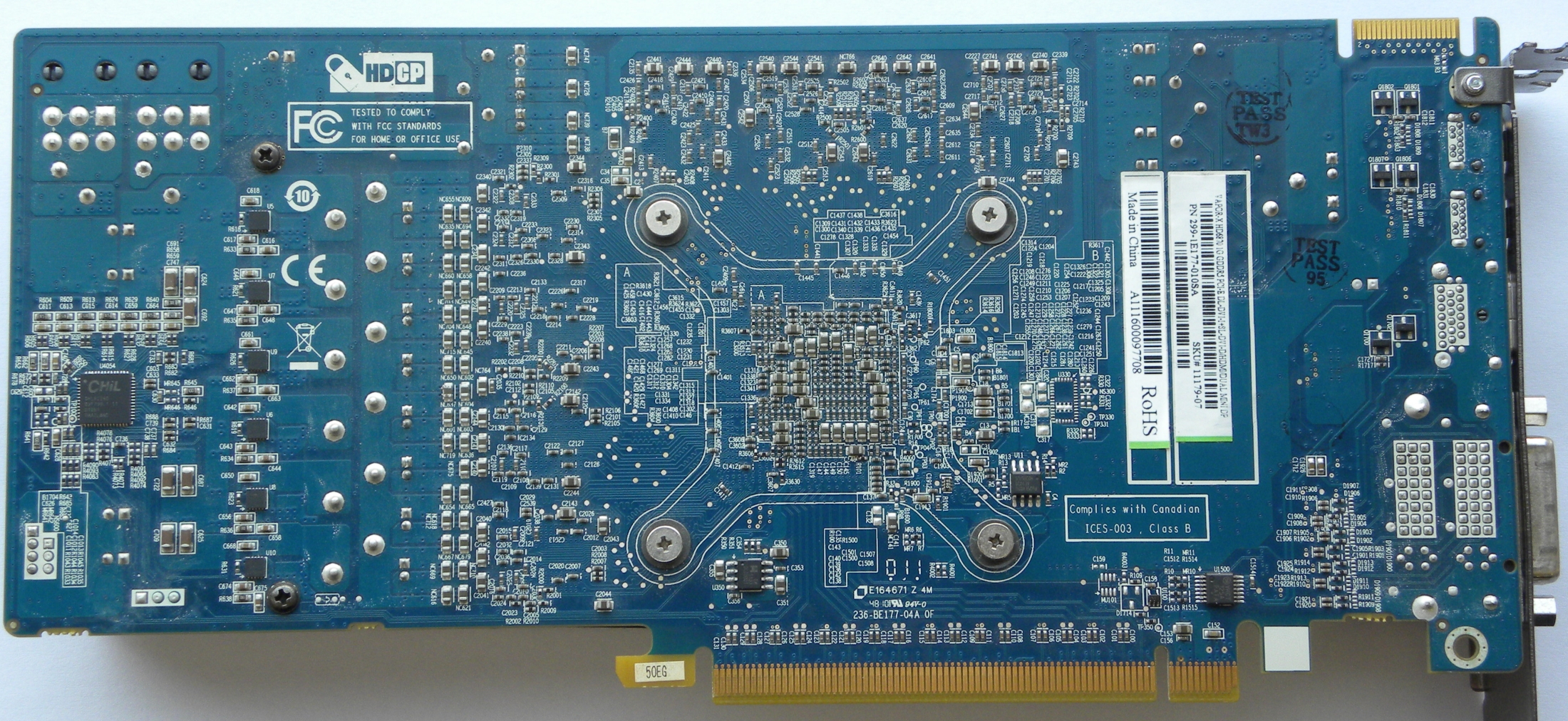

Sapphire Vapor-X HD6870 1G
Sapphire Vapor-X HD6870 1G

Sapphire Vapor-X HD6870 1G
Sapphire Vapor-X HD6870 1G
Sapphire Vapor-X HD6870 1G

Sapphire Vapor-X HD6870 1G
Sapphire Vapor-X HD6870 1G
Sapphire Vapor-X HD6870 1G

Sapphire Vapor-X HD6870 1G
Sapphire Vapor-X HD6870 1G
Sapphire Vapor-X HD6870 1G

Sapphire Vapor-X HD6870 1G

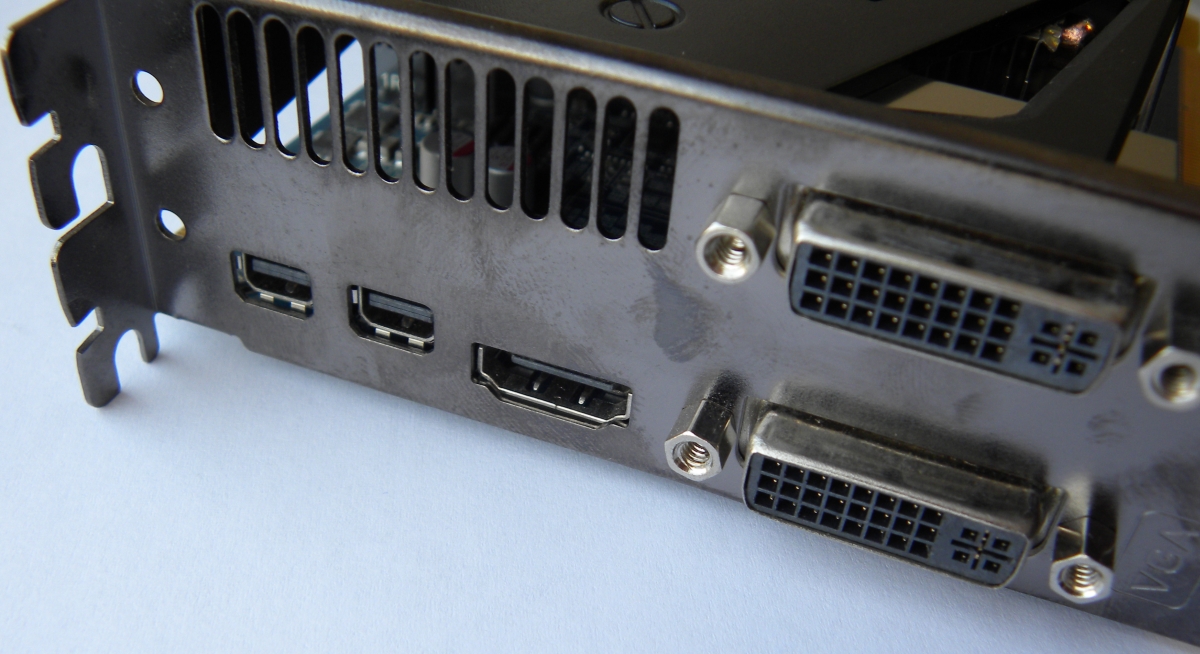

Sapphire Vapor-X HD6870 1G outputs
Sapphire Vapor-X HD6870 1G outputs

Sapphire Vapor-X HD6870 1G outputs
GPU-Z
GPU-Z

GPU-Z

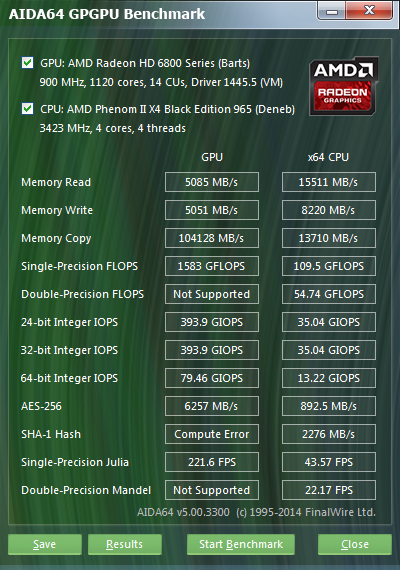

AIDA64 GPGPU benchmark
AIDA64 GPGPU benchmark

AIDA64 GPGPU benchmark



Additional Info

  • Made by: AMD
  • Codename: Barts
  • Bus: PCI-E 3 x16
  • Memory Size: 1GB
  • Max Memory Size: 2GB
  • Memory Type: GDDR5
  • Year: 2010
  • Announce Date: Friday, 22 October 2010
  • Card Type: VGA
  • Family: Radeon HD6x
  • Manufacturer: TSMC
  • Process tech: 40nm
  • Transistors (Millions): 1700
  • Made in: Taiwan
  • Owned by: Zaatharen
  • Outputs: DVI, HDMI, DisplayPort
  • Power consumption (W): 151
  • Price $: 239
  • Video Acceleration: MPEG-4 AVC (H.264)
  • DirectX: DX11
  • OpenGL: 4.3
  • Core Clock (MHz): 900
  • Memory Clock (MHz): 4200
  • Memory Bus Width: 256bit
  • Memory Bandwidth (MB/s): 134400
  • Texture Units: 56
  • ROPs: 32
  • Unified Shaders: 1120
  • Shader Model: 5.0 (DX11)
  • Pixel Fillrate (MPixel/s): 28800
  • Texel Fillrate (MTexel/s): 50400
  • Shaders power (GFlops): 2016
  • Sold by: Sapphire
  • Max Core Clock (MHz): 975
  • Min Core Clock (MHz): 900
  • Max Memory Clock (MHz): 4600
  • Min Memory Clock (MHz): 4200
  • Ramdac (MHz): 400
