ATI Radeon 8500 LE

Written by
Rate this item
(0 votes)



Bit underclocked 8500 card by 25/50MHz on core/mem. GeForce 3 Ti 500 killer.





Card is based on R200 core, having mostly 64MB memory on 128-bit bus. Later 128MB cards were on market. Card was easilly overclockable to 300MHz on GPU and memory chips up to 595MHz according to some people. I tried only 300MHz on core and 520MHz on memory chips, it worked stable.

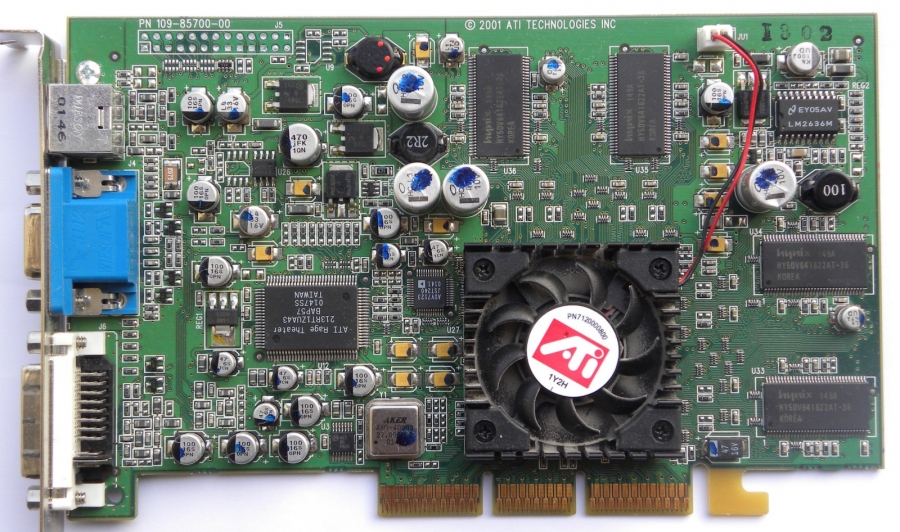

ATi Radeon 8500 LE - This is reference card.

Hercules 3DProphet FDX 8500 LE - This card has downclocked memory chips to 476MHz effectivelly.

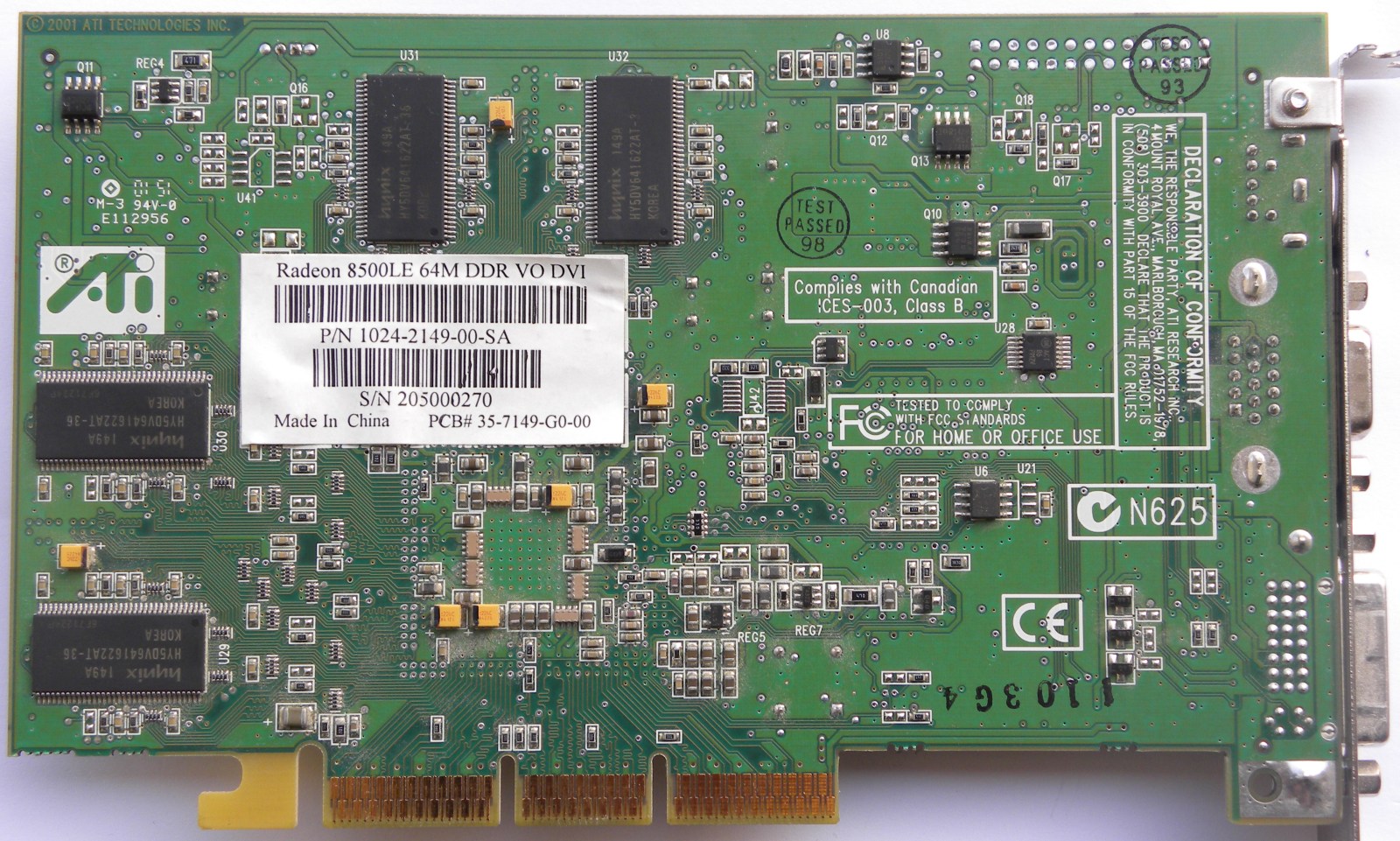

Zaatharen's card:

ATi Radeon 8500 LE VO DVI
ATi Radeon 8500 LE VO DVI

ATi Radeon 8500 LE VO DVI

ATi Radeon 8500 LE VO DVI
ATi Radeon 8500 LE VO DVI

ATi Radeon 8500 LE VO DVI

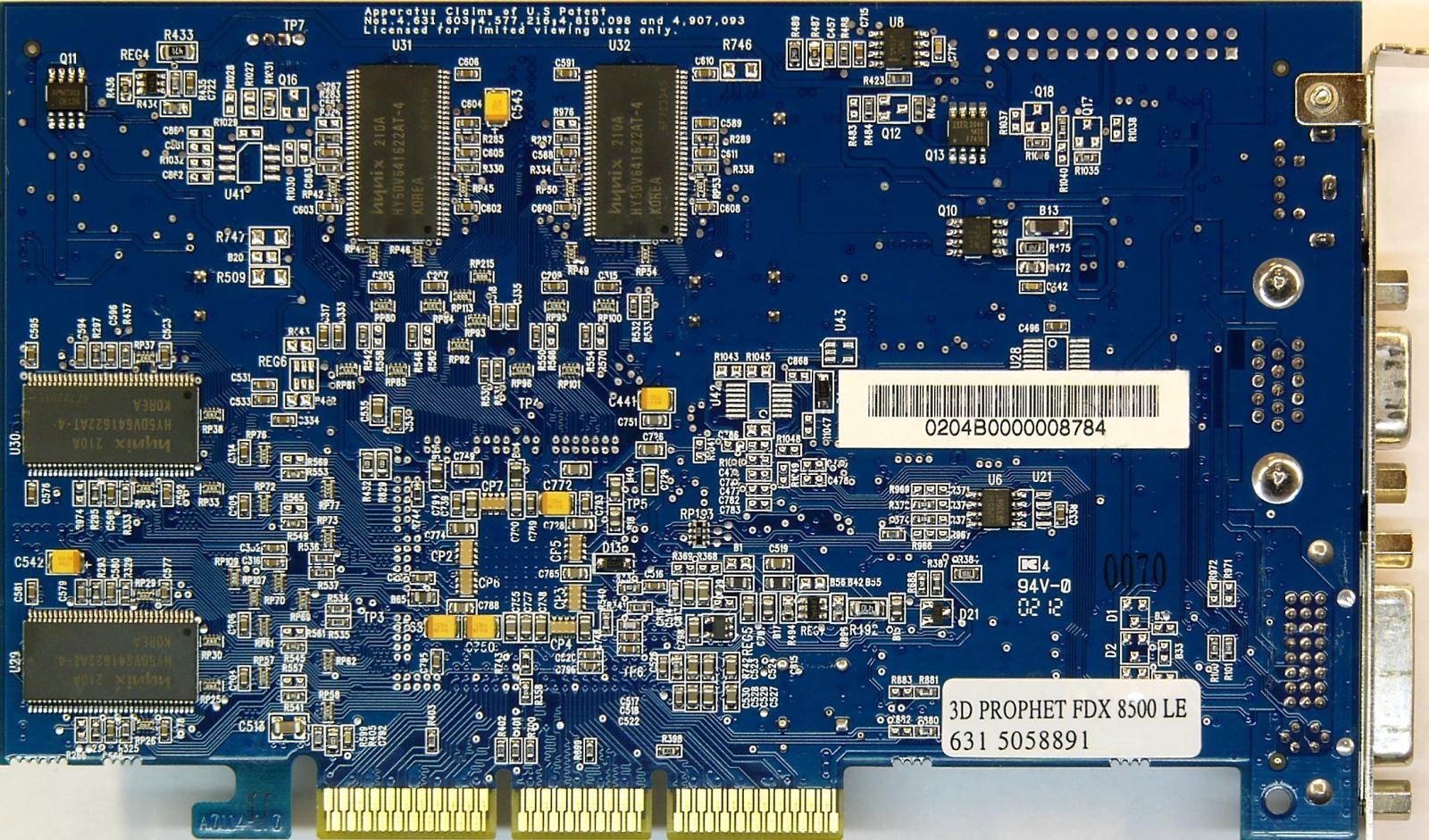

Palcal´s card:



(474) Hercules 3DProphet FDX 8500 LE
(474) Hercules 3DProphet FDX 8500 LE

(474) Hercules 3DProphet FDX 8500 LE

(474) Hercules 3DProphet FDX 8500 LE
(474) Hercules 3DProphet FDX 8500 LE

(474) Hercules 3DProphet FDX 8500 LE

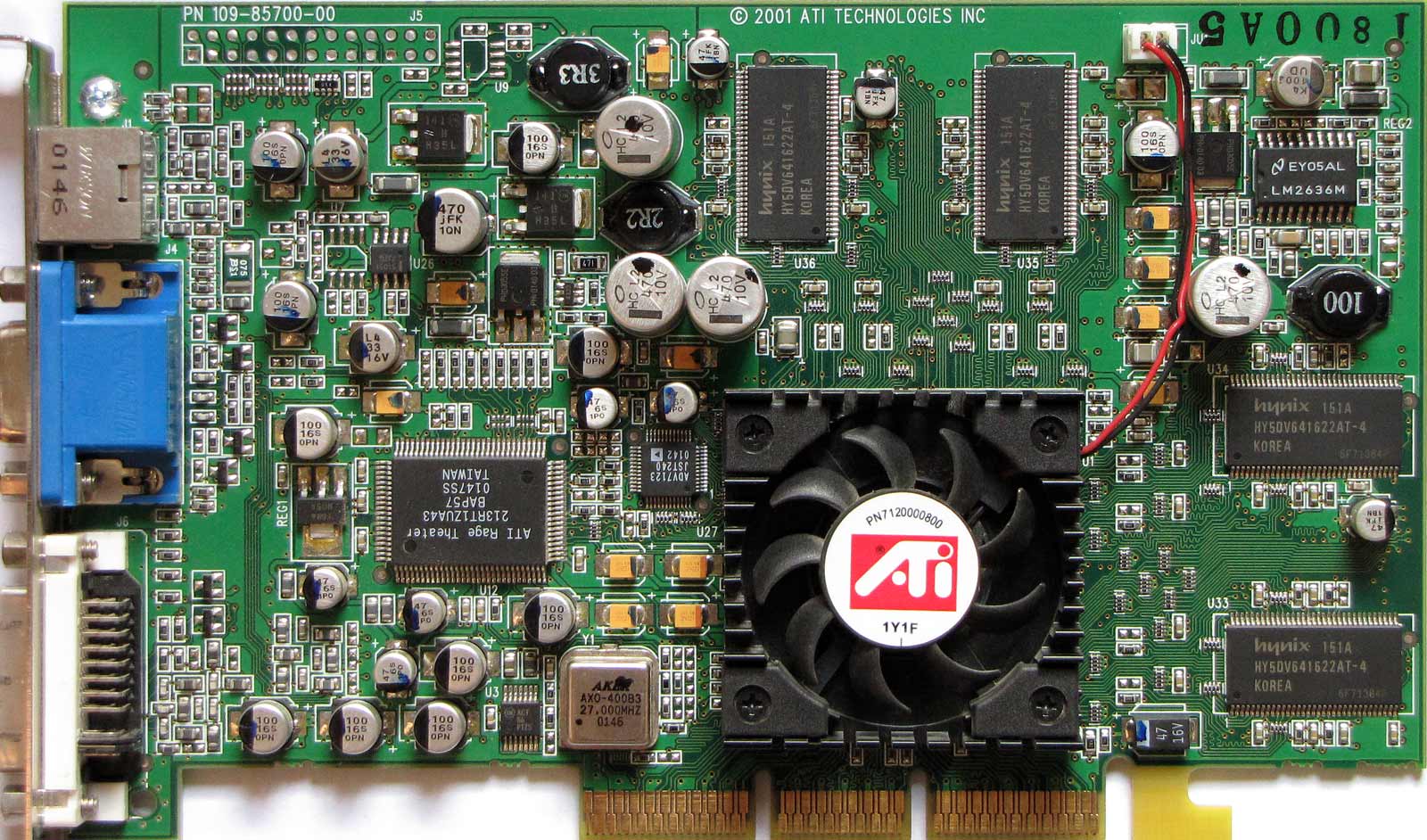

Vlask´s card:



ATI Radeon 8500LE
ATI Radeon 8500LE

ATI Radeon 8500LE

ATI Radeon 8500LE
ATI Radeon 8500LE

ATI Radeon 8500LE

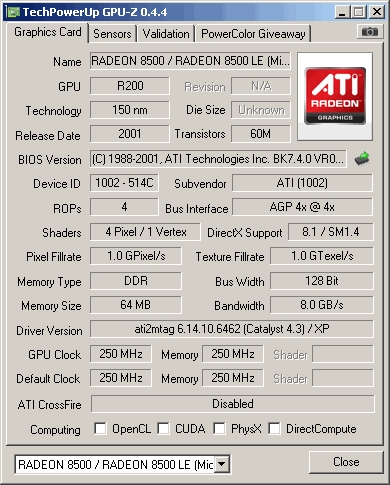

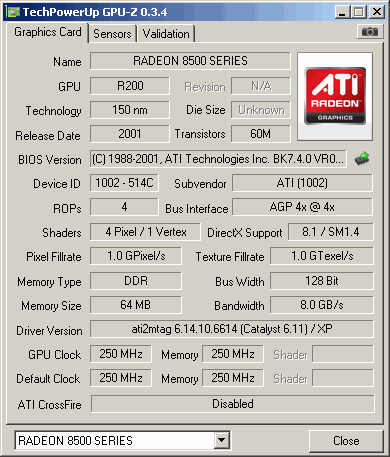

GPU-Z
GPU-Z

GPU-Z



GPU-Z, 3DMark 2000 and overclocking:



GPU-Z
GPU-Z

GPU-Z

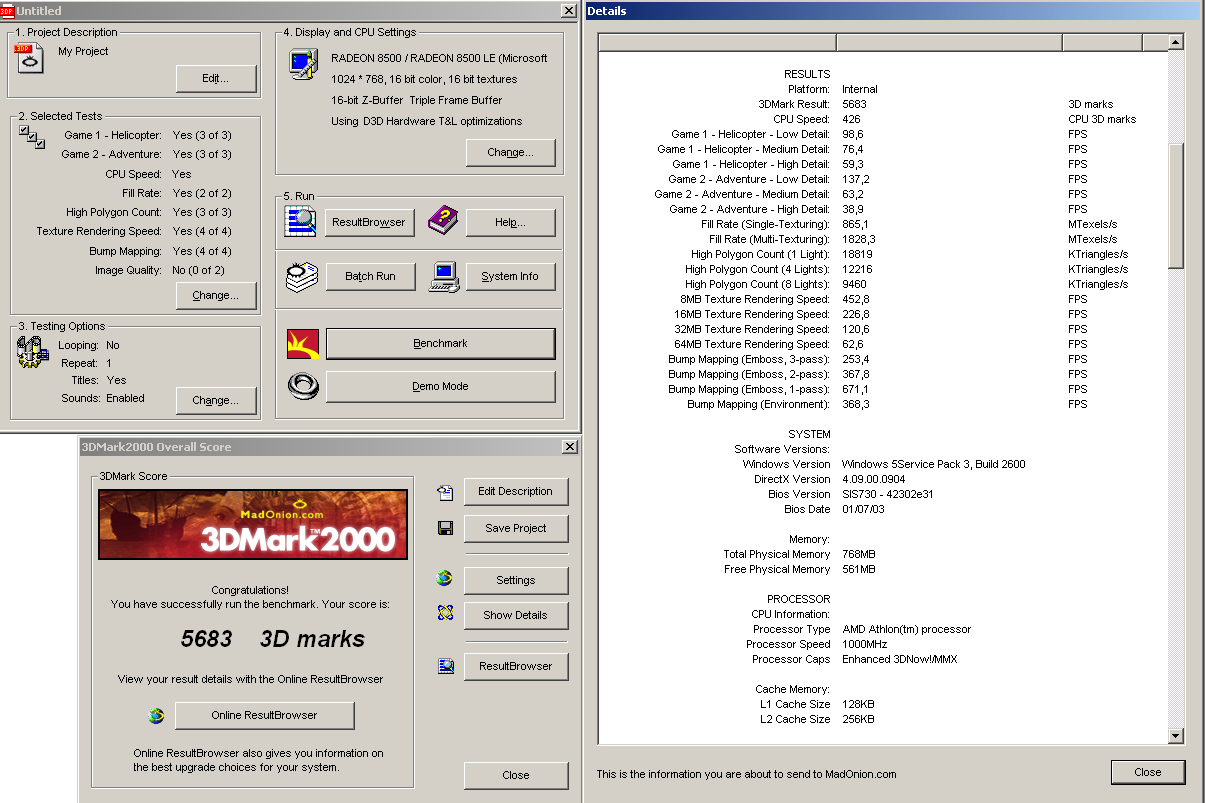

3DMark 2000
3DMark 2000

3DMark 2000

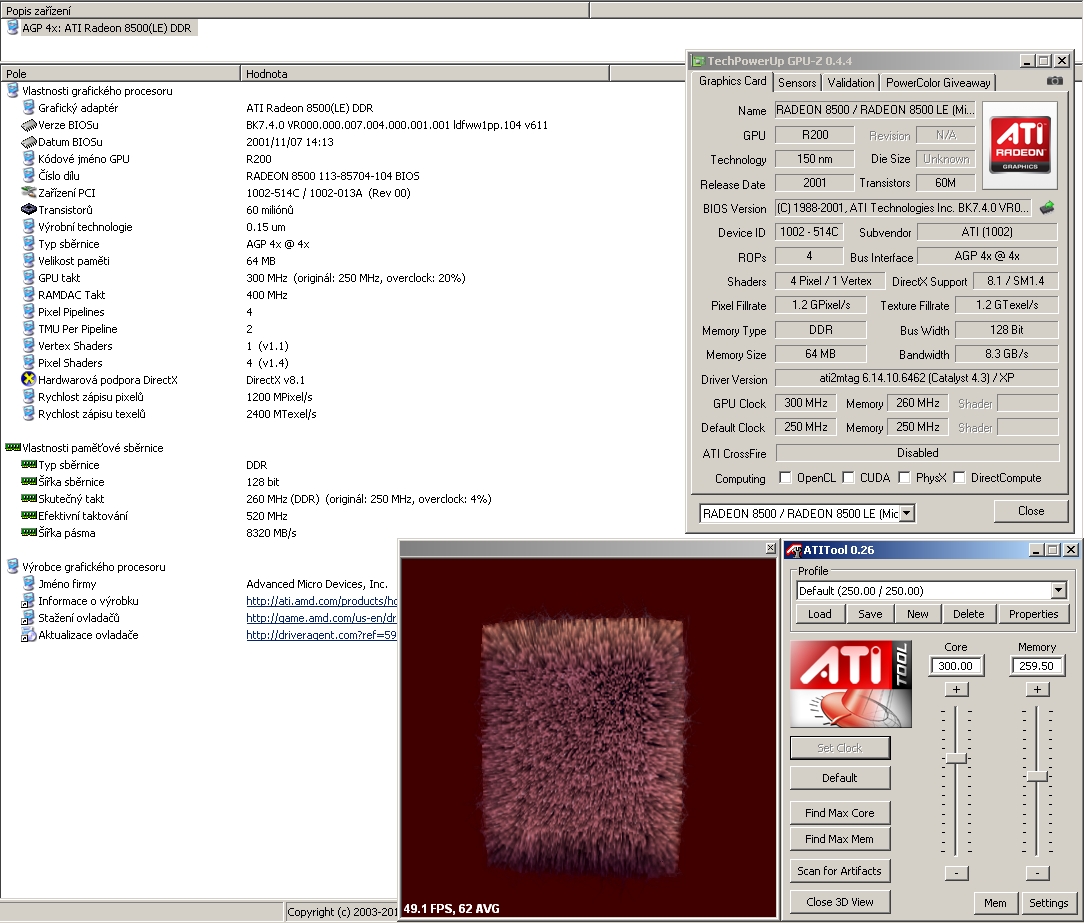

Overclocking
Overclocking

Overclocking

Additional Info

  • Made by: ATI
  • Codename: R200
  • Bus: AGP 4x
  • Memory Size: 64MB
  • Max Memory Size: 128MB
  • Memory Type: DDR
  • Year: 2001
  • Announce Date: Monday, 29 October 2001
  • Card Type: VGA
  • Family: Radeon
  • Manufacturer: TSMC
  • Process tech: 150nm
  • Transistors (Millions): 60
  • Made in: Taiwan
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub, DVI, S-Video
  • Power consumption (W): 23
  • Price $: 239
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX8.1
  • OpenGL: 1.3
  • Core Clock (MHz): 250
  • Core: 128bit
  • Memory Clock (MHz): 500
  • Memory Bus Width: 128bit
  • Memory Bandwidth (MB/s): 8000
  • Pixel Pipelines: 4
  • Texture Units: 8
  • Vertex Shaders: 1 (1.1)
  • Pixel Shaders: 4 (1.4)
  • Pixel Fillrate (MPixel/s): 1000
  • Texel Fillrate (MTexel/s): 2000
  • Triangle/Vertices Rate (M/s): 62.5
  • Sold by: ATI Hercules
  • Max Core Clock (MHz): 300
  • Min Core Clock (MHz): 250
  • Max Memory Clock (MHz): 600
  • Min Memory Clock (MHz): 476
  • Ramdac (MHz): 400
