ATI Radeon 9000

Written by
Rate this item
(1 Vote)

Mainstream card. GeForce4 MX440 killer.



Card is based on RV250 core, which is revised R200 without few texture units. Card supports 64 or 128MB RAM on 128-bit. Most cards are passivelly cooled. Card was launched along with highend Radeon 9700.

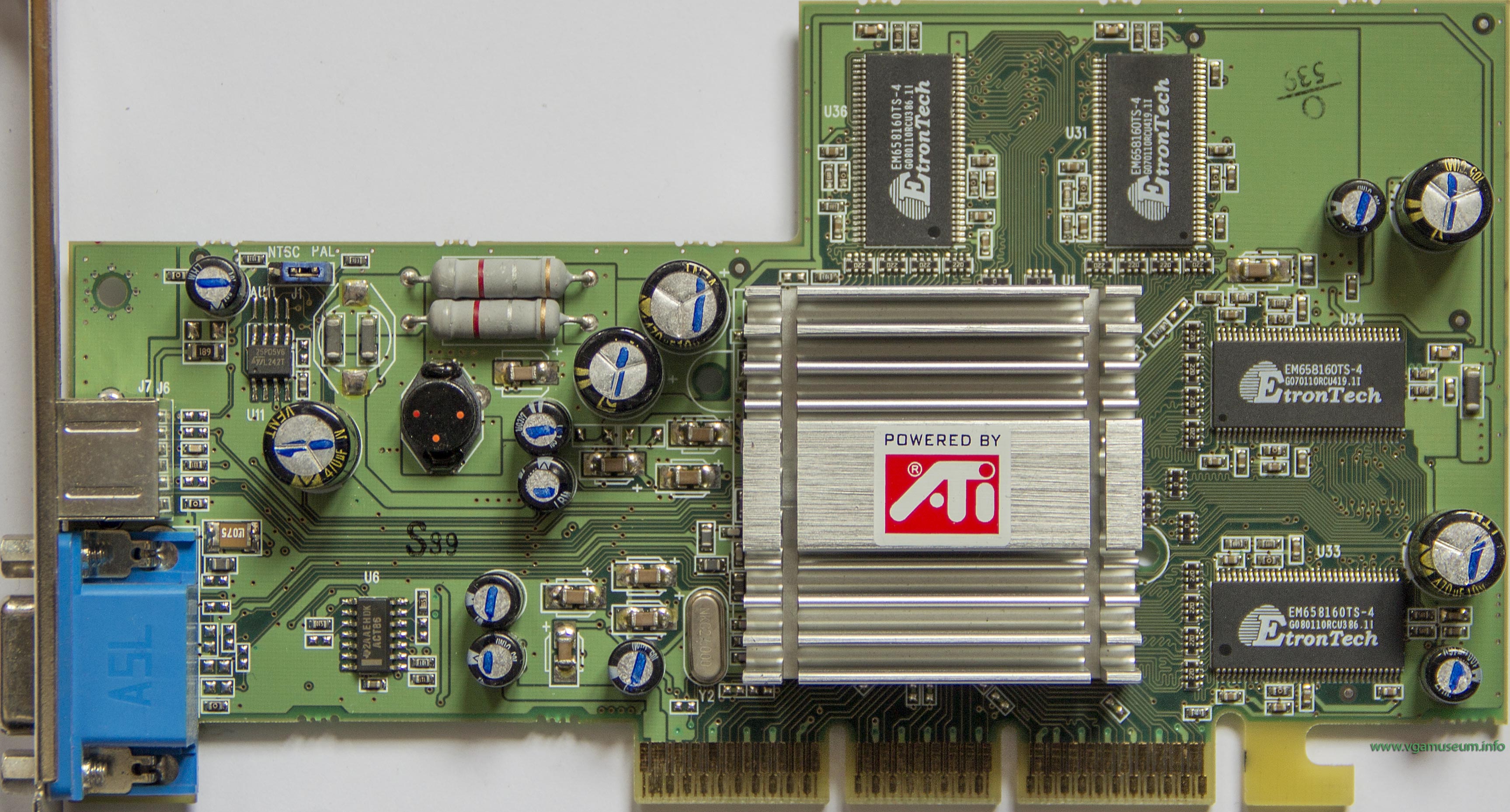

Sapphire Radeon 9000 VIVO - This is reference card.

(746) HERCULES 3D PROPHET 9000 PCI - This card has PCI bus and 128MB VRAM.

(400) All in Wonder Radeon 9000 - Classic All-In-Wonder card featuring DVI-I, analog TV tuner and S-Video inputs/outputs.



Zaatharen's cards:

Sapphire Radeon 9000 VIVO
Sapphire Radeon 9000 VIVO

Sapphire Radeon 9000 VIVO
Sapphire Radeon 9000 VIVO
Sapphire Radeon 9000 VIVO

Sapphire Radeon 9000 VIVO

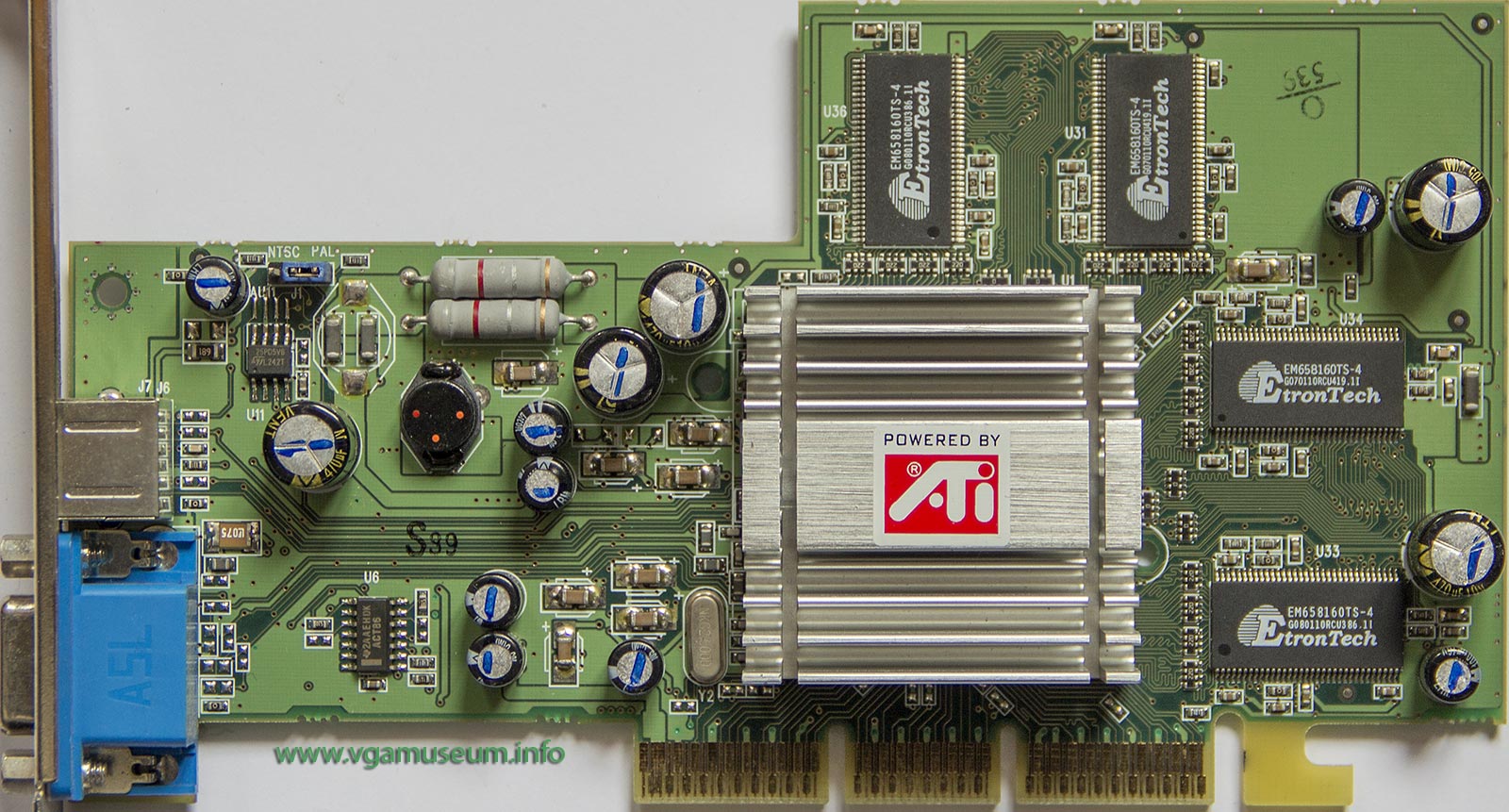

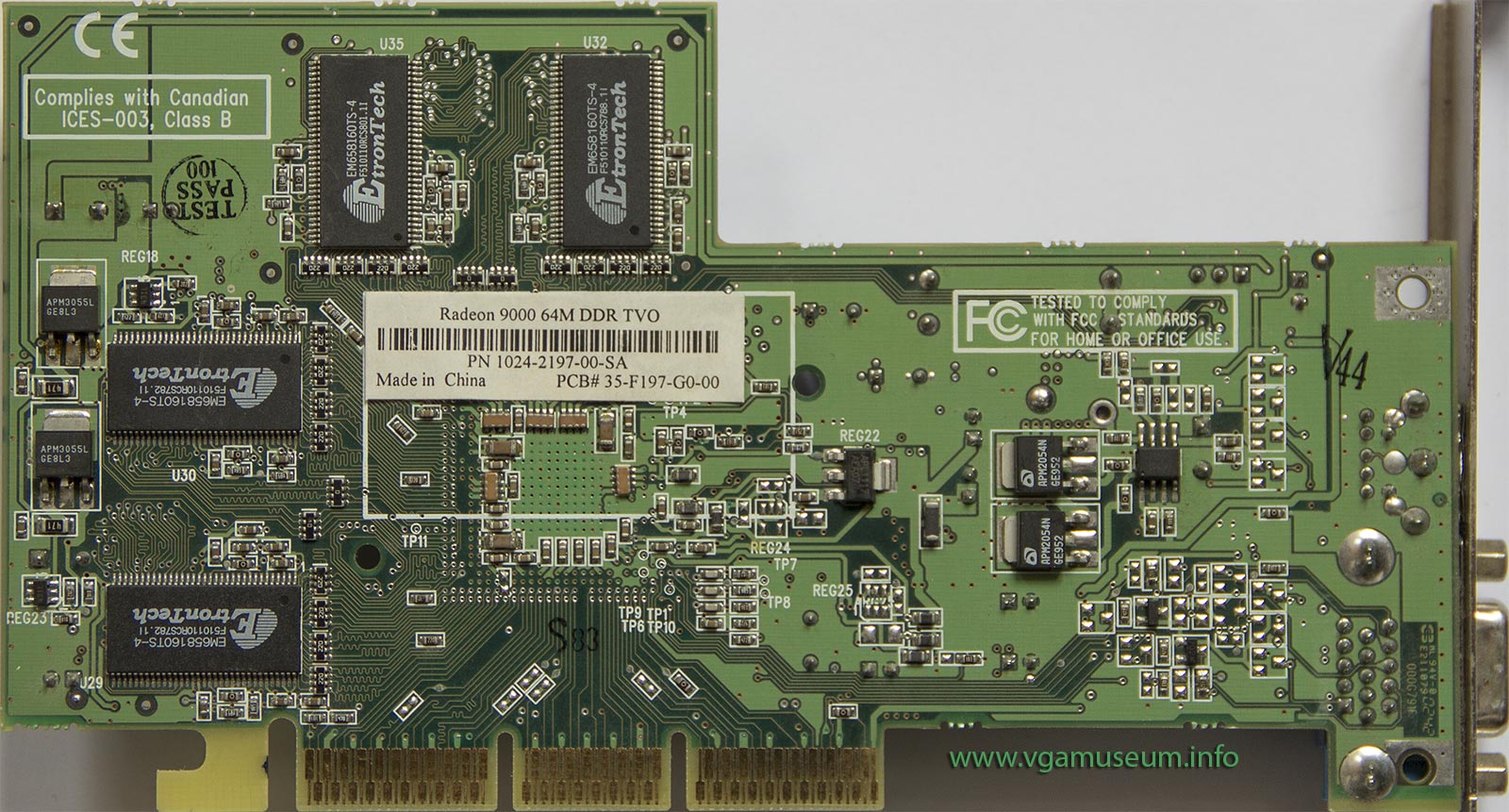

ATi Radeon 9000 TVO
ATi Radeon 9000 TVO

ATi Radeon 9000 TVO
ATi Radeon 9000 TVO
ATi Radeon 9000 TVO

ATi Radeon 9000 TVO



Palcal´s cards:

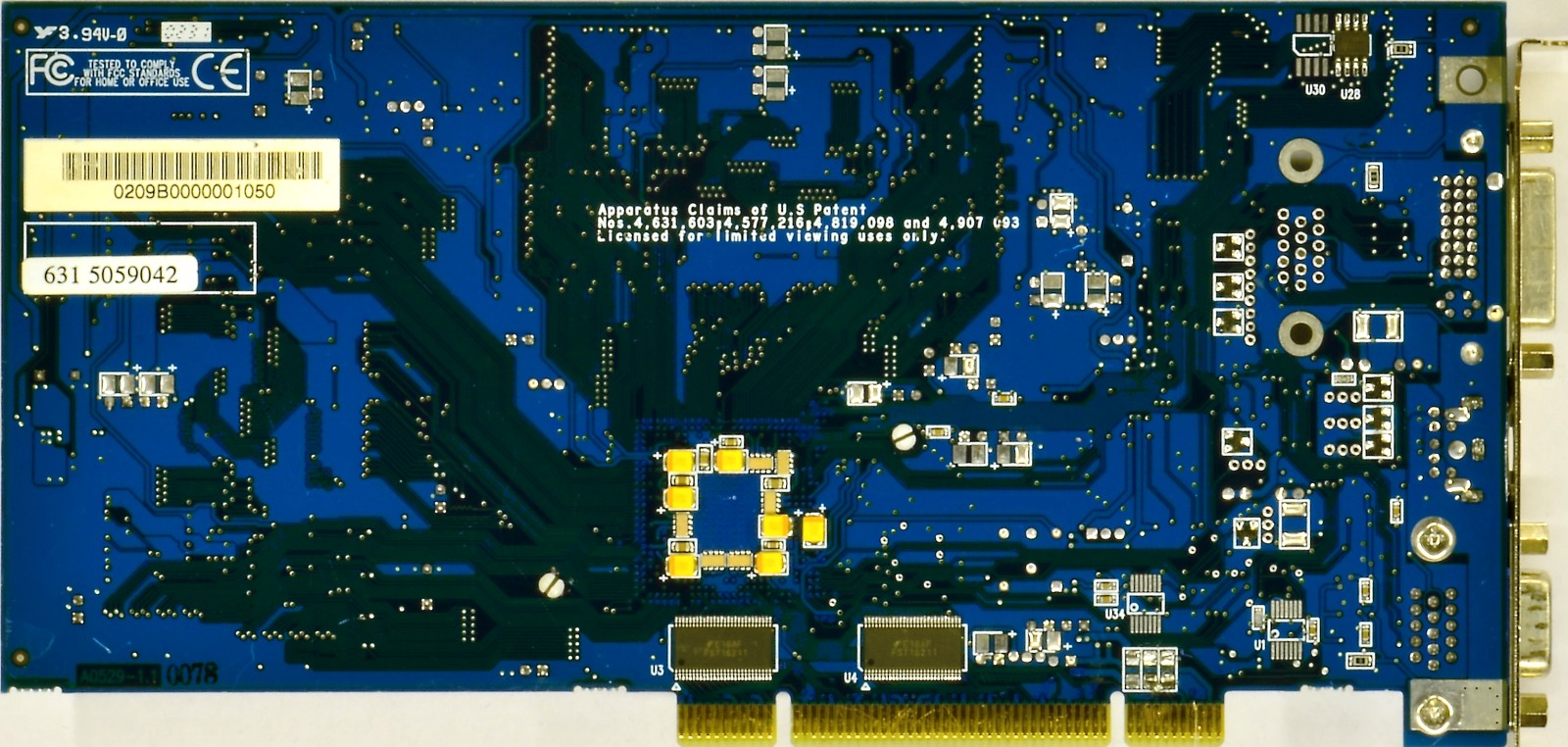

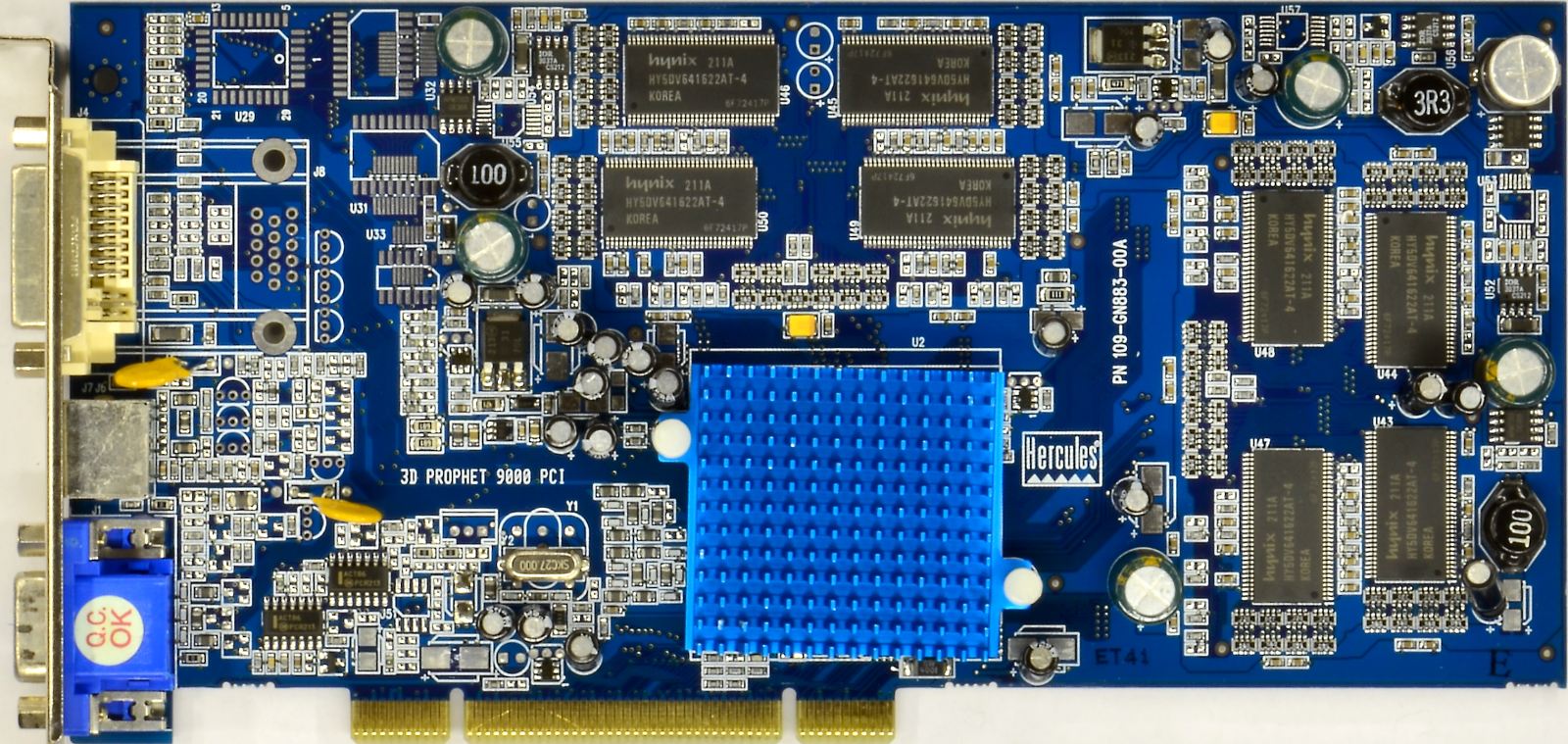

(746) HERCULES 3D PROPHET 9000 PCI
(746) HERCULES 3D PROPHET 9000 PCI

(746) HERCULES 3D PROPHET 9000 PCI
(746) HERCULES 3D PROPHET 9000 PCI
(746) HERCULES 3D PROPHET 9000 PCI

(746) HERCULES 3D PROPHET 9000 PCI
(746) HERCULES 3D PROPHET 9000 PCI
(746) HERCULES 3D PROPHET 9000 PCI

(746) HERCULES 3D PROPHET 9000 PCI

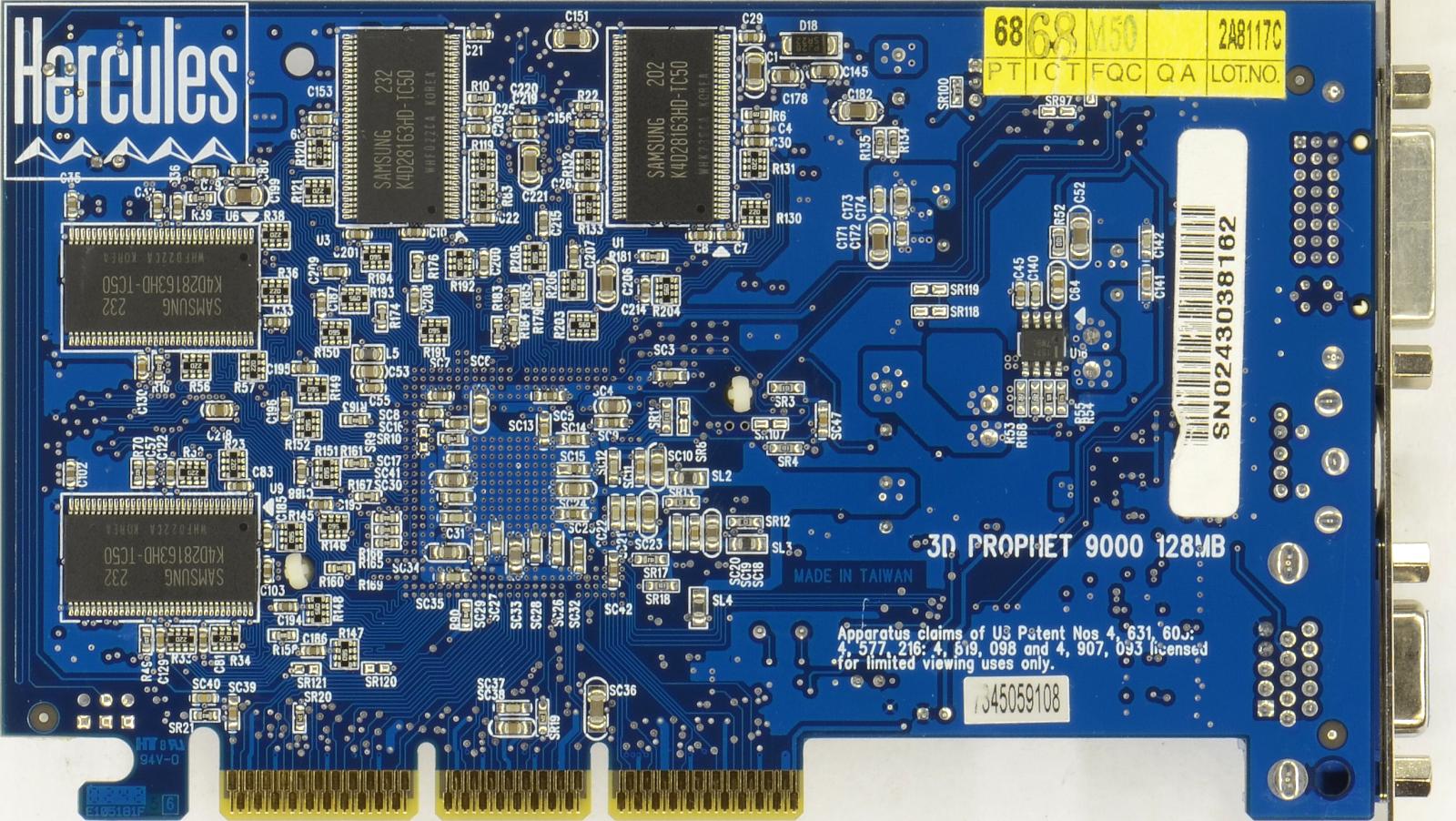

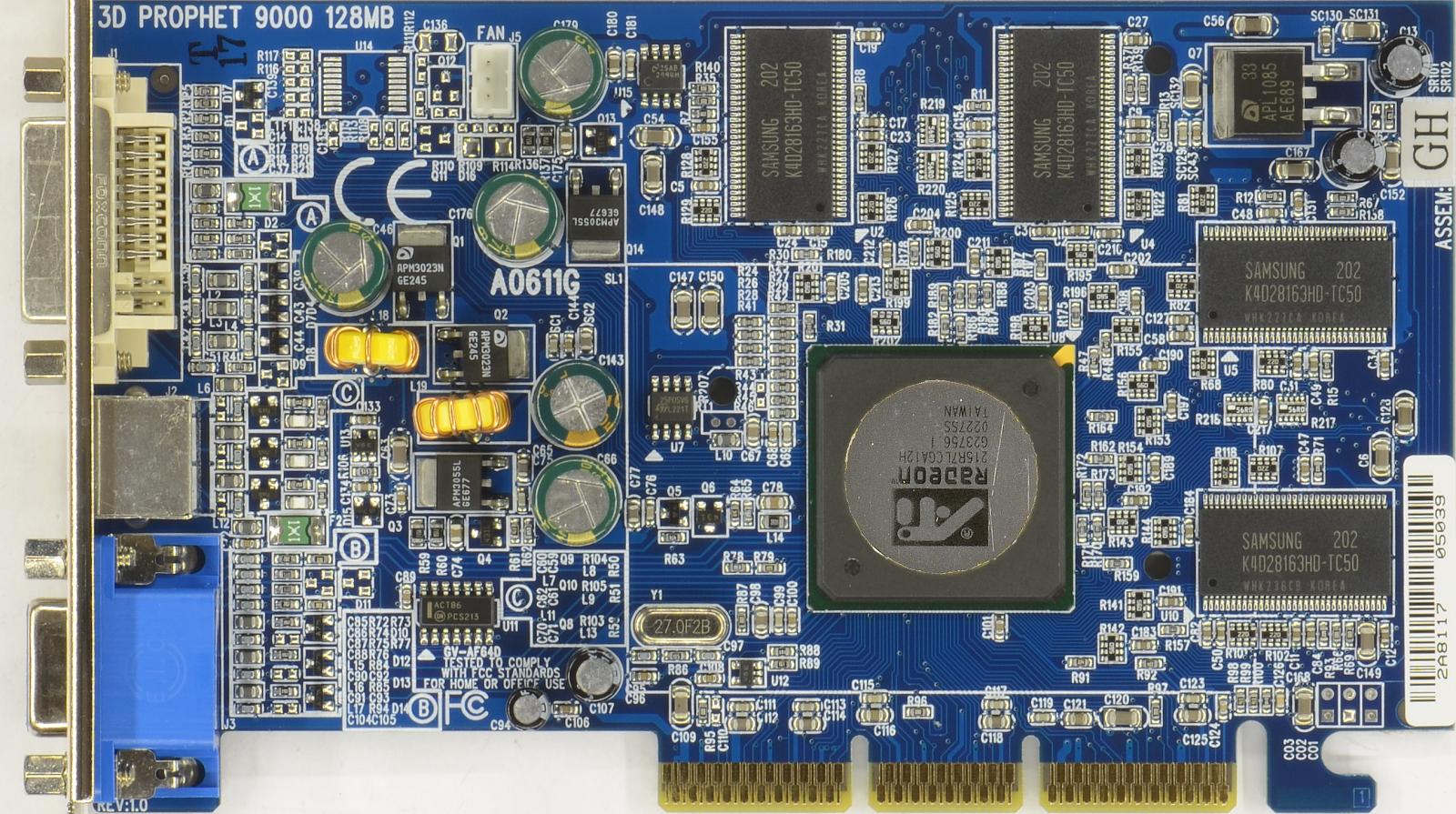

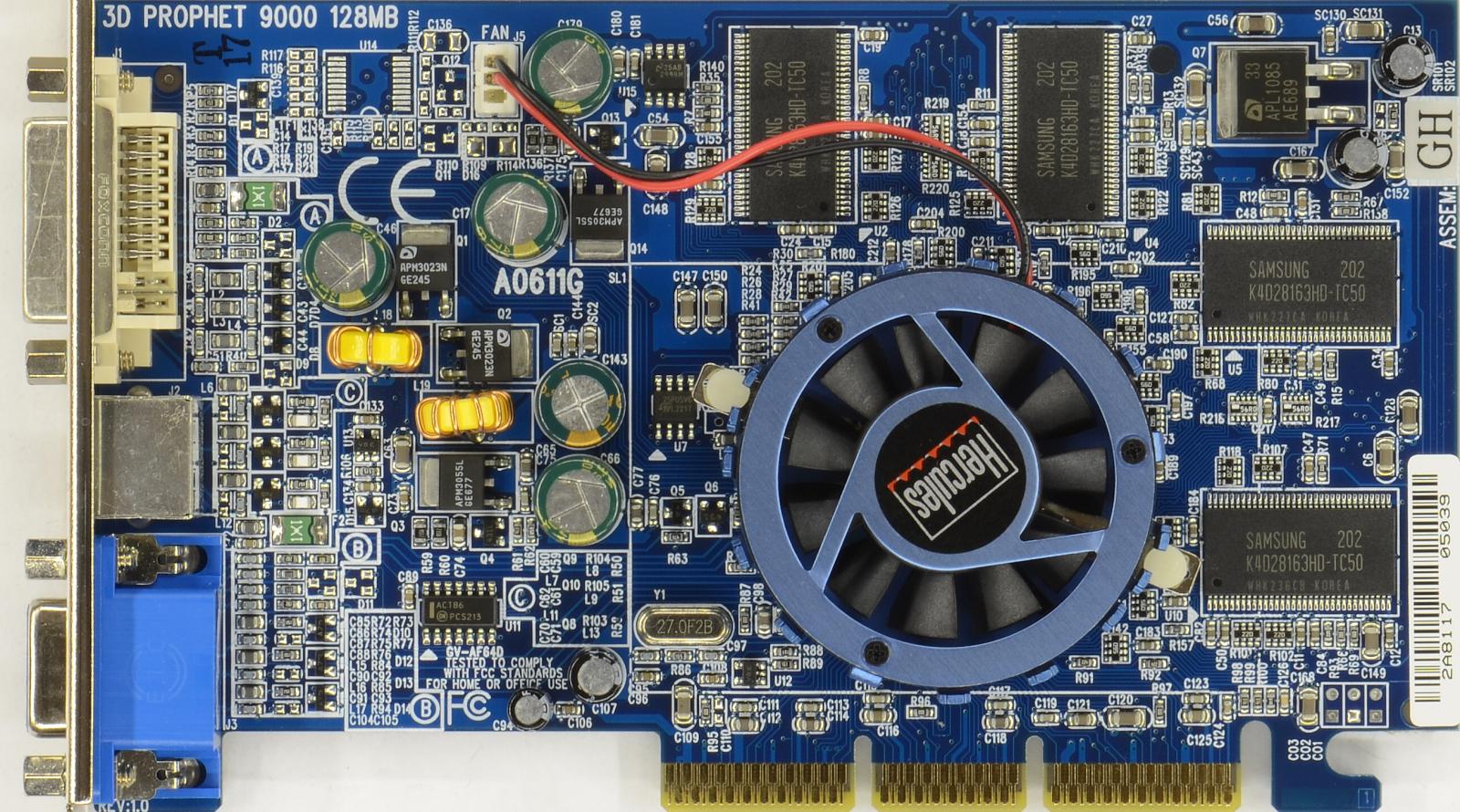

(804) HERCULES 3D PROPHET 9000 128MB
(804) HERCULES 3D PROPHET 9000 128MB

(804) HERCULES 3D PROPHET 9000 128MB
(804) HERCULES 3D PROPHET 9000 128MB
(804) HERCULES 3D PROPHET 9000 128MB

(804) HERCULES 3D PROPHET 9000 128MB
(804) HERCULES 3D PROPHET 9000 128MB
(804) HERCULES 3D PROPHET 9000 128MB

(804) HERCULES 3D PROPHET 9000 128MB

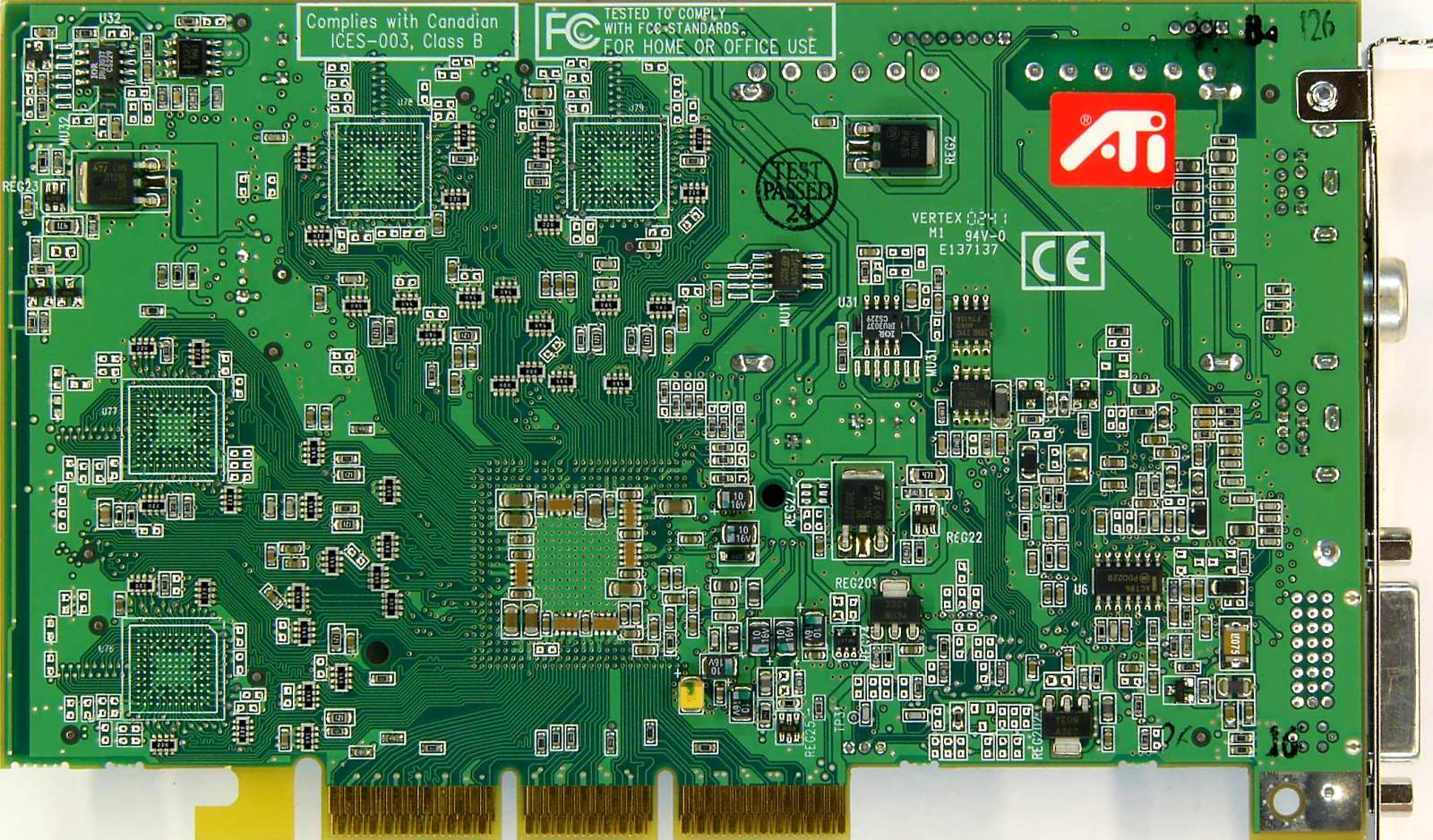

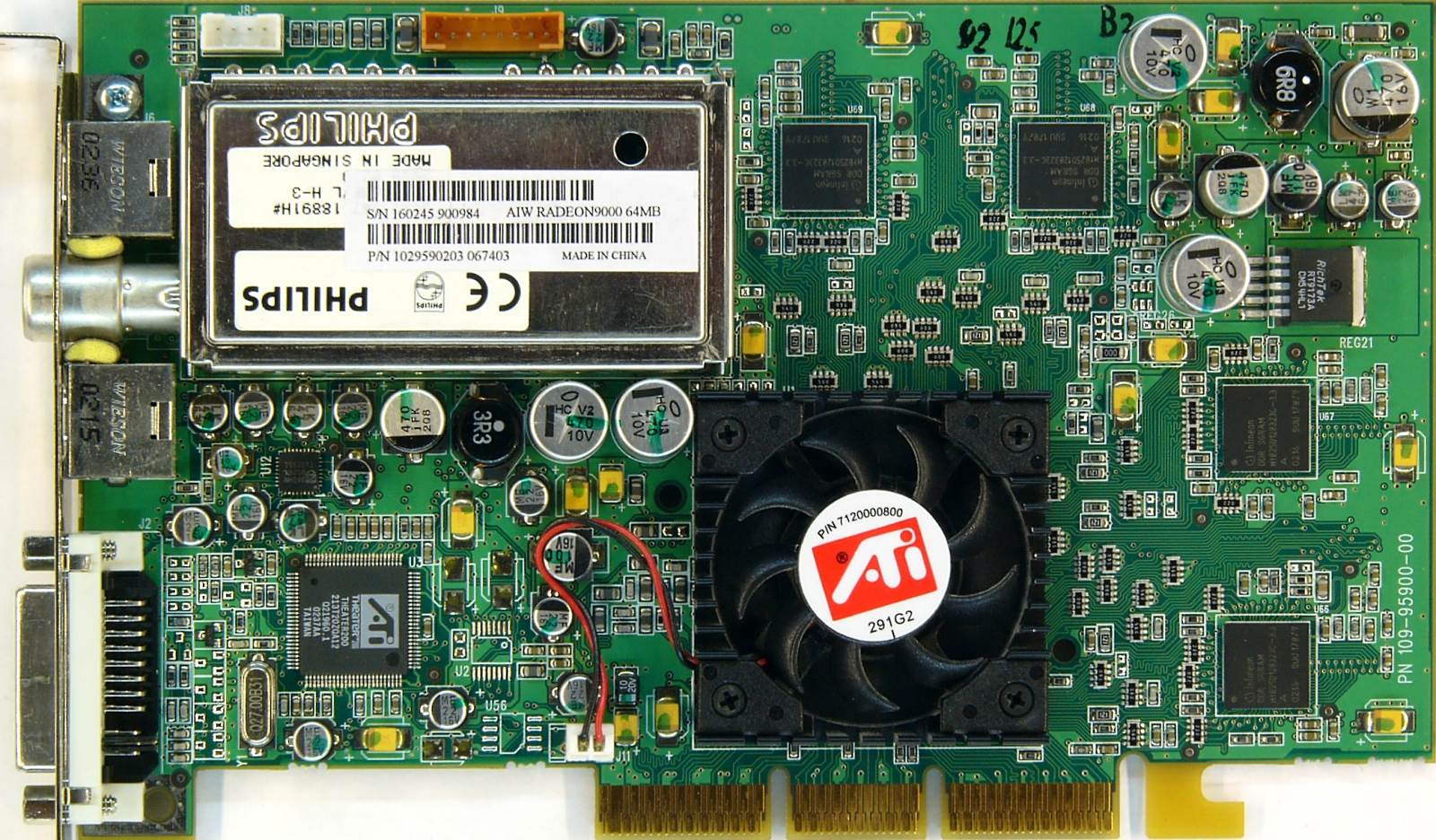

(400) All in Wonder Radeon 9000
(400) All in Wonder Radeon 9000

(400) All in Wonder Radeon 9000
(400) All in Wonder Radeon 9000
(400) All in Wonder Radeon 9000

(400) All in Wonder Radeon 9000





Vlask's card:

Sapphire Radeon 9000 Atlantis
Sapphire Radeon 9000 Atlantis

Sapphire Radeon 9000 Atlantis
Sapphire Radeon 9000 Atlantis
Sapphire Radeon 9000 Atlantis

Sapphire Radeon 9000 Atlantis
Sapphire Radeon 9000 Atlantis HQ
Sapphire Radeon 9000 Atlantis HQ

Sapphire Radeon 9000 Atlantis HQ
Sapphire Radeon 9000 Atlantis HQ
Sapphire Radeon 9000 Atlantis HQ

Sapphire Radeon 9000 Atlantis HQ

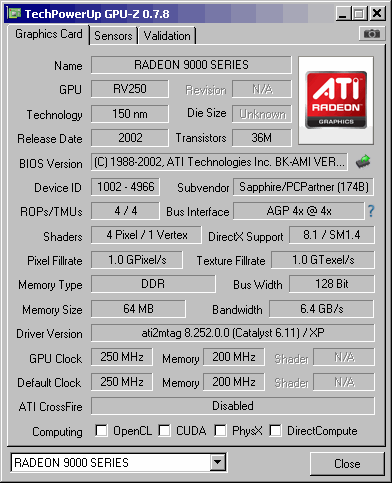

GPUZ
GPUZ

GPUZ

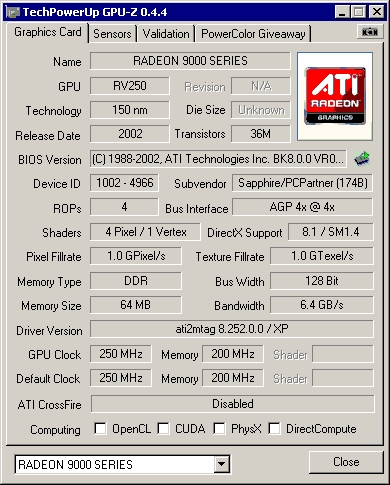

GPU-Z and 3DMark 2000:

GPU-Z
GPU-Z

GPU-Z

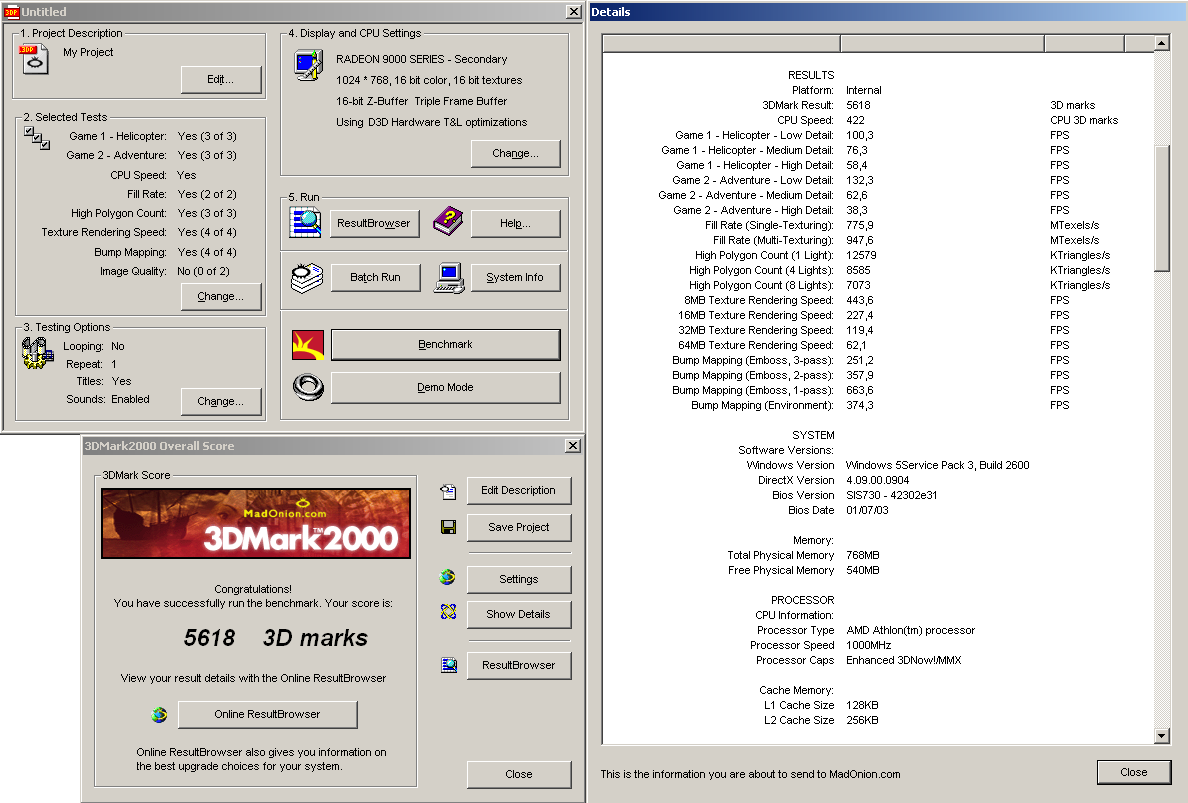

3DMark 2000
3DMark 2000

3DMark 2000

Additional Info

  • Made by: ATI
  • Codename: RV250
  • Bus: PCI, AGP 4x
  • Memory Size: 64MB, 128MB
  • Max Memory Size: 128MB
  • Memory Type: DDR
  • Year: 2002
  • Announce Date: Thursday, 18 July 2002
  • Card Type: VGA
  • Family: Radeon 9x
  • Manufacturer: TSMC
  • Process tech: 150nm
  • Transistors (Millions): 36
  • Made in: Taiwan
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub, DVI, S-Video, VIVO
  • Power consumption (W): 28
  • Price $: 109
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX8.1
  • OpenGL: 1.3
  • Core Clock (MHz): 250
  • Core: 128bit
  • Memory Clock (MHz): 400
  • Memory Bus Width: 128bit
  • Memory Bandwidth (MB/s): 6400
  • Pixel Pipelines: 4
  • Texture Units: 4
  • Vertex Shaders: 1 (1.1)
  • Pixel Shaders: 4 (1.4)
  • Pixel Fillrate (MPixel/s): 1000
  • Texel Fillrate (MTexel/s): 1000
  • Sold by: ATI Sapphire Hercules
  • Max Core Clock (MHz): 275
  • Min Core Clock (MHz): 200
  • Max Memory Clock (MHz): 550
  • Min Memory Clock (MHz): 400
  • Ramdac (MHz): 400
