ATI Radeon 9100

Written by
Rate this item
(0 votes)

Renamed Radeon 8500LE, later sold as entry-level card



Card is based on R200 core, having mostly 64MB memory on 64-bit or 128-bit bus. Later 128MB cards were on market. Card is basically renamed Radeon 8500LE, a lot of cards have only 64-bit memory bus though.



Zaatharen's cards:

ATi Radeon 9100 V/D/VO - Card has 64-bit memory bus and memory clocked to 460MHz effectively. GPU is running on 250MHz.

Super Grace Radeon 9100 - This card has 128-bit memory bus, therefore 8GB/s memory bandwith and 250MHz on GPU.

Club3D CGA-9328TVD - This card has 128-bit memory bus, therefore 8GB/s memory bandwith and 250MHz on GPU. It has 128MB DDR 500MHz VRAM.

ATi Radeon 9100 V/D/VO
ATi Radeon 9100 V/D/VO

ATi Radeon 9100 V/D/VO

ATi Radeon 9100 V/D/VO
ATi Radeon 9100 V/D/VO

ATi Radeon 9100 V/D/VO

Super Grace Radeon 9100
Super Grace Radeon 9100

Super Grace Radeon 9100
Super Grace Radeon 9100
Super Grace Radeon 9100

Super Grace Radeon 9100
Super Grace Radeon 9100
Super Grace Radeon 9100

Super Grace Radeon 9100

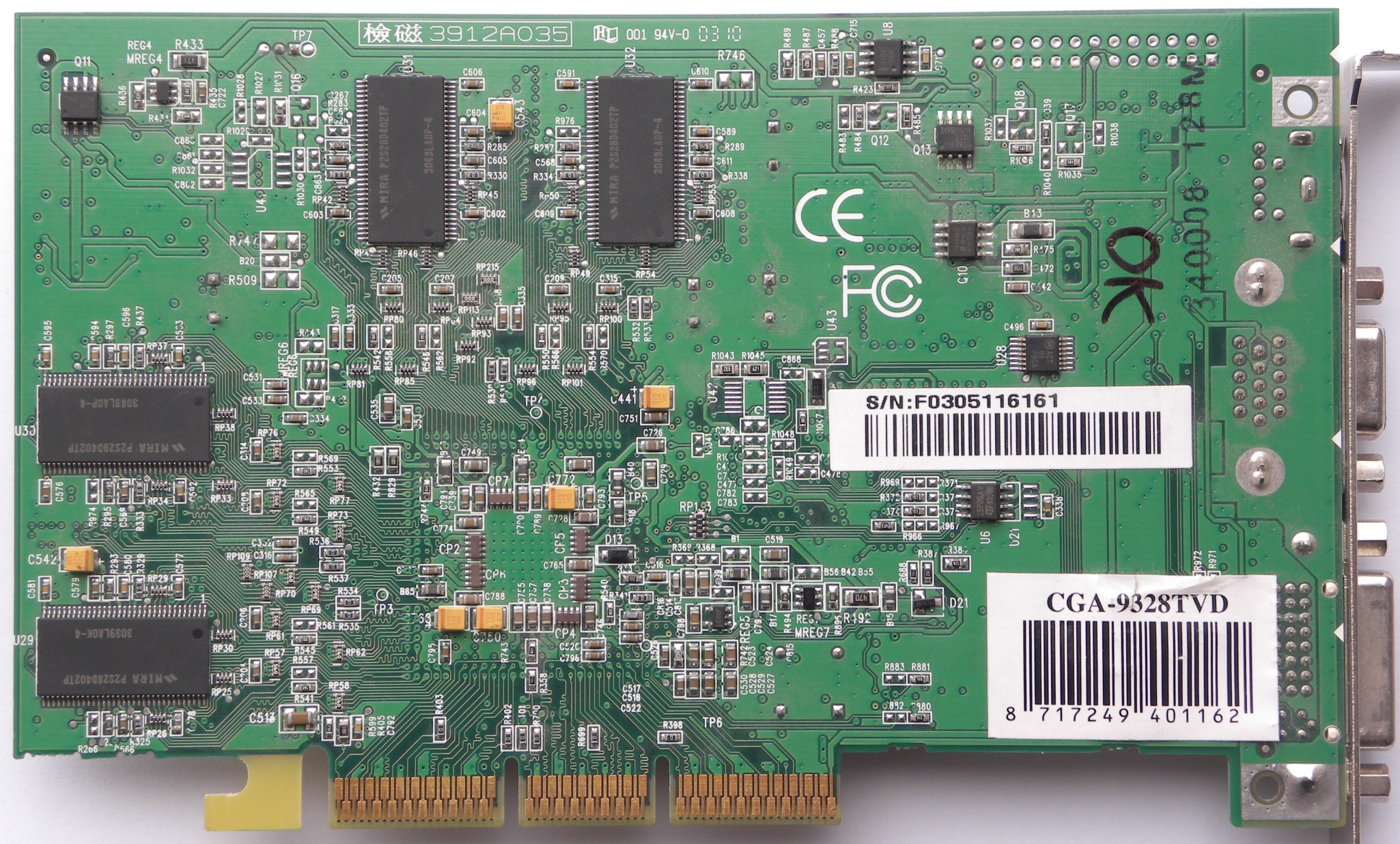

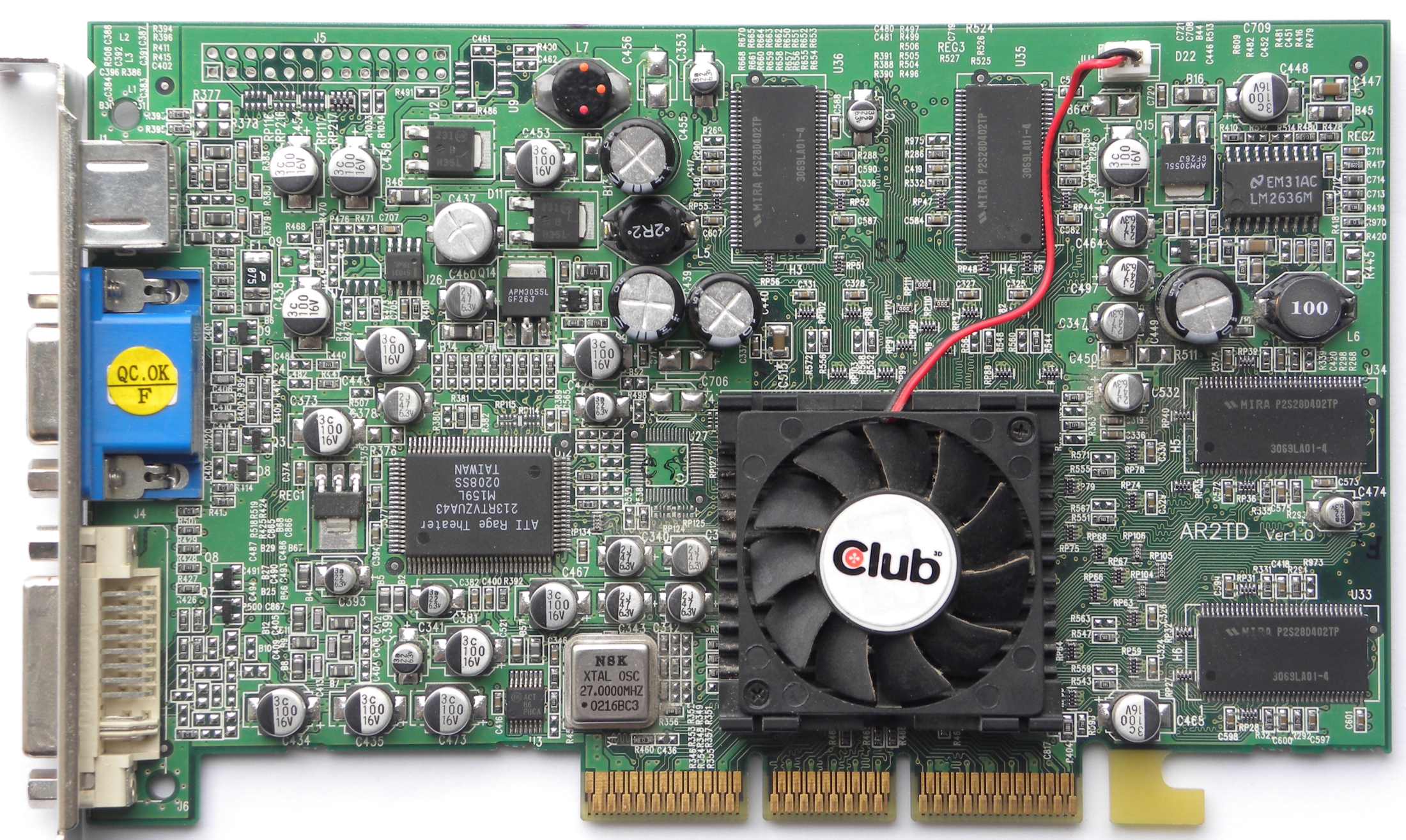

Club3D CGA-9328TVD
Club3D CGA-9328TVD

Club3D CGA-9328TVD
Club3D CGA-9328TVD
Club3D CGA-9328TVD

Club3D CGA-9328TVD

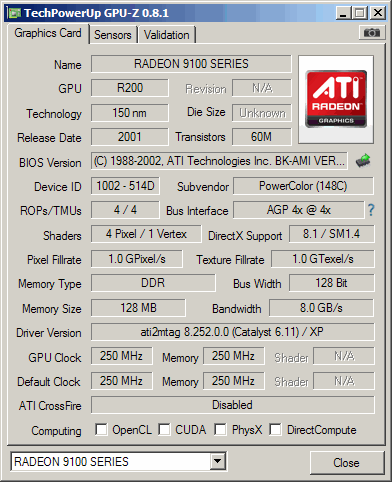

Club3D GPU-Z
Club3D GPU-Z

Club3D GPU-Z

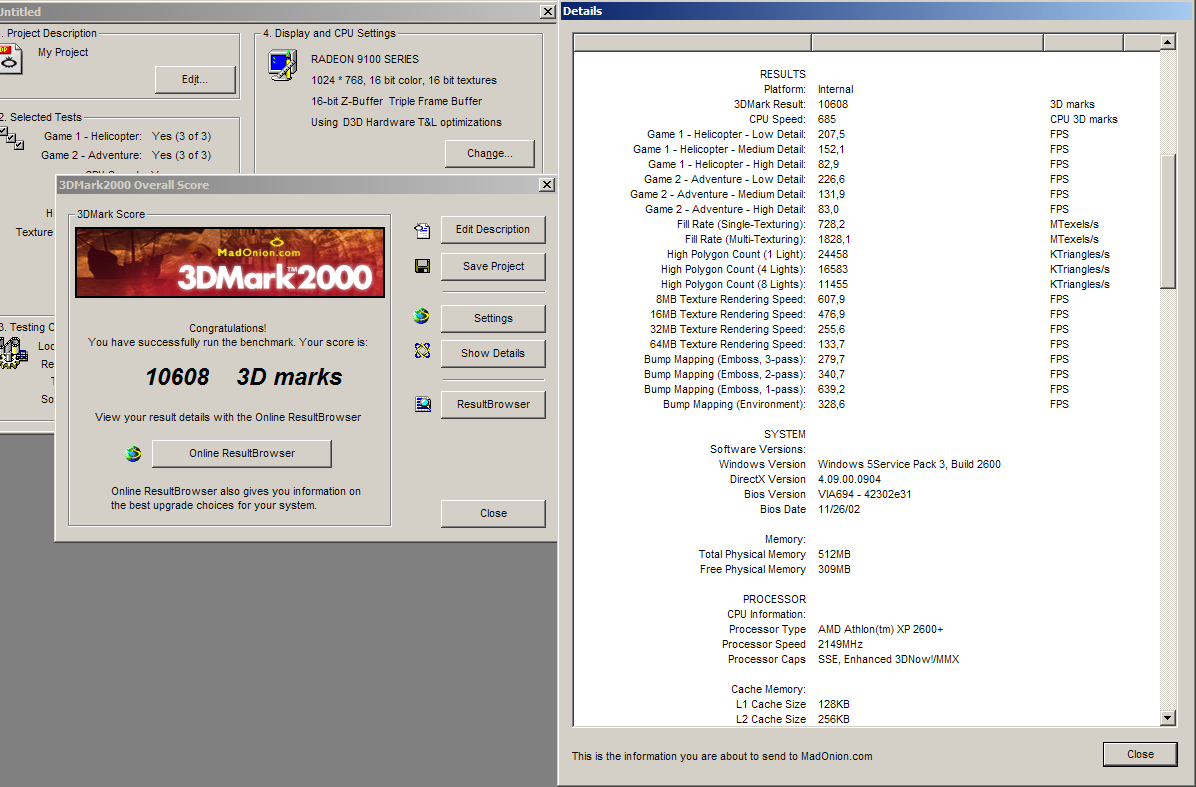

3DMark 2000
3DMark 2000

3DMark 2000

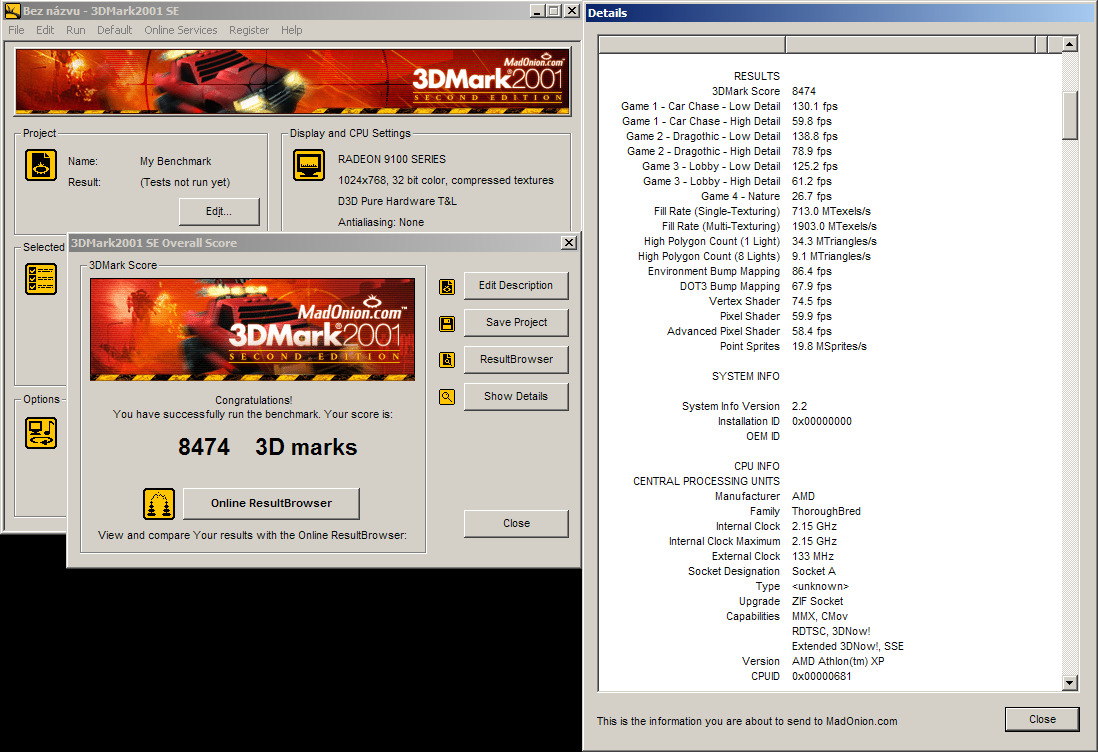

3DMark 2001 SE
3DMark 2001 SE

3DMark 2001 SE




Vlask's card:

Club3D AR2L-B3 - 64MB DDR 128bit underclocked to 368MHz.

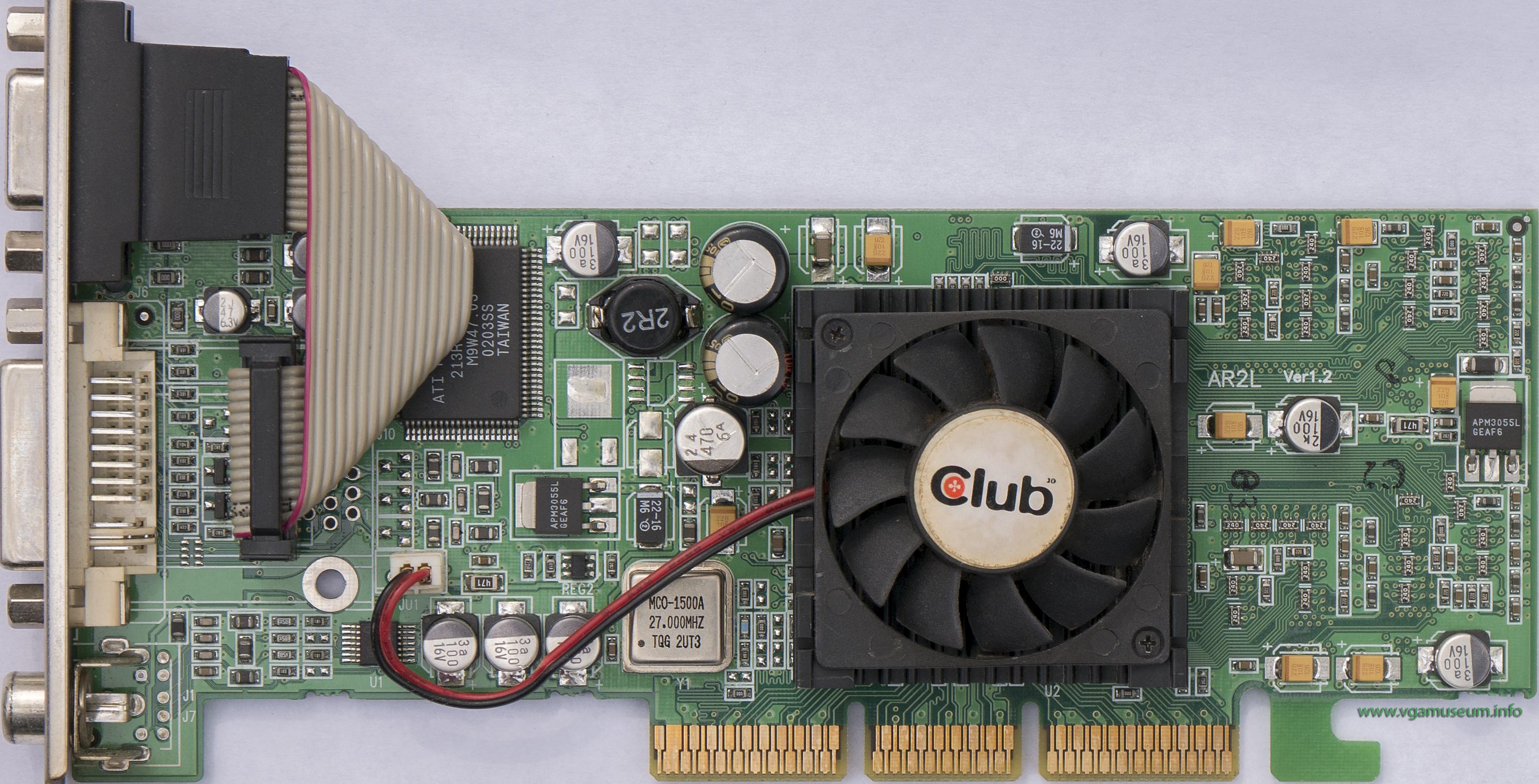

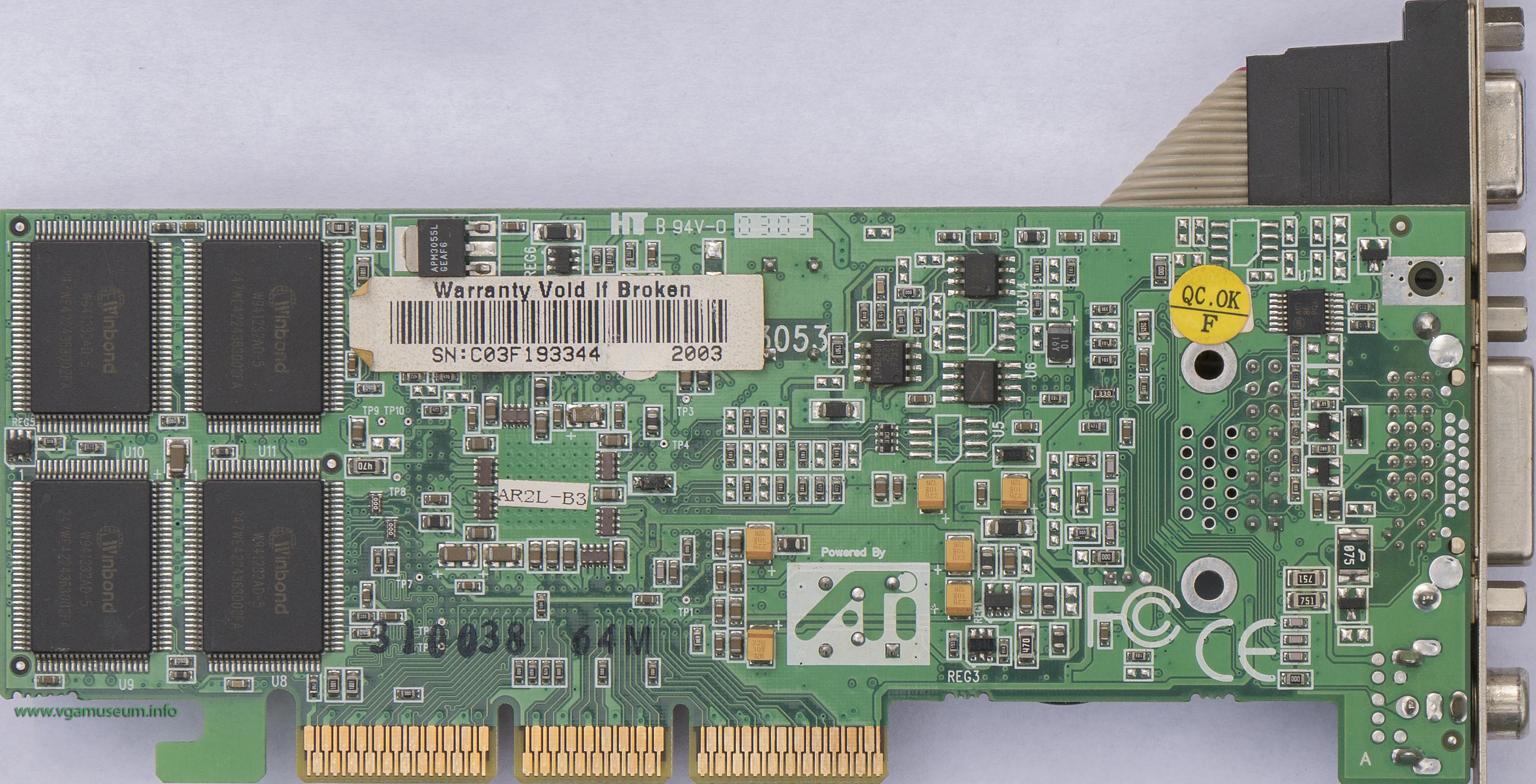

Club3D AR2L-B3
Club3D AR2L-B3

Club3D AR2L-B3

Club3D AR2L-B3
Club3D AR2L-B3

Club3D AR2L-B3

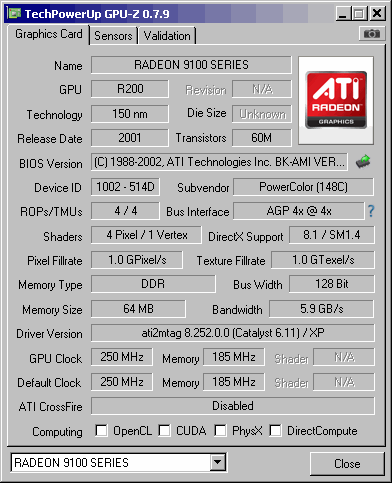

Club3D GPUZ
Club3D GPUZ

Club3D GPUZ



Palcal´s card:

(35) Sapphire 64M DDR V/D/VO
(35) Sapphire 64M DDR V/D/VO

(35) Sapphire 64M DDR V/D/VO

(35) Sapphire 64M DDR V/D/VO
(35) Sapphire 64M DDR V/D/VO

(35) Sapphire 64M DDR V/D/VO

(35) Sapphire 64M DDR V/D/VO
(35) Sapphire 64M DDR V/D/VO

(35) Sapphire 64M DDR V/D/VO

Additional Info

  • Made by: ATI
  • Codename: R200
  • Bus: AGP 4x
  • Memory Size: 64MB
  • Max Memory Size: 128MB
  • Memory Type: DDR
  • Year: 2002
  • Announce Date: Thursday, 10 October 2002
  • Card Type: VGA
  • Family: Radeon 9x
  • Manufacturer: TSMC
  • Process tech: 150nm
  • Transistors (Millions): 60
  • Made in: Taiwan
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub, DVI, RCA/CINCH, S-Video
  • Power consumption (W): 23
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX8.1
  • OpenGL: 1.3
  • Core Clock (MHz): 250
  • Core: 128bit
  • Memory Clock (MHz): 500
  • Memory Bus Width: 64bit, 128bit
  • Memory Bandwidth (MB/s): 4000
  • Pixel Pipelines: 4
  • Texture Units: 8
  • Vertex Shaders: 2 (1.1)
  • Pixel Shaders: 4 (1.4)
  • Pixel Fillrate (MPixel/s): 1000
  • Texel Fillrate (MTexel/s): 2000
  • Triangle/Vertices Rate (M/s): 62.5
  • Sold by: ATI Sapphire Super Grace Club3D
  • Max Core Clock (MHz): 275
  • Min Core Clock (MHz): 230
  • Max Memory Clock (MHz): 550
  • Min Memory Clock (MHz): 368
  • Ramdac (MHz): 400
