Monday, 16 June 2014 00:00

ATI 3D Rage Pro PCI

Written by
Rate this item
(1 Vote)

Improved Ramdac, DVD acceleration (enhanced motion compensation), added texture compositing and vector quantization compression.



Prices: Xpert@Work 8MB - $220, Xpert@Play 8MB - $240, All-In-Wonder Pro 4MB - $280

Palcal's cards:

(826) ATi 3D Charger 4MB
(826) ATi 3D Charger 4MB

(826) ATi 3D Charger 4MB

(826) ATi 3D Charger 4MB
(826) ATi 3D Charger 4MB

(826) ATi 3D Charger 4MB

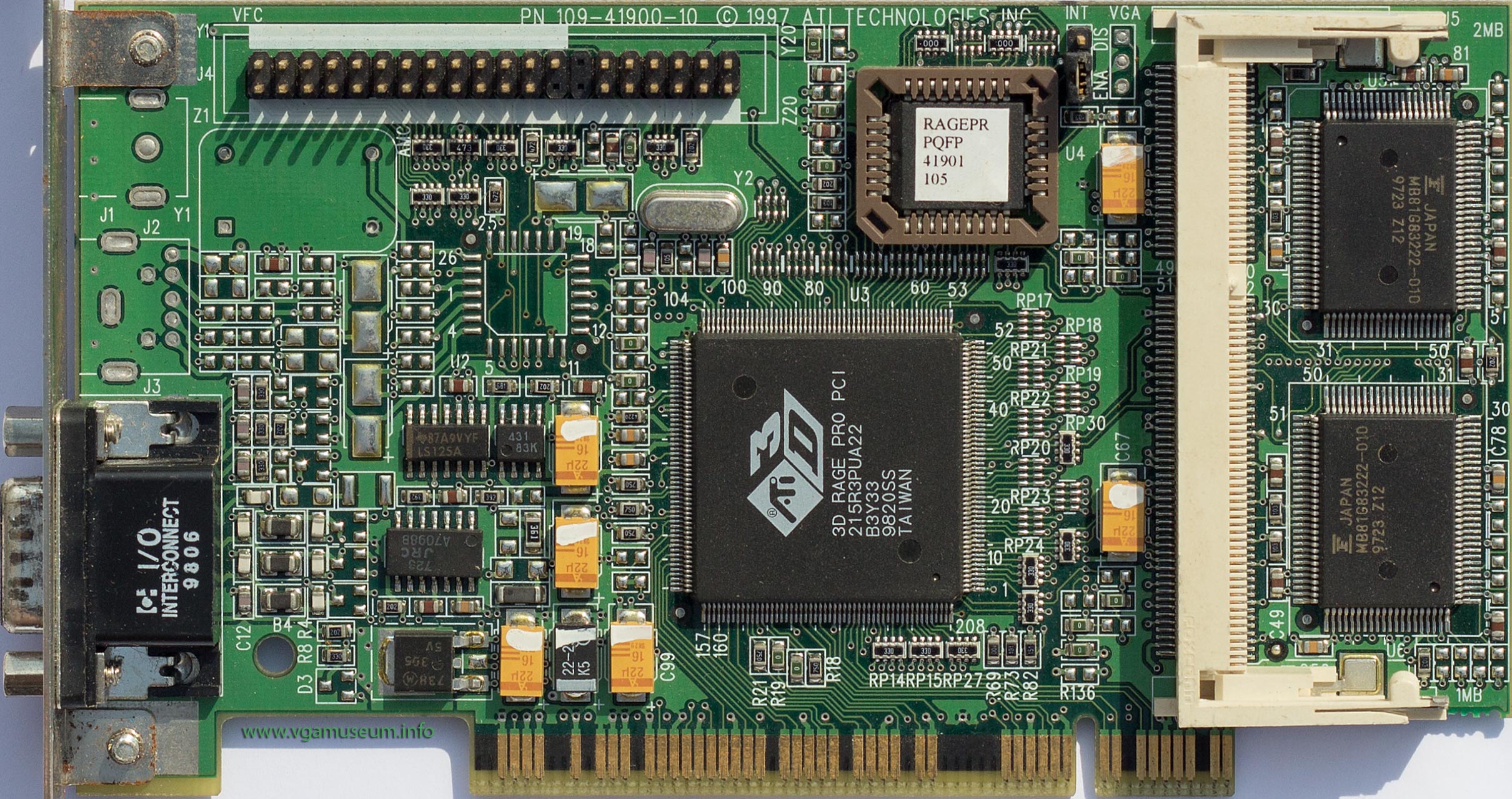

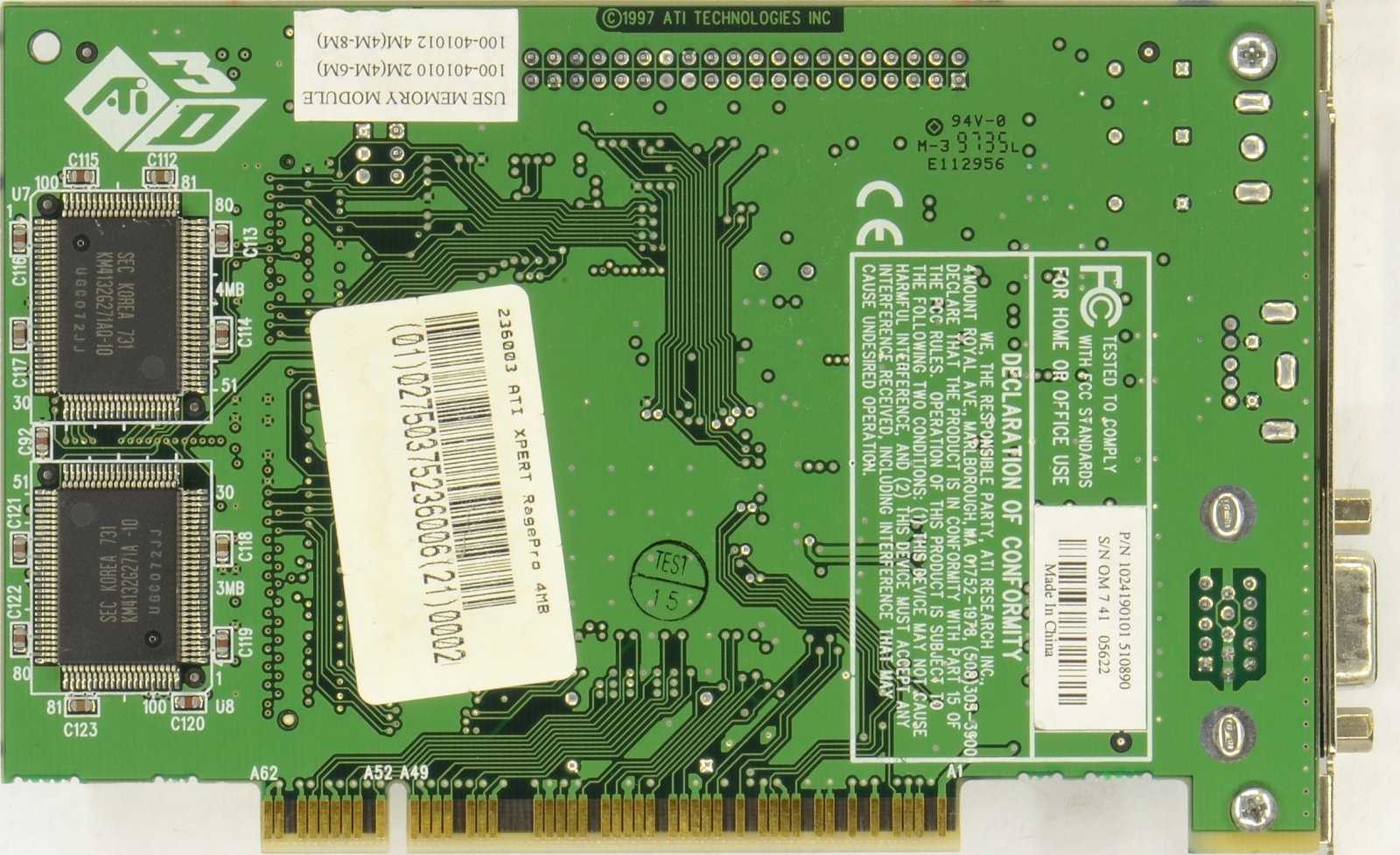

(789) ATi Xpert@Work
(789) ATi Xpert@Work

(789) ATi Xpert@Work

(789) ATi Xpert@Work
(789) ATi Xpert@Work

(789) ATi Xpert@Work

ATi Xpert@Play 8MB
ATi Xpert@Play 8MB

ATi Xpert@Play 8MB

ATi Xpert@Play 8MB
ATi Xpert@Play 8MB

ATi Xpert@Play 8MB

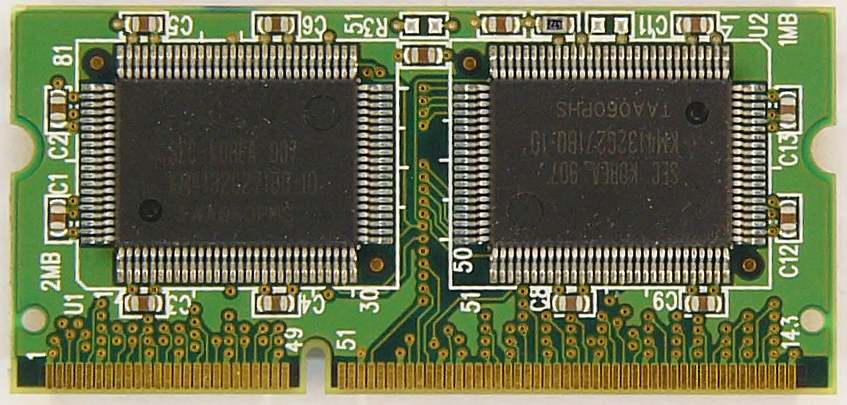

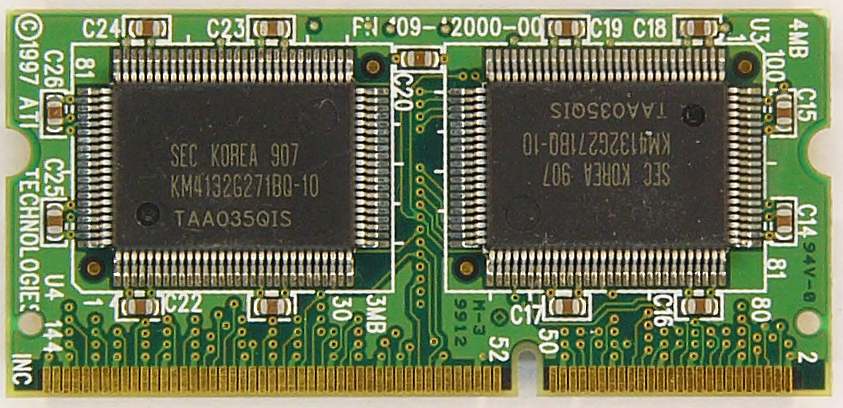

4MB memory module
4MB memory module

4MB memory module

4MB memory module
4MB memory module

4MB memory module

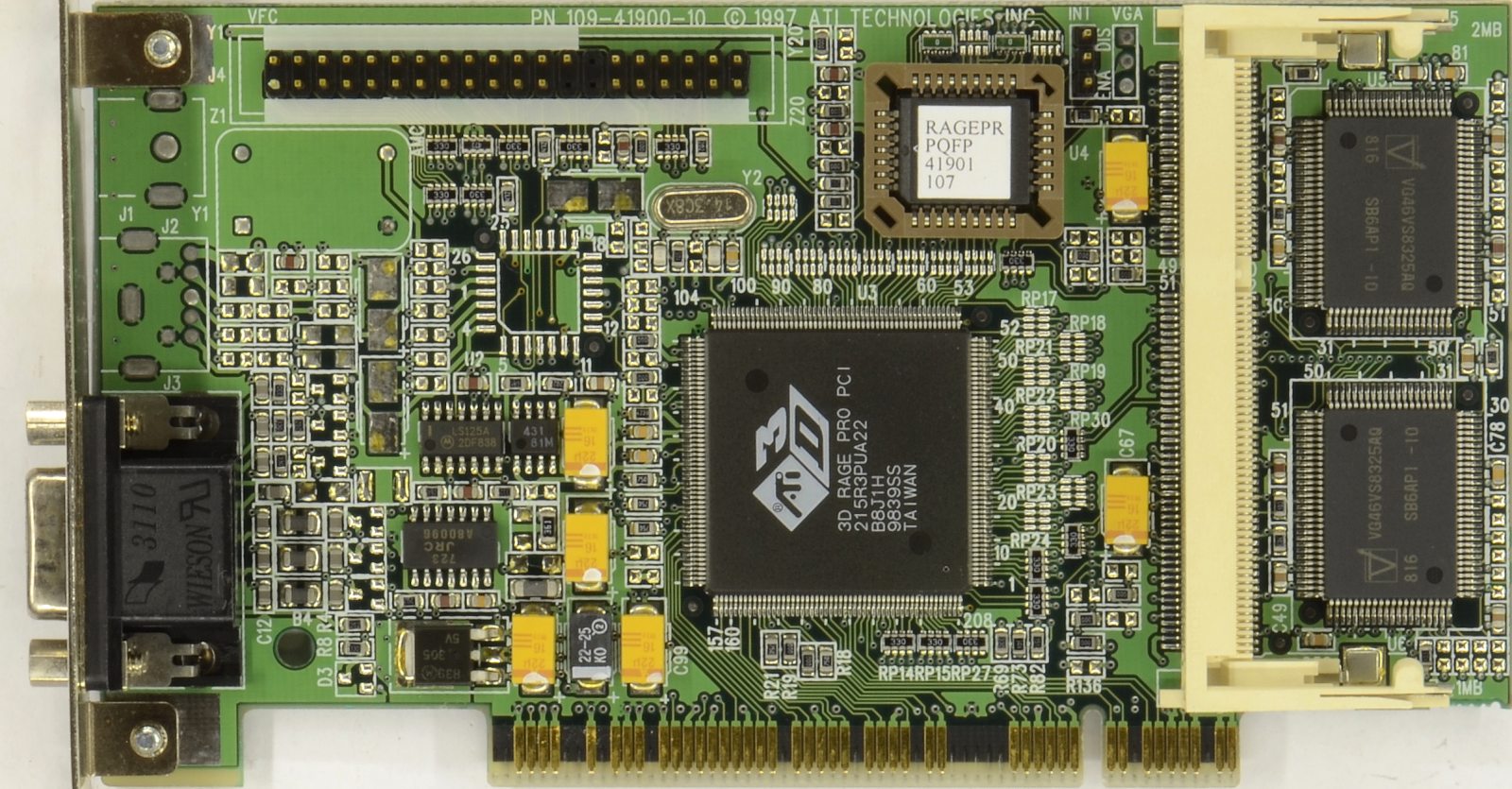

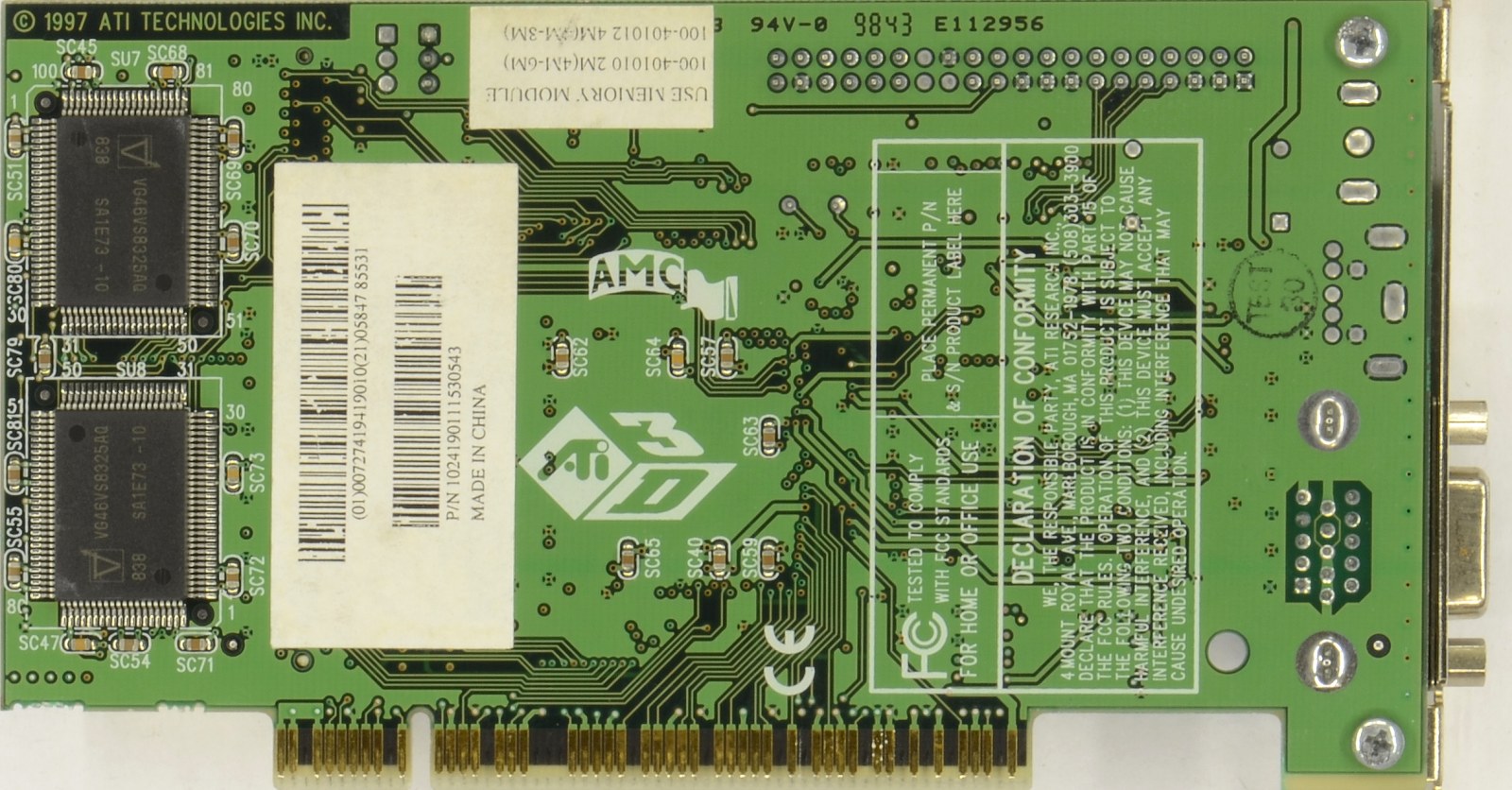

(29) ATi Xpert@Work
(29) ATi Xpert@Work

(29) ATi Xpert@Work

(29) ATi Xpert@Work
(29) ATi Xpert@Work

(29) ATi Xpert@Work

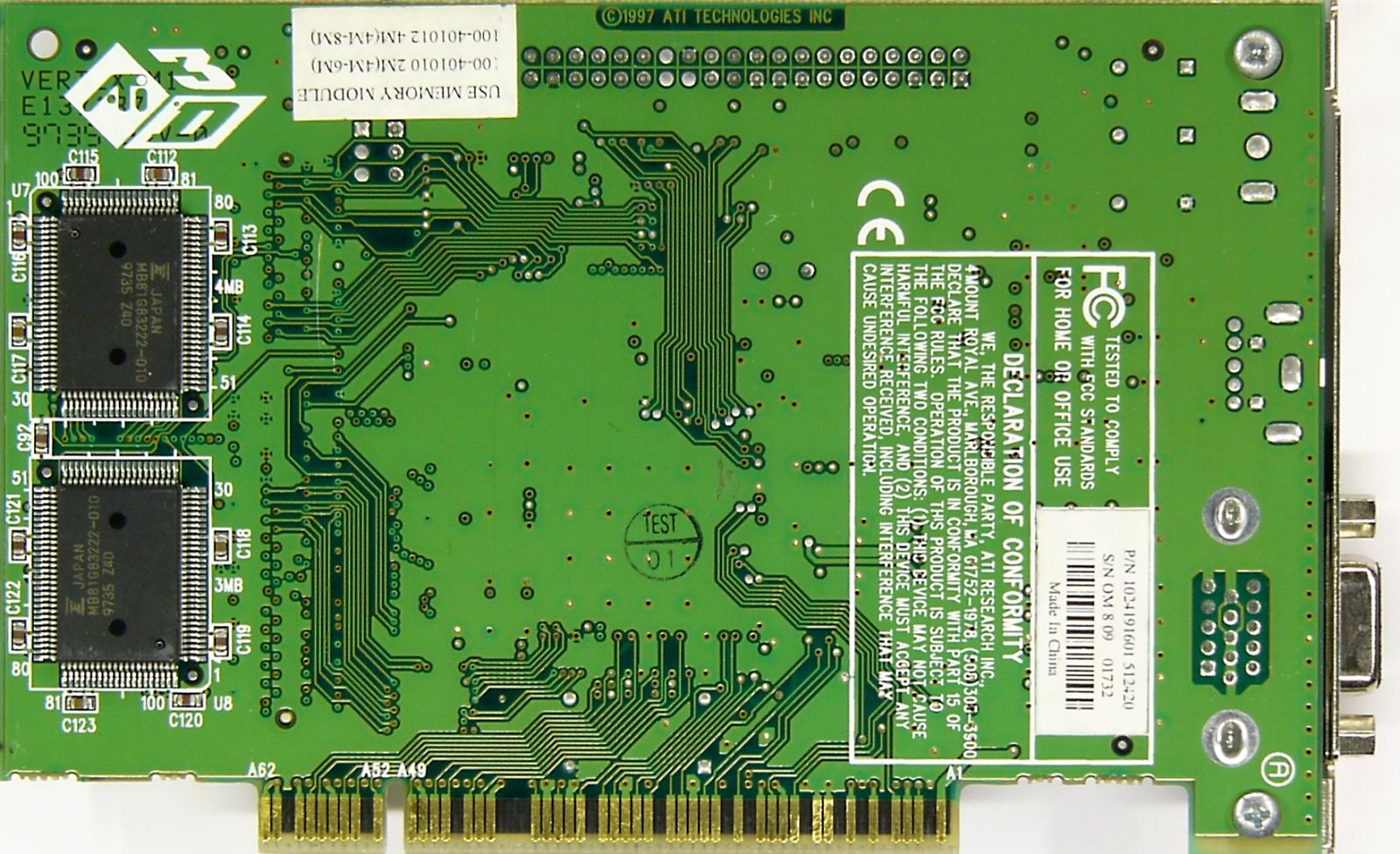

(558) ATi Xpert@Work
(558) ATi Xpert@Work

(558) ATi Xpert@Work

(558) ATi Xpert@Work
(558) ATi Xpert@Work

(558) ATi Xpert@Work



Vlask's card:

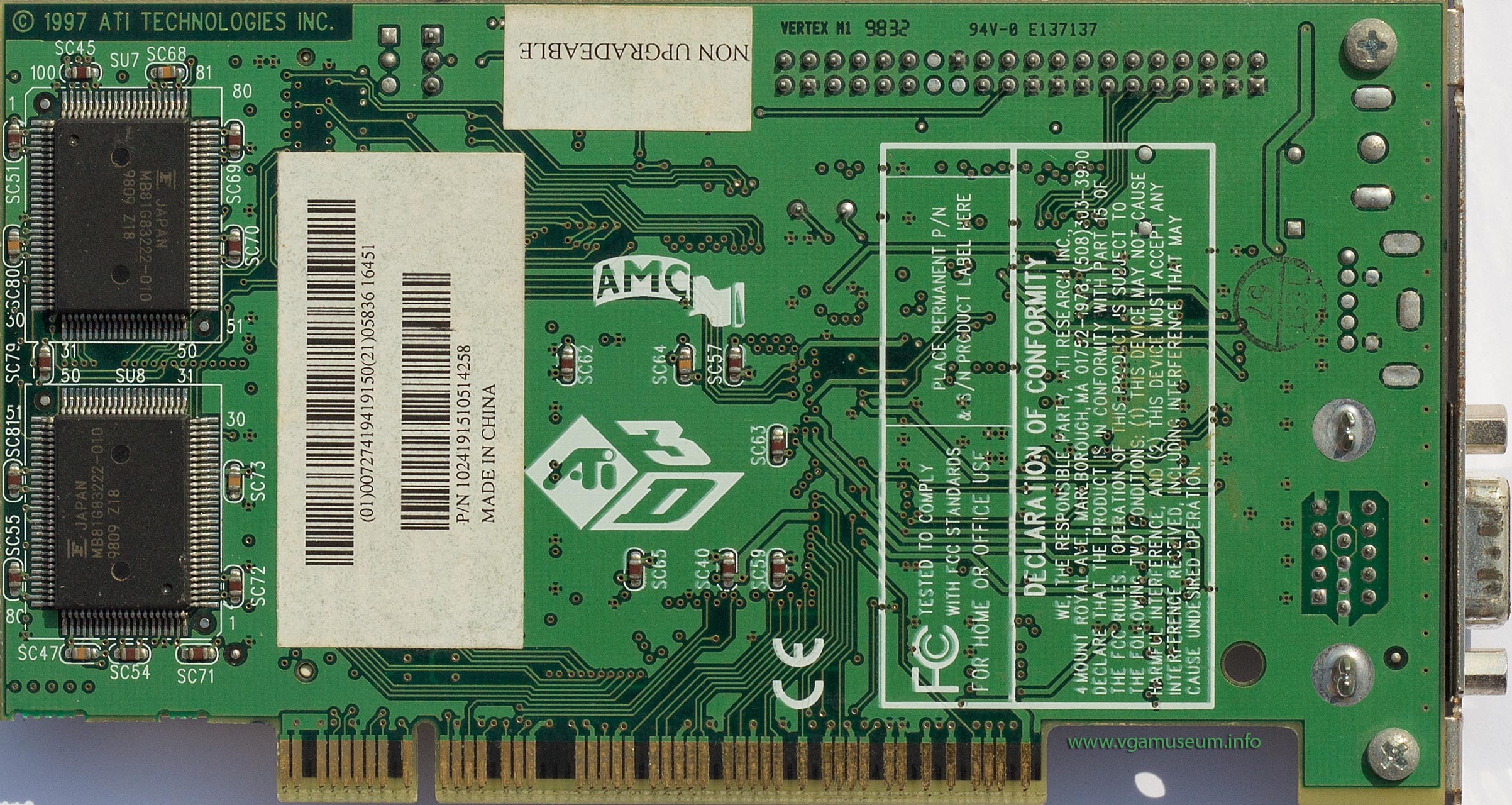

ATi Xpert@Work
ATi Xpert@Work

ATi Xpert@Work

ATi Xpert@Work
ATi Xpert@Work

ATi Xpert@Work

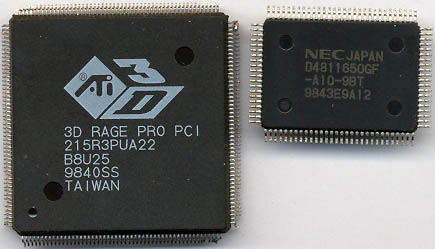

3D Rage Pro PCI chips
3D Rage Pro PCI chips

3D Rage Pro PCI chips



Drivers:

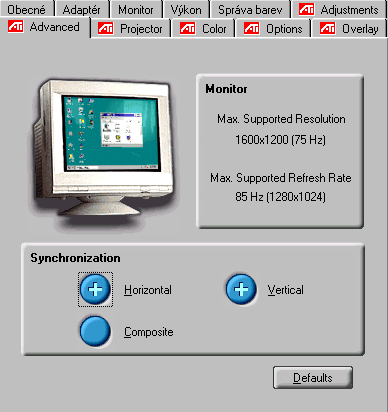

Advanced
Advanced

Advanced

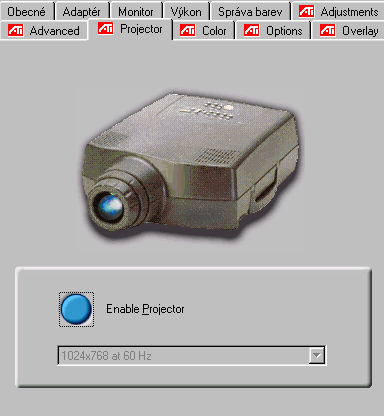

Projector
Projector

Projector

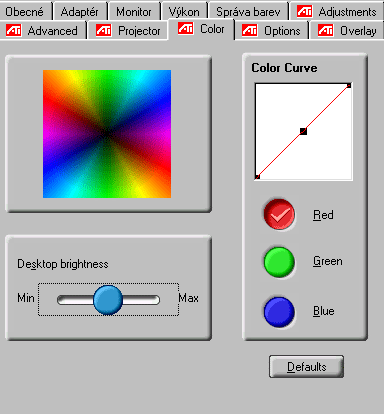

Color
Color

Color

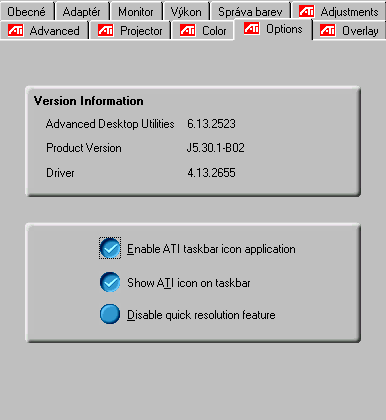

Options
Options

Options

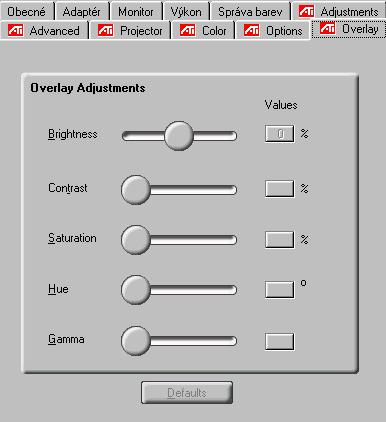

Overlay
Overlay

Overlay

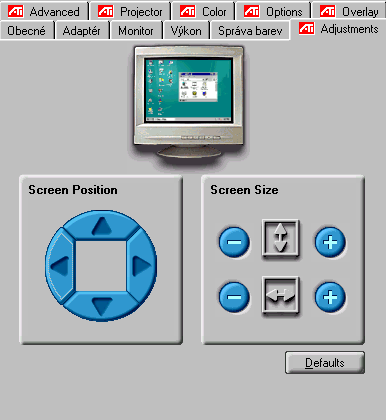

Adjustments
Adjustments

Adjustments

Additional Info

  • Made by: ATI
  • Codename: 3D Rage Pro
  • Bus: PCI
  • Memory Size: 4MB, 8MB
  • Max Memory Size: 16MB
  • Memory Type: EDO, SGRAM
  • Year: 1997
  • Card Type: VGA
  • Family: Rage
  • Manufacturer: UMC
  • Process tech: 350nm
  • Made in: Taiwan
  • Owned by: Vlask, Palcal
  • Outputs: 15 pin D‐sub, RCA/CINCH, S-Video
  • Power consumption (W): 4.2
  • Price $: 280
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX5
  • OpenGL: 1.1
  • Core Clock (MHz): 75
  • Core: 64bit
  • Memory Clock (MHz): 100
  • Memory Bus Width: 64bit
  • Memory Bandwidth (MB/s): 800
  • Pixel Pipelines: 1
  • Texture Units: 1
  • Pixel Fillrate (MPixel/s): 45
  • Triangle/Vertices Rate (M/s): 1.2
  • Sold by: ATI
  • Ramdac (MHz): 230
Read 11675 times Last modified on Monday, 27 April 2015 17:18
