ATI Rage Fury MAXX

Written by
Rate this item
(2 votes)



Highend 3D performance card, based on two ATi Rage 128 Pro using AFR technology.



Works only on certain motherboards with certain operating systems. Drivers were not written for Windows 2000 and newer, since card is incompactible with AGP acces implemented by Microsoft in Win2k/XP.



Zaatharen's card:

ATi Rage Fury MAXX
ATi Rage Fury MAXX
ATi Rage Fury MAXX

ATi Rage Fury MAXX
ATi Rage Fury MAXX
ATi Rage Fury MAXX



Palcal´s cards:

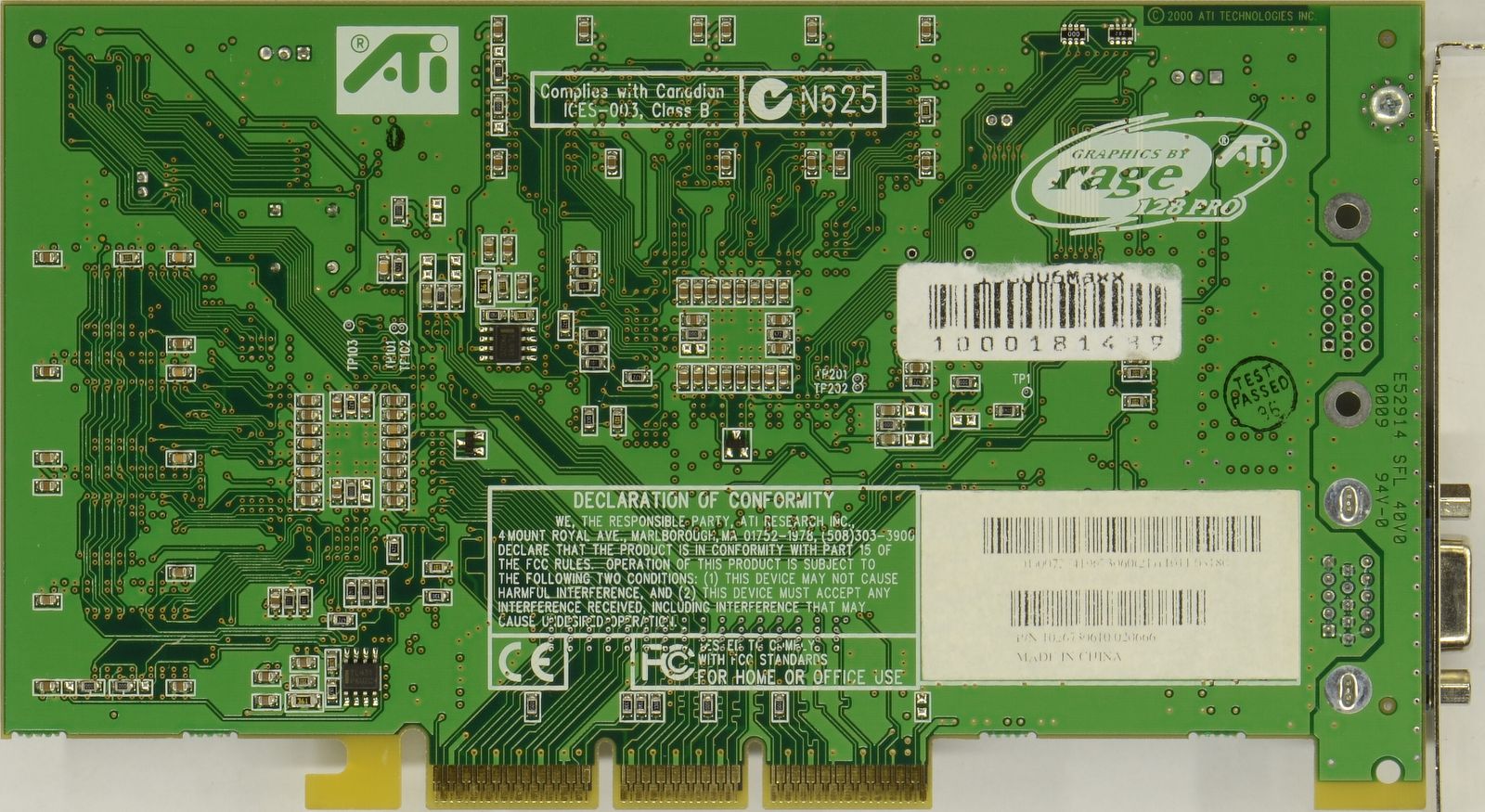

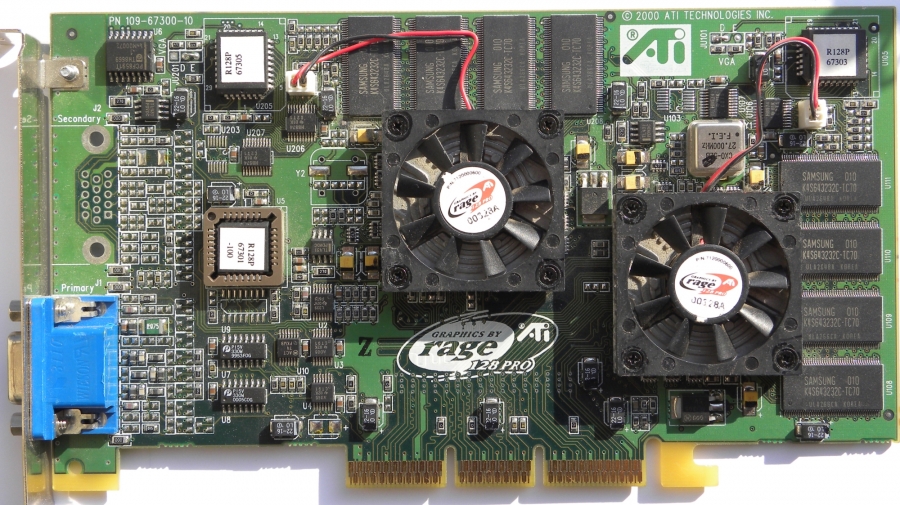

(866) p.n.109-67300-10
(866) p.n.109-67300-10
(866) p.n.109-67300-10

(866) p.n.109-67300-10
(866) p.n.109-67300-10
(866) p.n.109-67300-10

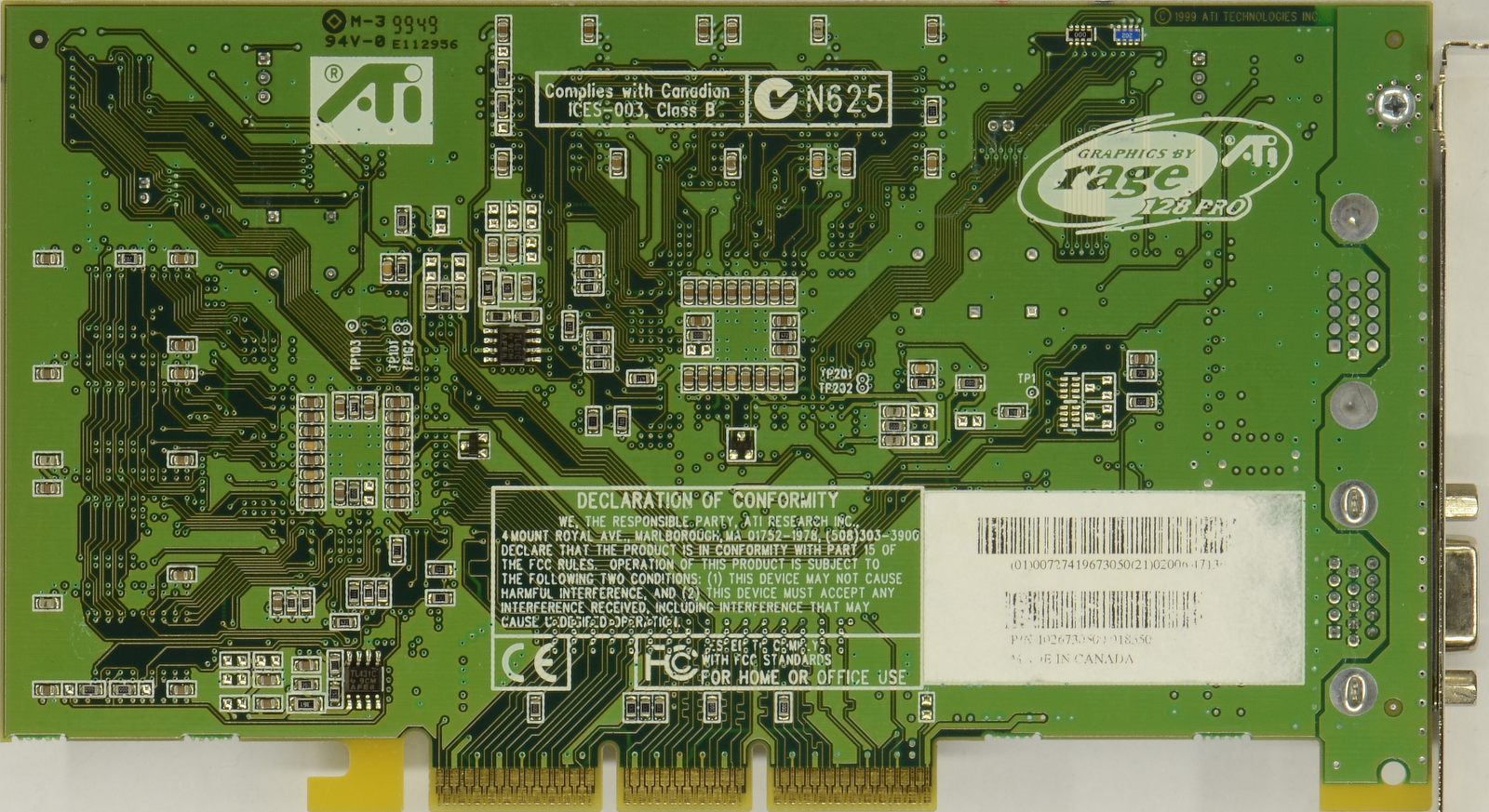

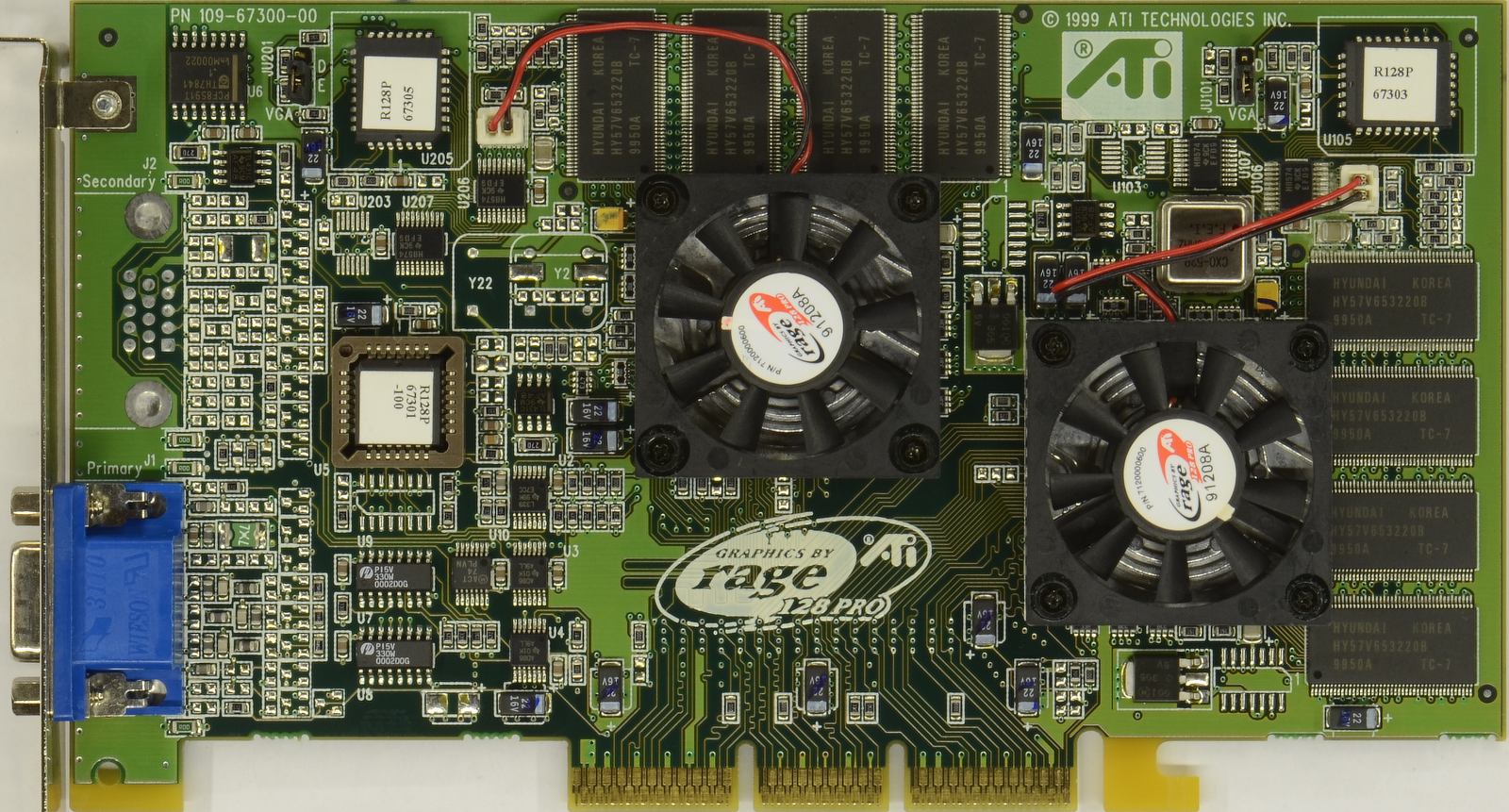

(867) p.n.109-67300-00
(867) p.n.109-67300-00
(867) p.n.109-67300-00

(867) p.n.109-67300-00
(867) p.n.109-67300-00
(867) p.n.109-67300-00

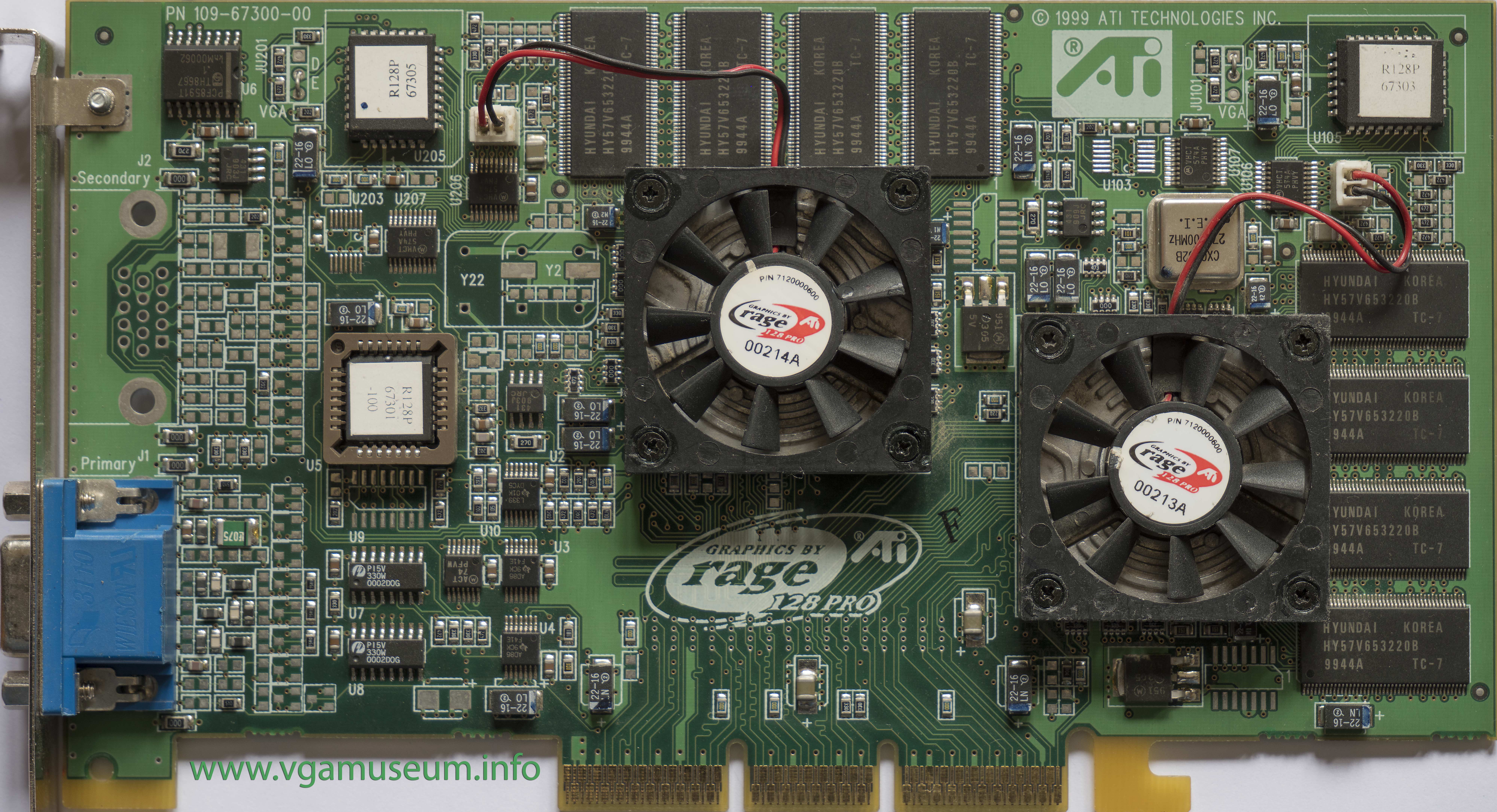

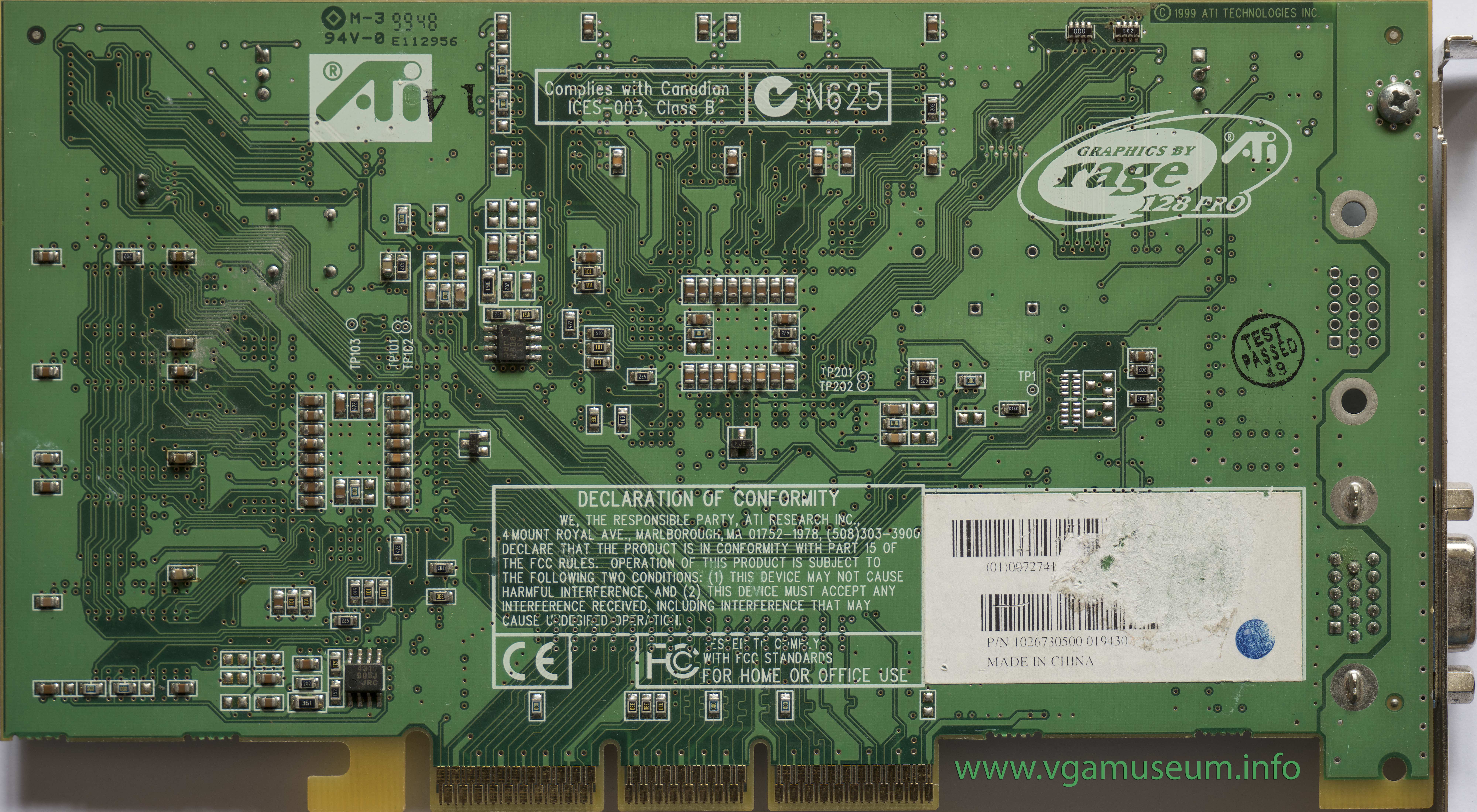

Vlask's card:

Core 118MHz, memory 140MHz.

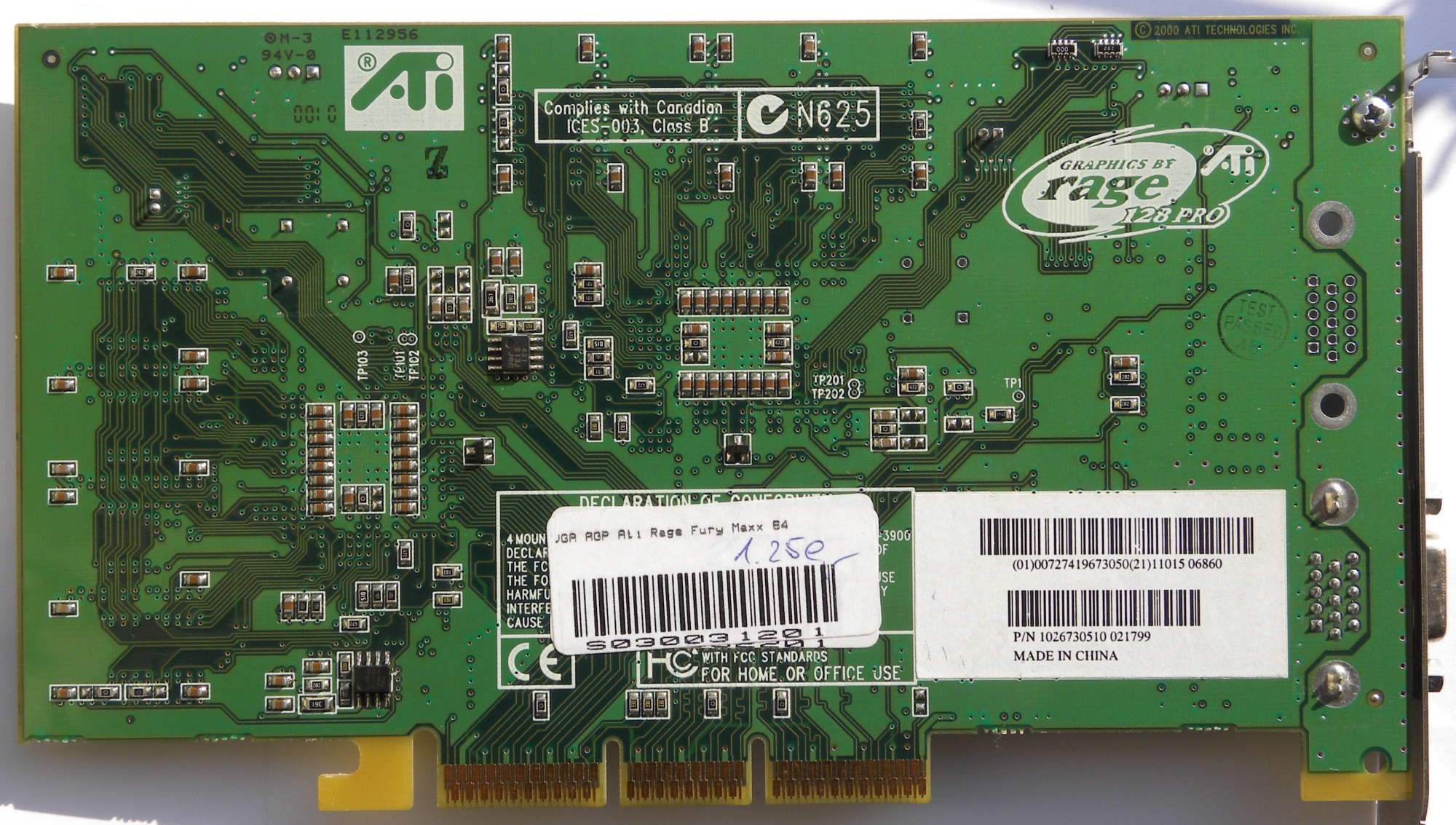

ATI Rage Fury MAXX
ATI Rage Fury MAXX
ATI Rage Fury MAXX

ATI Rage Fury MAXX
ATI Rage Fury MAXX
ATI Rage Fury MAXX



Drivers:

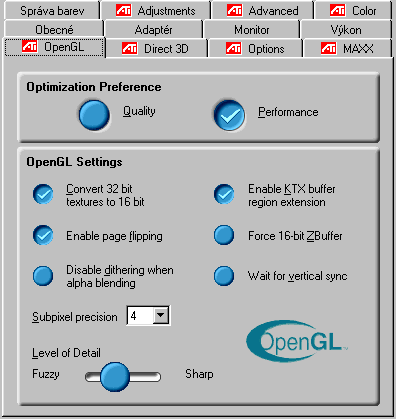

OpenGL
OpenGL
OpenGL

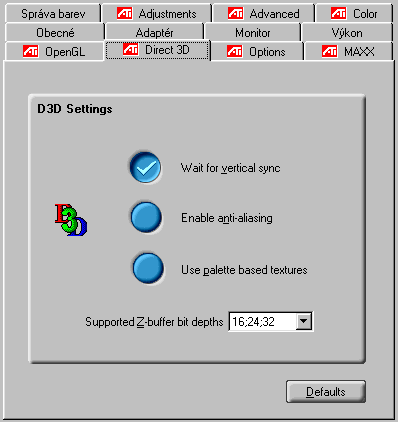

Direct 3D
Direct 3D
Direct 3D

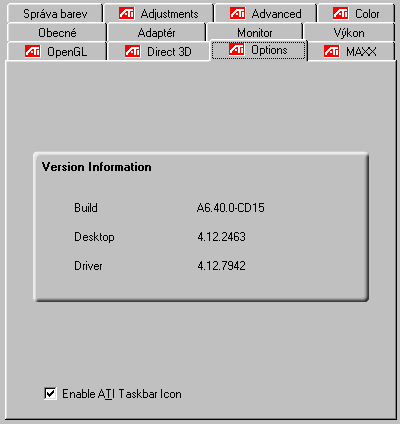

Options
Options
Options

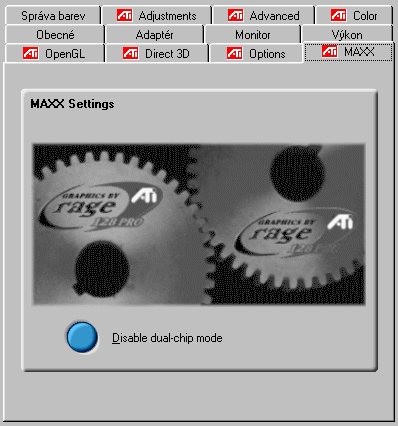

MAXX
MAXX
MAXX

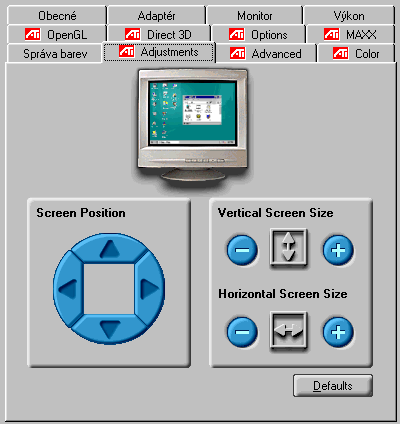

Adjustments
Adjustments
Adjustments

Advanced
Advanced
Advanced

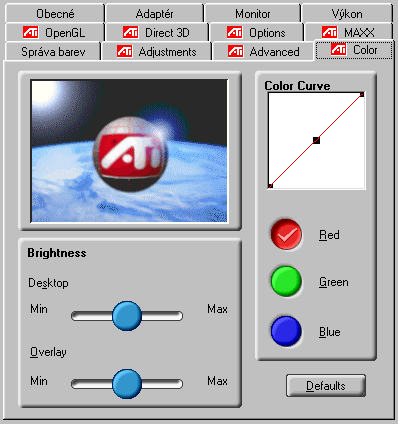

Color
Color
Color

Additional Info

  • Made by: ATI
  • Codename: Rage 128 Pro
  • Bus: AGP 2x
  • Memory Size: 64MB
  • Max Memory Size: 64MB
  • Memory Type: SDR
  • Year: 2000
  • Announce Date: Thursday, 07 October 1999
  • Card Type: VGA
  • Family: Rage
  • Process tech: 250nm
  • Made in: Taiwan
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub
  • Price $: 299
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX6
  • OpenGL: 1.2
  • Core Clock (MHz): 125
  • Core: 128bit
  • Effective Memory Clock (MHz): 140
  • Memory Bus Width: 128bit
  • Memory Bandwidth (MB/s): 4540
  • Pixel Pipelines: 4
  • Texture Units: 4
  • Pixel Fillrate (MPixel/s): 500
  • Texel Fillrate (MTexel/s): 500
  • Sold by: ATI
  • Ramdac (MHz): 300
