3Dfx Voodoo 1

Written by
Rate this item
(2 votes)

1st graphic card from 3Dfx.



No 2D core, only additional 3D accelerator. 2MB frame buffer memory and 2MB (4MB on 6MB cards) texture memory. Max resolution up to 800x600 (6MB), or 640x480 on 4MB versions.

Vlask's cards:

Canopus Pure3D - 6MB, rest 4MB.

Canopus Pure3D
Canopus Pure3D

Canopus Pure3D
Canopus Pure3D
Canopus Pure3D

Canopus Pure3D
Canopus Pure3D drivers
Canopus Pure3D drivers

Canopus Pure3D drivers
Innovision Mighty FX6M
Innovision Mighty FX6M

Innovision Mighty FX6M
Innovision Mighty FX6M
Innovision Mighty FX6M

Innovision Mighty FX6M
Diamond Monster 3D
Diamond Monster 3D

Diamond Monster 3D
Diamond Monster 3D
Diamond Monster 3D

Diamond Monster 3D
ColorMAX VP-503
ColorMAX VP-503

ColorMAX VP-503
ColorMAX VP-503
ColorMAX VP-503

ColorMAX VP-503

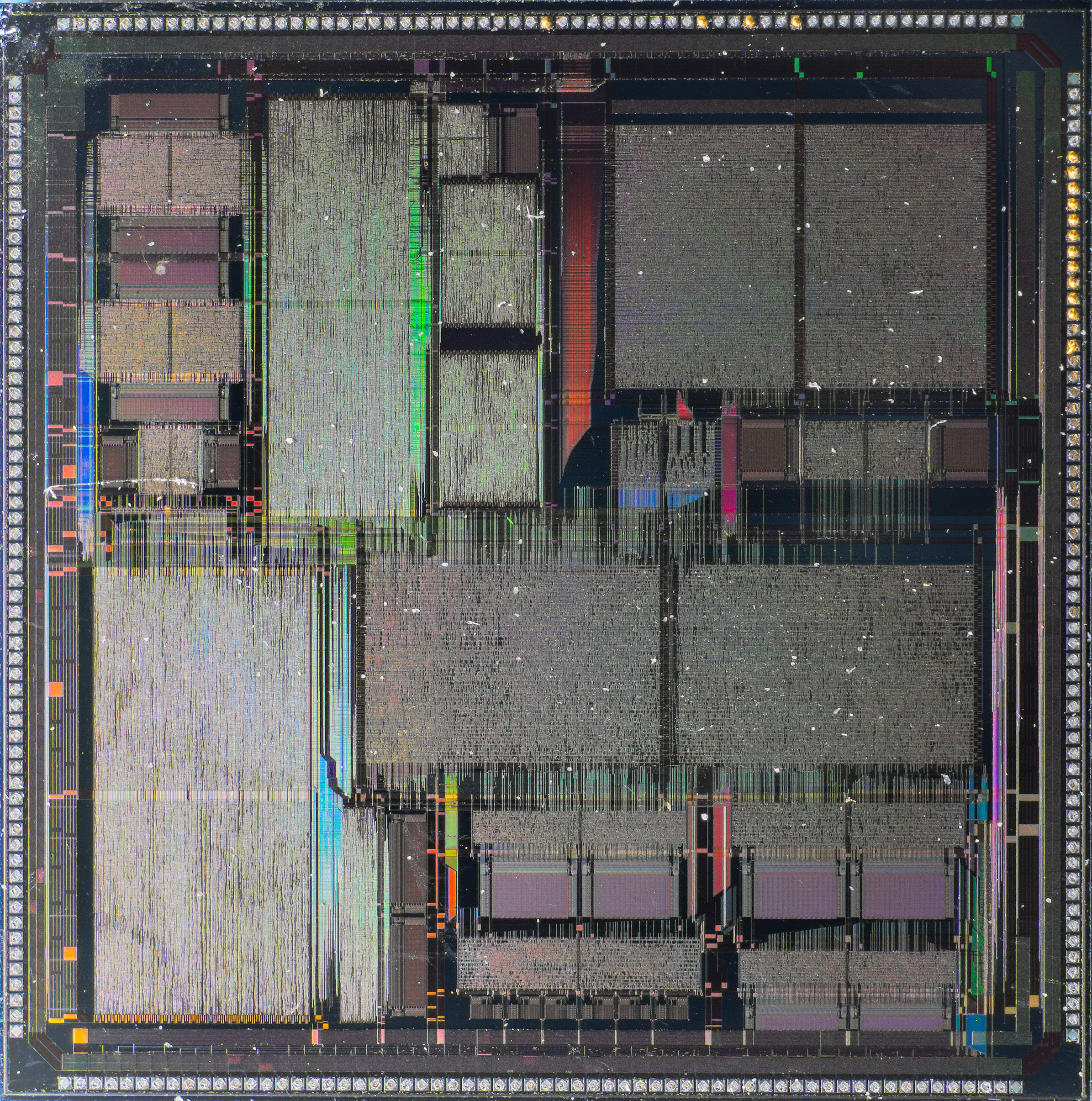

Chips
Chips

Chips



Palcal's cards:

(507) A-Trend ATC-2465A4
(507) A-Trend ATC-2465A4

(507) A-Trend ATC-2465A4
(507) A-Trend ATC-2465A4
(507) A-Trend ATC-2465A4

(507) A-Trend ATC-2465A4
(506) 3Dfx noname
(506) 3Dfx noname

(506) 3Dfx noname
(506) 3Dfx noname
(506) 3Dfx noname

(506) 3Dfx noname
(534) BIOSTAR Venus 3D
(534) BIOSTAR Venus 3D

(534) BIOSTAR Venus 3D
(534) BIOSTAR Venus 3D
(534) BIOSTAR Venus 3D

(534) BIOSTAR Venus 3D
(447) H.I.S Arcade 3D
(447) H.I.S Arcade 3D

(447) H.I.S Arcade 3D
(447) H.I.S Arcade 3D
(447) H.I.S Arcade 3D

(447) H.I.S Arcade 3D
(448) A-Trend VD102P
(448) A-Trend VD102P

(448) A-Trend VD102P
(448) A-Trend VD102P
(448) A-Trend VD102P

(448) A-Trend VD102P
(449) ColorMAX VP-503
(449) ColorMAX VP-503

(449) ColorMAX VP-503
(449) ColorMAX VP-503
(449) ColorMAX VP-503

(449) ColorMAX VP-503
(450) Skywell Magic 3D
(450) Skywell Magic 3D

(450) Skywell Magic 3D
(450) Skywell Magic 3D
(450) Skywell Magic 3D

(450) Skywell Magic 3D
(537) ORCHID Righteous 3D
(537) ORCHID Righteous 3D

(537) ORCHID Righteous 3D
(537) ORCHID Righteous 3D
(537) ORCHID Righteous 3D

(537) ORCHID Righteous 3D
(808) (generic)3920465A1 600-0012-04
(808) (generic)3920465A1 600-0012-04

(808) (generic)3920465A1 600-0012-04
(808) (generic)3920465A1 600-0012-04
(808) (generic)3920465A1 600-0012-04

(808) (generic)3920465A1 600-0012-04



Zaatharen's cards:

Diamond Monster 3D
Diamond Monster 3D

Diamond Monster 3D
Diamond Monster 3D
Diamond Monster 3D

Diamond Monster 3D
Bestdata Arcade FX
Bestdata Arcade FX

Bestdata Arcade FX
Bestdata Arcade FX
Bestdata Arcade FX

Bestdata Arcade FX
VGA cable from VGA to Voodoo
VGA cable from VGA to Voodoo

VGA cable from VGA to Voodoo

Additional Info

  • Made by: 3Dfx
  • Codename: SST 1
  • Bus: PCI
  • Memory Size: 4MB, 6MB
  • Max Memory Size: 6MB
  • Memory Type: EDO
  • Year: 1996
  • Announce Date: Monday, 06 November 1995
  • Card Type: VGA
  • Manufacturer: TSMC
  • Process tech: 500nm
  • Transistors (Millions): 1
  • Made in: Taiwan
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub, RCA/CINCH
  • Price $: 299
  • DirectX: DX5
  • Core Clock (MHz): 50
  • Memory Clock (MHz): 50
  • Memory Bus Width: 128bit
  • Memory Bandwidth (MB/s): 400
  • Pixel Pipelines: 1
  • Texture Units: 1
  • Pixel Fillrate (MPixel/s): 50
  • Texel Fillrate (MTexel/s): 50
  • Triangle/Vertices Rate (M/s): 1
  • Sold by: ATrend Bestdata Biostar Canopus ColorMAX Diamond HIS Innovision Orchid Skywell
  • Max Core Clock (MHz): 50
  • Min Core Clock (MHz): 45
  • Max Memory Clock (MHz): 50
  • Min Memory Clock (MHz): 45
  • Ramdac (MHz): 135
