ATI Rage Mobility-P

Written by
Rate this item
(0 votes)

Enhanced mobile Rage LT Pro. Also known as mach64 LM.



Palcal's card:

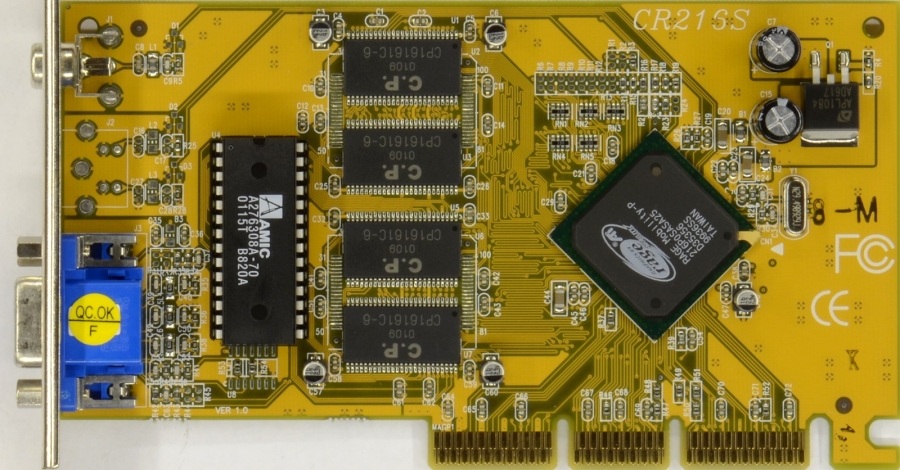

(787) PowerColor - CR216S
(787) PowerColor - CR216S

(787) PowerColor - CR216S

(787) PowerColor - CR216S
(787) PowerColor - CR216S

(787) PowerColor - CR216S



Vlask's cards:

Memory clock: 4MB - 66,68MHz, ETC 8MB - 100MHz. Chips only are from Compaq Armada E500 (P3 850MHz).

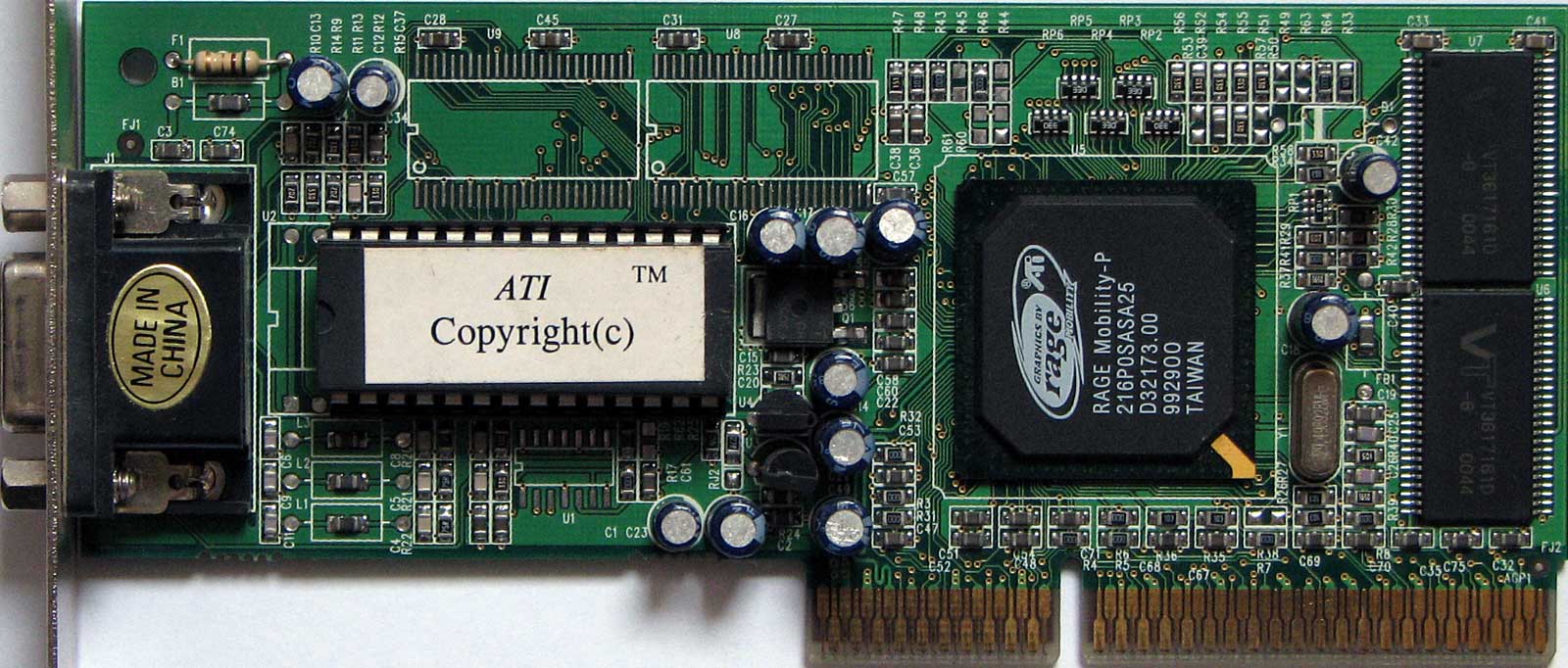

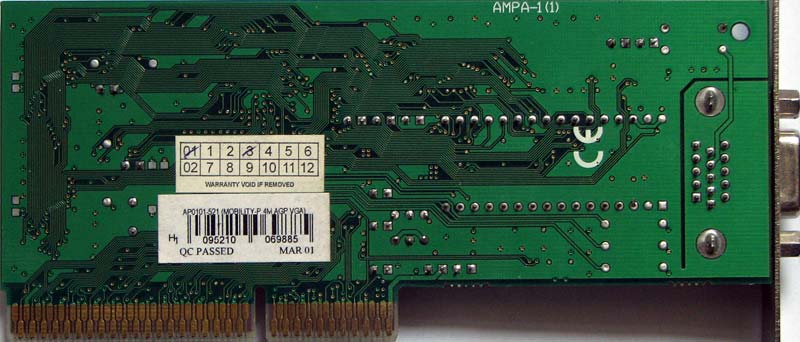

ATi Rage Mobility-P 4MB
ATi Rage Mobility-P 4MB

ATi Rage Mobility-P 4MB

ATi Rage Mobility-P 4MB
ATi Rage Mobility-P 4MB

ATi Rage Mobility-P 4MB

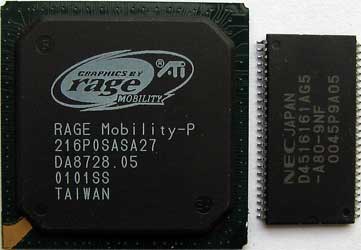

Rage Mobility-P chips
Rage Mobility-P chips

Rage Mobility-P chips

ETC Mobility-P 8MB
ETC Mobility-P 8MB

ETC Mobility-P 8MB

ETC Mobility-P 8MB
ETC Mobility-P 8MB

ETC Mobility-P 8MB



Zaatharen's card:

Memory clock: 70MHz.

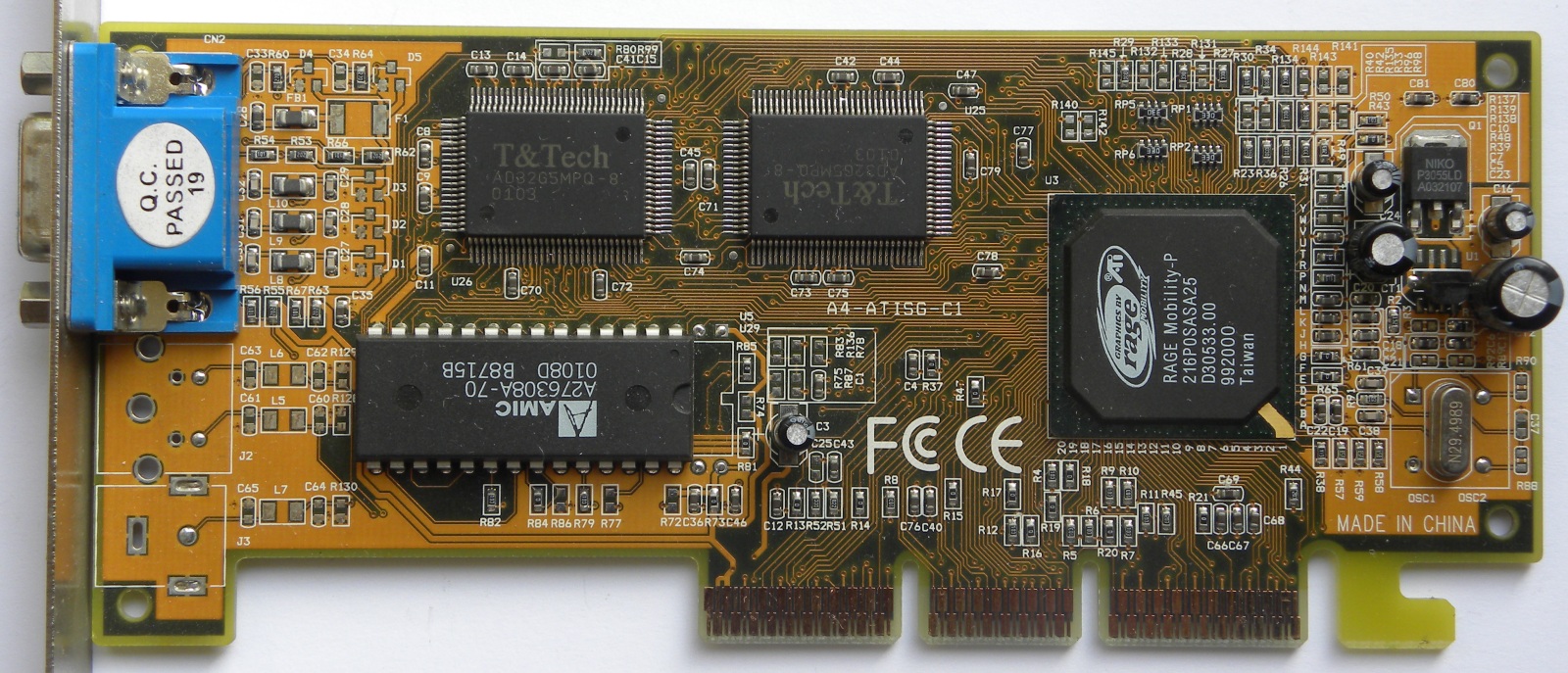

ATi Rage Mobility-P
ATi Rage Mobility-P

ATi Rage Mobility-P

ATi Rage Mobility-P
ATi Rage Mobility-P

ATi Rage Mobility-P

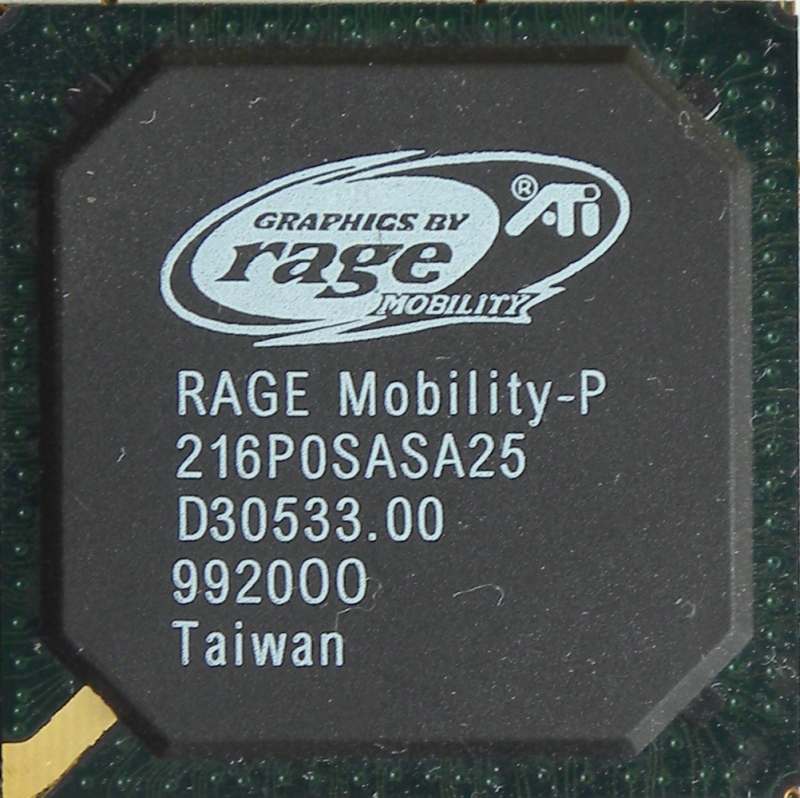

Rage Mobility-P core
Rage Mobility-P core

Rage Mobility-P core

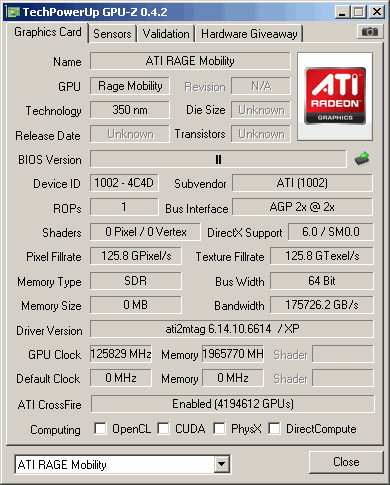

GPUZ
GPUZ

GPUZ



Drivers:

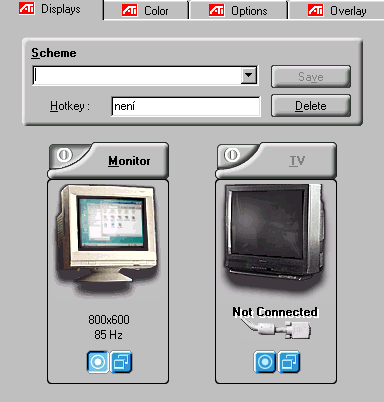

Displays
Displays

Displays

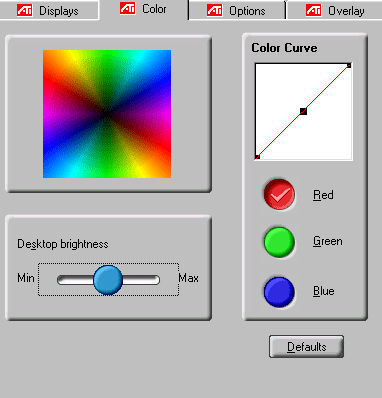

Color
Color

Color

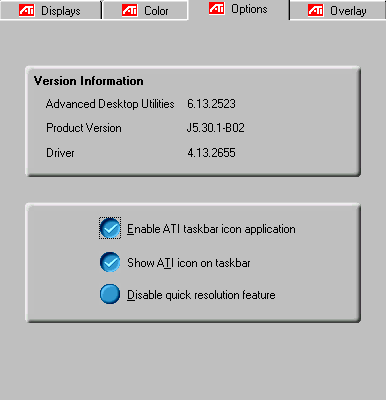

Options
Options

Options

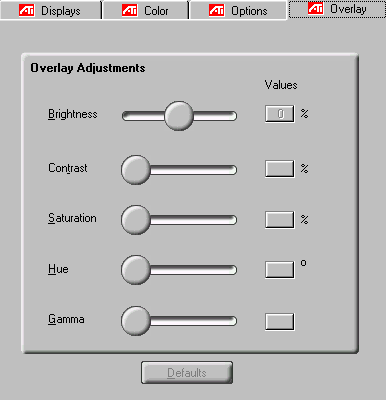

Overlay
Overlay

Overlay

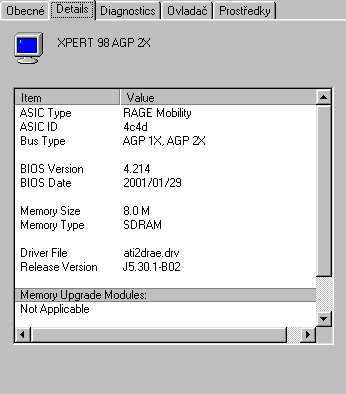

Details
Details

Details

Additional Info

  • Made by: ATI
  • Codename: Rage Mobility P
  • Bus: AGP 2x
  • Memory Size: 4MB, 8MB
  • Max Memory Size: 8MB
  • Memory Type: SGRAM, SDR
  • Year: 1999
  • Announce Date: Monday, 02 November 1998
  • Card Type: VGA
  • Family: Rage
  • Manufacturer: TSMC
  • Made in: Taiwan
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX5
  • OpenGL: 1.1
  • Core: 64bit
  • Memory Clock (MHz): 100
  • Memory Bus Width: 64bit
  • Pixel Pipelines: 1
  • Texture Units: 1
  • Sold by: Compaq ETC PowerColor
  • Max Memory Clock (MHz): 100
  • Min Memory Clock (MHz): 67
