Lowcost solution based on RIVA TNT2 core with max 32MB on 64bit memory bus.



Palcal's cards:

(395)+(417) memory: 135MHz, (731) memory 125MHz.

(395) Nvidia Riva TNT2 M64
(395) Nvidia Riva TNT2 M64

(395) Nvidia Riva TNT2 M64

(395) Nvidia Riva TNT2 M64
(395) Nvidia Riva TNT2 M64

(395) Nvidia Riva TNT2 M64

(395) Nvidia Riva TNT2 M64
(395) Nvidia Riva TNT2 M64

(395) Nvidia Riva TNT2 M64

(408) Nvidia Riva TNT2 M64
(408) Nvidia Riva TNT2 M64

(408) Nvidia Riva TNT2 M64

(408) Nvidia Riva TNT2 M64
(408) Nvidia Riva TNT2 M64

(408) Nvidia Riva TNT2 M64

(417) Super Grace TNV13
(417) Super Grace TNV13

(417) Super Grace TNV13

(417) Super Grace TNV13
(417) Super Grace TNV13

(417) Super Grace TNV13

(417) Super Grace TNV13
(417) Super Grace TNV13

(417) Super Grace TNV13

(595) Super Grace RTVA-5
(595) Super Grace RTVA-5

(595) Super Grace RTVA-5

(595) Super Grace RTVA-5
(595) Super Grace RTVA-5

(595) Super Grace RTVA-5

(443) VisionTek NV996.0
(443) VisionTek NV996.0

(443) VisionTek NV996.0

(443) VisionTek NV996.0
(443) VisionTek NV996.0

(443) VisionTek NV996.0

(591) MSI MS8807
(591) MSI MS8807

(591) MSI MS8807

(591) MSI MS8807
(591) MSI MS8807

(591) MSI MS8807

(591) MSI MS8807
(591) MSI MS8807

(591) MSI MS8807

(592) Compaq PWA-G4000PRO
(592) Compaq PWA-G4000PRO

(592) Compaq PWA-G4000PRO

(592) Compaq PWA-G4000PRO
(592) Compaq PWA-G4000PRO

(592) Compaq PWA-G4000PRO

(593) Inno VISION Tornado rev.1.3 PCI
(593) Inno VISION Tornado rev.1.3 PCI

(593) Inno VISION Tornado rev.1.3 PCI

(593) Inno VISION Tornado rev.1.3 PCI
(593) Inno VISION Tornado rev.1.3 PCI

(593) Inno VISION Tornado rev.1.3 PCI

(594) Inno VISION Tornado rev.6.0 AGP
(594) Inno VISION Tornado rev.6.0 AGP

(594) Inno VISION Tornado rev.6.0 AGP

(594) Inno VISION Tornado rev.6.0 AGP
(594) Inno VISION Tornado rev.6.0 AGP

(594) Inno VISION Tornado rev.6.0 AGP

(596) Creative Labs CT6930
(596) Creative Labs CT6930

(596) Creative Labs CT6930

(596) Creative Labs CT6930
(596) Creative Labs CT6930

(596) Creative Labs CT6930

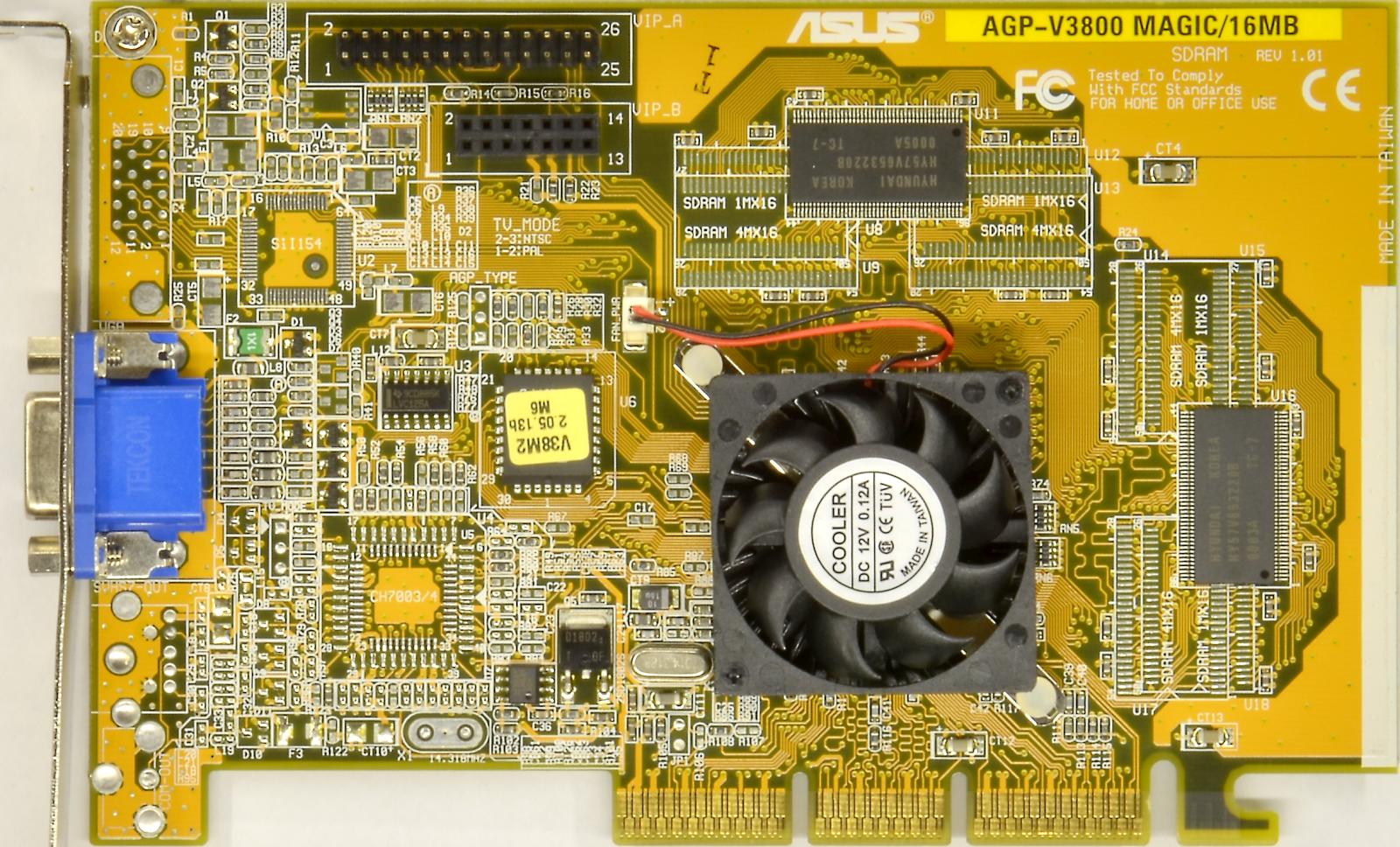

(731) Asus AGP-V3800 MAGIC/16MB
(731) Asus AGP-V3800 MAGIC/16MB

(731) Asus AGP-V3800 MAGIC/16MB

(731) Asus AGP-V3800 MAGIC/16MB
(731) Asus AGP-V3800 MAGIC/16MB

(731) Asus AGP-V3800 MAGIC/16MB

(731) Asus AGP-V3800 MAGIC/16MB
(731) Asus AGP-V3800 MAGIC/16MB

(731) Asus AGP-V3800 MAGIC/16MB

(742) Pine VARM645PS
(742) Pine VARM645PS

(742) Pine VARM645PS

(742) Pine VARM645PS
(742) Pine VARM645PS

(742) Pine VARM645PS

(742) Pine VARM645PS
(742) Pine VARM645PS

(742) Pine VARM645PS

(756) PowerColor CM64A
(756) PowerColor CM64A

(756) PowerColor CM64A

(756) PowerColor CM64A
(756) PowerColor CM64A

(756) PowerColor CM64A

(861) Gainward GW909F
(861) Gainward GW909F

(861) Gainward GW909F

(861) Gainward GW909F
(861) Gainward GW909F

(861) Gainward GW909F






Zaatharen's cards:

MSI MS8807
MSI MS8807

MSI MS8807

MSI MS8807
MSI MS8807

MSI MS8807

RIVA TNT2 M64
RIVA TNT2 M64

RIVA TNT2 M64

RIVA TNT2 M64
RIVA TNT2 M64

RIVA TNT2 M64

Gainward GW909F 16MB
Gainward GW909F 16MB

Gainward GW909F 16MB

Gainward GW909F 16MB
Gainward GW909F 16MB

Gainward GW909F 16MB

RIVA TNT2 M64
RIVA TNT2 M64

RIVA TNT2 M64

RIVA TNT2 M64
RIVA TNT2 M64

RIVA TNT2 M64

Innovision TN2 M64 32MB
Innovision TN2 M64 32MB

Innovision TN2 M64 32MB

Innovision TN2 M64 32MB
Innovision TN2 M64 32MB

Innovision TN2 M64 32MB

ELSA Erazor III LT-A32
ELSA Erazor III LT-A32

ELSA Erazor III LT-A32

ELSA Erazor III LT-A32
ELSA Erazor III LT-A32

ELSA Erazor III LT-A32

A-Tek Riva TNT2 M64
A-Tek Riva TNT2 M64

A-Tek Riva TNT2 M64

A-Tek Riva TNT2 M64
A-Tek Riva TNT2 M64

A-Tek Riva TNT2 M64

Asus AGP-V3800M
Asus AGP-V3800M

Asus AGP-V3800M

Asus AGP-V3800M
Asus AGP-V3800M

Asus AGP-V3800M

Asus AGP-V3800M
Asus AGP-V3800M

Asus AGP-V3800M
NVIDIA Riva TNT2 M64
NVIDIA Riva TNT2 M64

NVIDIA Riva TNT2 M64
NVIDIA Riva TNT2 M64
NVIDIA Riva TNT2 M64

NVIDIA Riva TNT2 M64






Vlask's cards:

Inno3D have memory clocked to 125MHz. Leadtek to 143MHz. MSI have reference clock 125/150Mhz.

MSI MS-8808
MSI MS-8808

MSI MS-8808

MSI MS-8808
MSI MS-8808

MSI MS-8808

Inno3D TNT2 M64 PCI
Inno3D TNT2 M64 PCI

Inno3D TNT2 M64 PCI

Inno3D TNT2 M64 PCI
Inno3D TNT2 M64 PCI

Inno3D TNT2 M64 PCI

Leadek 16MB
Leadek 16MB

Leadek 16MB

Leadek 16MB
Leadek 16MB

Leadek 16MB

MSI GPUZ
MSI GPUZ

MSI GPUZ

Inno3D PCI GPUZ
Inno3D PCI GPUZ

Inno3D PCI GPUZ

Leadtek GPUZ
Leadtek GPUZ

Leadtek GPUZ

TNT2 M64 chips
TNT2 M64 chips

TNT2 M64 chips


Additional Info

  • Made by: NVIDIA
  • Codename: NV5
  • Bus: PCI, AGP 4x
  • Memory Size: 16MB, 32MB
  • Max Memory Size: 32MB
  • Memory Type: SDR
  • Year: 1999
  • Card Type: VGA
  • Family: Riva
  • Manufacturer: TSMC
  • Process tech: 250nm
  • Transistors (Millions): 15
  • Made in: Taiwan, Korea
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub, S-Video
  • Price $: 100
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX6
  • OpenGL: 1.5
  • Core Clock (MHz): 125
  • Core: 128bit
  • Memory Clock (MHz): 150
  • Memory Bus Width: 64bit
  • Memory Bandwidth (MB/s): 1200
  • Pixel Pipelines: 2
  • Texture Units: 2
  • Pixel Fillrate (MPixel/s): 250
  • Texel Fillrate (MTexel/s): 250
  • Triangle/Vertices Rate (M/s): 9
  • Sold by: Asus ATek Compaq Creative ELSA Gainward Innovision Leadtek MSI Pine PowerColor Super Grace VisionTek
  • Max Memory Clock (MHz): 150
  • Min Memory Clock (MHz): 125
  • Ramdac (MHz): 300
