AMD Radeon HD 6950

Written by
Rate this item
(0 votes)

Hi-end single-GPU card with Eyefinity and AMD HD3D support. Locked shaders can be unlocked to get full HD6970 power. GTX570 competitior.



Note: I modified BIOS on mine Sapphire Radeon HD6950 2GB to get full power of HD6970, thats why GPU-Z shows different specifications.

ATI PowerPlay (BIOS)

State #1 GPU: 880 MHz, Memory: 1375 MHz (Boot)
State #2 GPU: 880 MHz, Memory: 1375 MHz
State #3 GPU: 800 MHz, Memory: 1375 MHz (UVD)
State #4 GPU: 150 MHz, Memory: 300 MHz



Zaatharen's card:



AMD Cayman Pro GPU
AMD Cayman Pro GPU

AMD Cayman Pro GPU

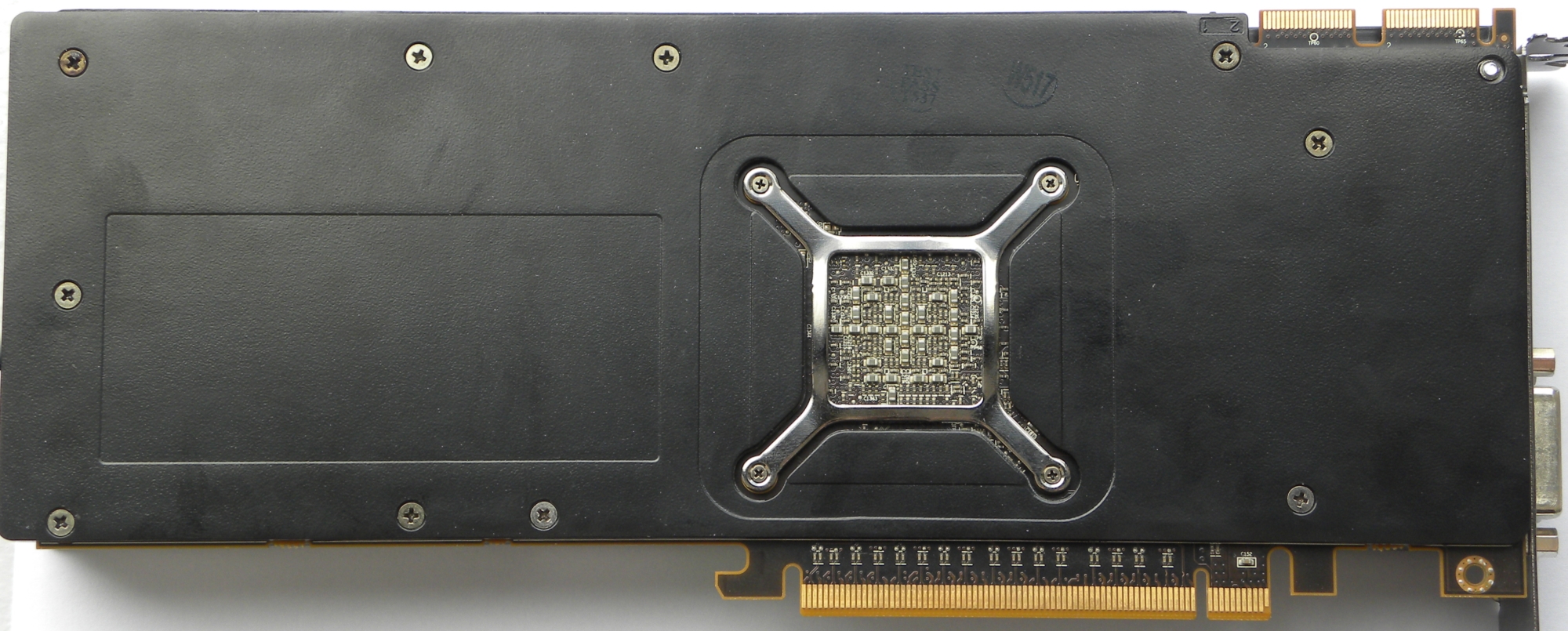

Gigabyte Radeon HD6950 1GB
Gigabyte Radeon HD6950 1GB

Gigabyte Radeon HD6950 1GB
Gigabyte Radeon HD6950 1GB
Gigabyte Radeon HD6950 1GB

Gigabyte Radeon HD6950 1GB

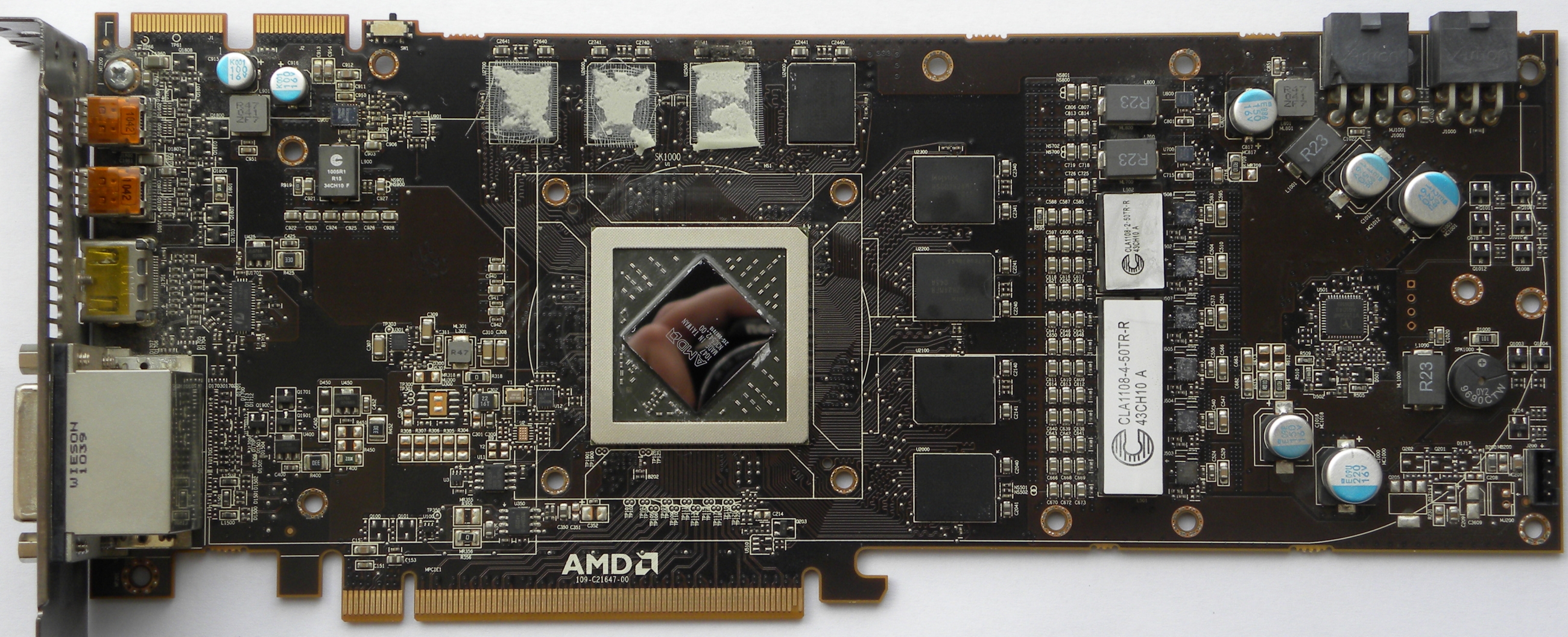

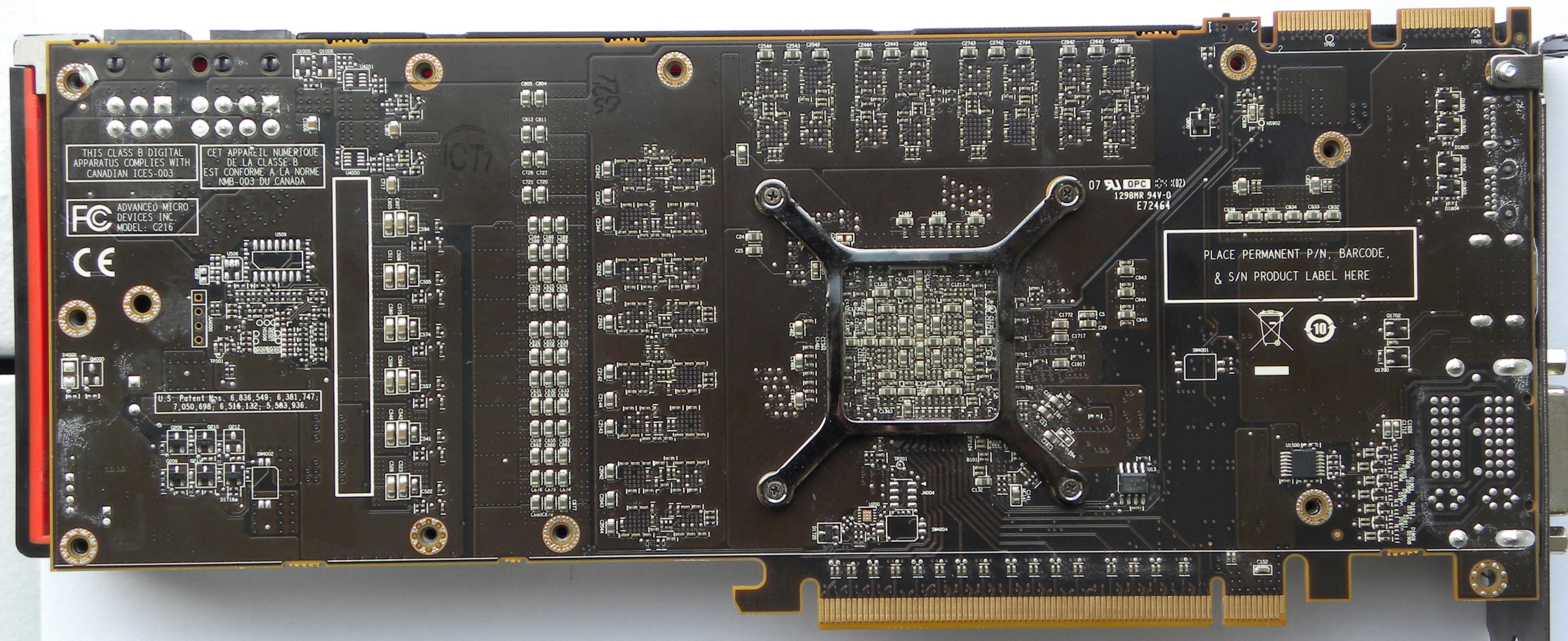

Sapphire Radeon HD6950 2GB
Sapphire Radeon HD6950 2GB

Sapphire Radeon HD6950 2GB
Sapphire Radeon HD6950 2GB
Sapphire Radeon HD6950 2GB

Sapphire Radeon HD6950 2GB
Sapphire Radeon HD6950 2GB
Sapphire Radeon HD6950 2GB

Sapphire Radeon HD6950 2GB
Sapphire Radeon HD6950 2GB
Sapphire Radeon HD6950 2GB

Sapphire Radeon HD6950 2GB

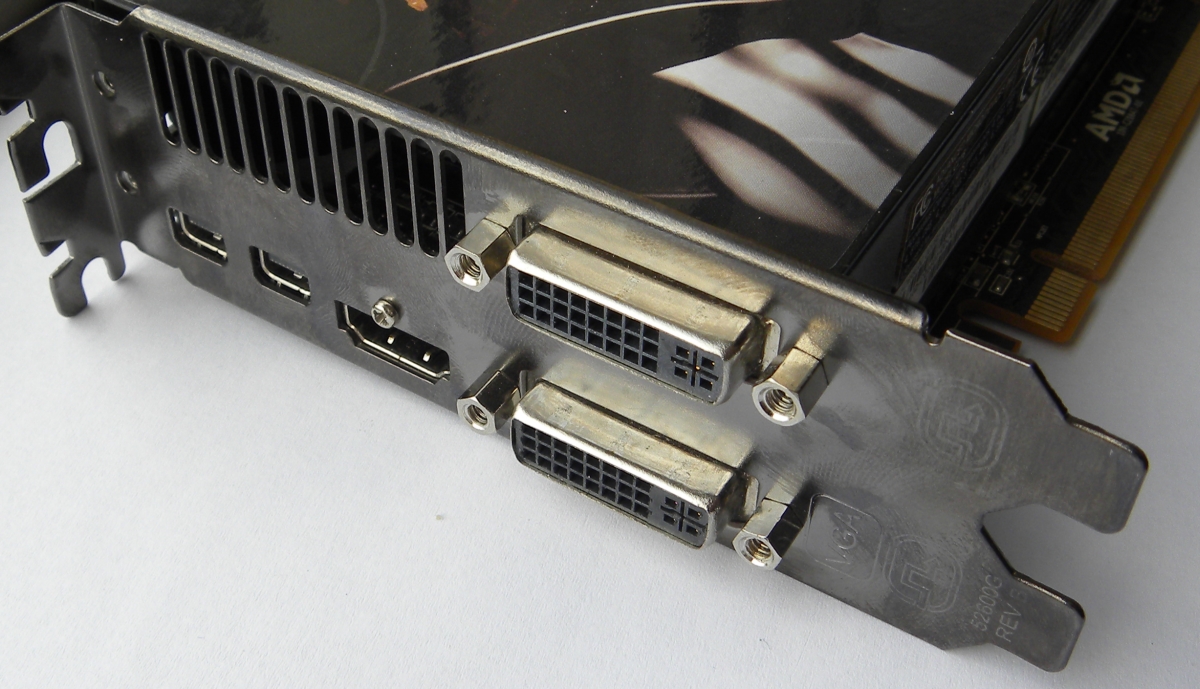

Sapphire Radeon HD6950 2GB outputs
Sapphire Radeon HD6950 2GB outputs

Sapphire Radeon HD6950 2GB outputs
GPU-Z
GPU-Z

GPU-Z

Additional Info

  • Made by: AMD
  • Codename: Cayman
  • Bus: PCI-E 2 x16
  • Memory Size: 1GB, 2GB
  • Max Memory Size: 2GB
  • Memory Type: GDDR5
  • Year: 2010
  • Announce Date: Tuesday, 14 December 2010
  • Card Type: VGA
  • Family: Radeon HD6x
  • Manufacturer: TSMC
  • Process tech: 40nm
  • Transistors (Millions): 2640
  • Made in: Taiwan
  • Owned by: Zaatharen
  • Outputs: DVI, HDMI, DisplayPort
  • Power consumption (W): 200
  • Price $: 299
  • Video Acceleration: MPEG-4 AVC (H.264)
  • DirectX: DX11
  • OpenGL: 4.3
  • Core Clock (MHz): 800
  • Memory Clock (MHz): 5000
  • Memory Bus Width: 256bit
  • Memory Bandwidth (MB/s): 160000
  • Texture Units: 88
  • ROPs: 32
  • Unified Shaders: 1408
  • Shader Model: 5.0 (DX11)
  • Pixel Fillrate (MPixel/s): 25600
  • Texel Fillrate (MTexel/s): 70400
  • Shaders power (GFlops): 2253
  • Sold by: Sapphire Gigabyte
  • Max Core Clock (MHz): 900
  • Min Core Clock (MHz): 800
  • Max Memory Clock (MHz): 5500
  • Min Memory Clock (MHz): 5000
  • Ramdac (MHz): 400
