ATI Mobility Radeon 9200

Written by
Rate this item
(0 votes)



Modified desktop Radeon 9200 for laptops.





Card is based on RV280 core derived from desktop Radeon 9200, core is called M9. Card is connected via AGP 8x bus. Mostly has almost same specs as desktop version, with some power usage tweaking.





Asus A4K/D motherboard - This motherboard has dedicated and soldered 64MB version.

Dell Mobility Radeon 9200 - Pulled from Dell Inspiron 5160 laptop, can be swapped for GeForce FX5200.



Zaatharen's cards:

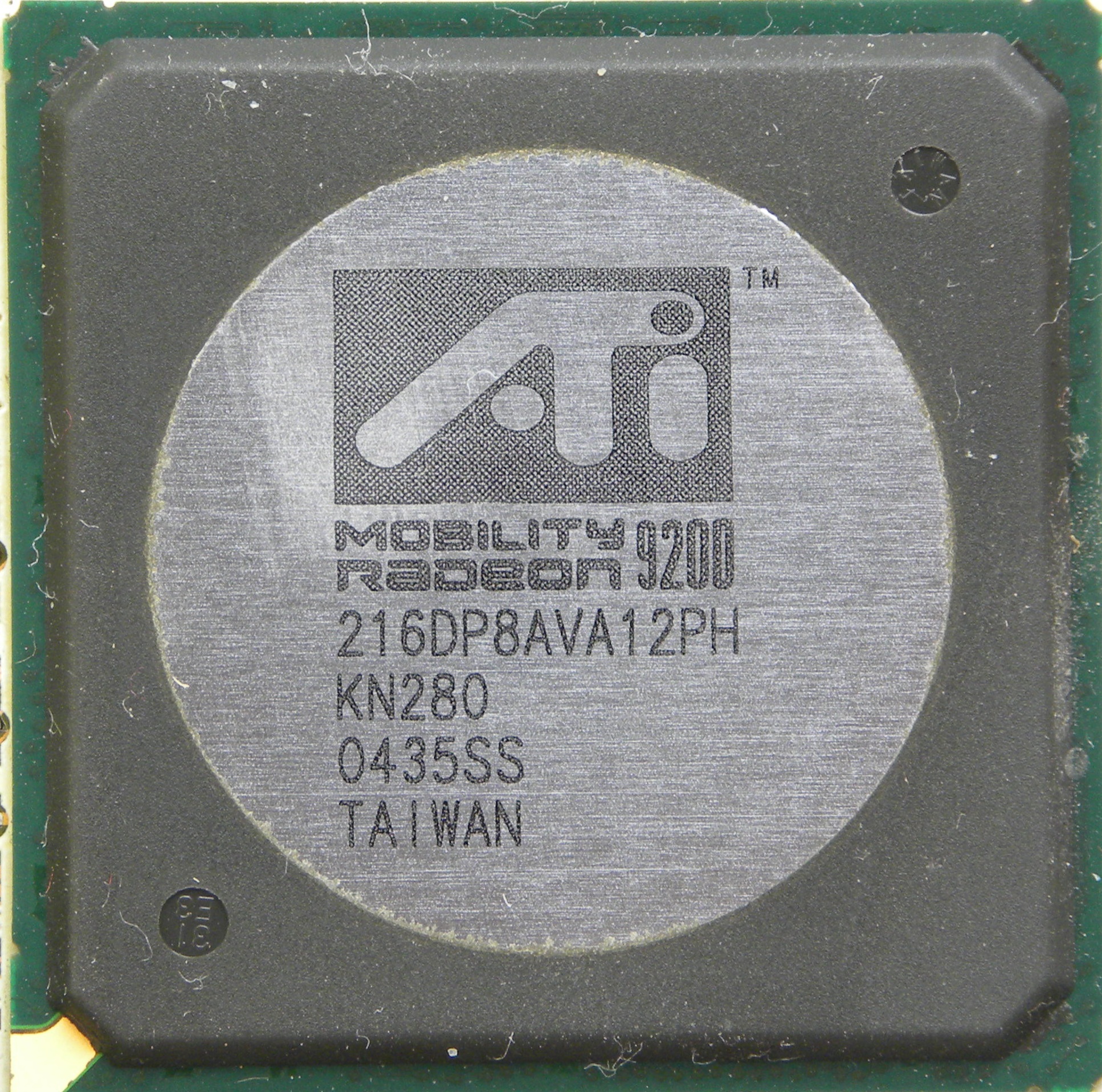

M9 GPU
M9 GPU

M9 GPU
Asus A4K/D motherboard
Asus A4K/D motherboard

Asus A4K/D motherboard
Asus A4K/D motherboard
Asus A4K/D motherboard

Asus A4K/D motherboard

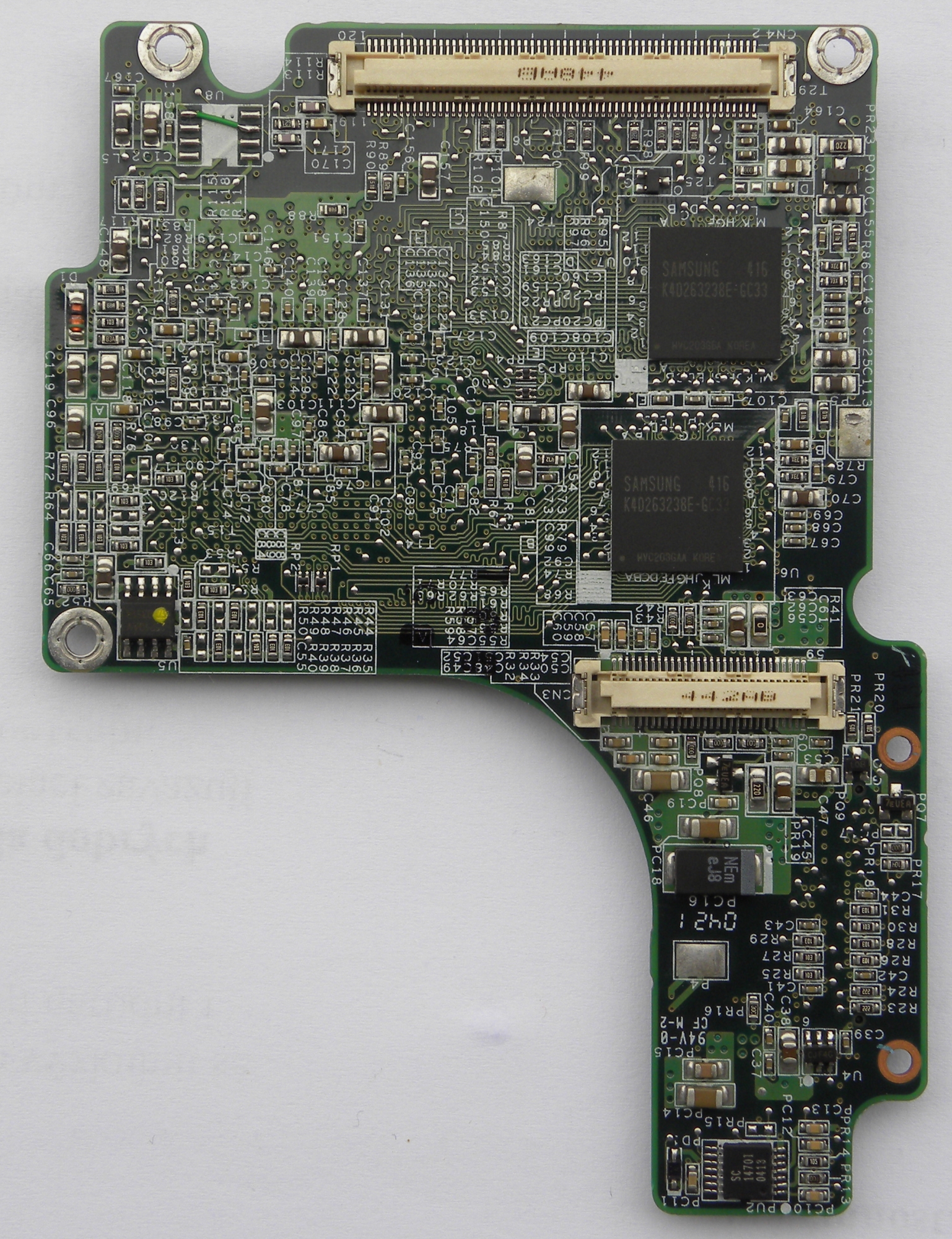

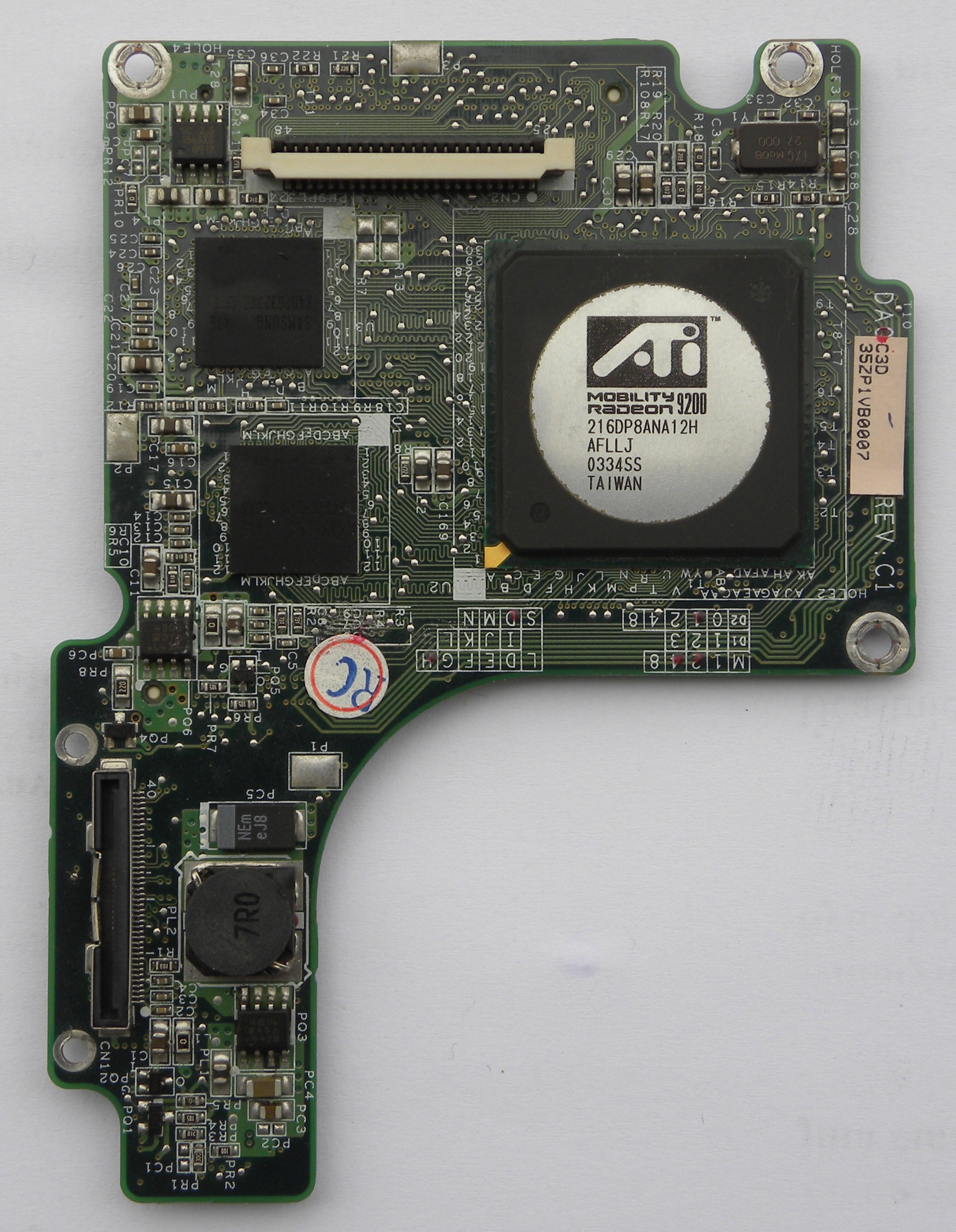

Dell Mobility Radeon 9200
Dell Mobility Radeon 9200

Dell Mobility Radeon 9200
Dell Mobility Radeon 9200
Dell Mobility Radeon 9200

Dell Mobility Radeon 9200

Additional Info

  • Made by: ATI
  • Codename: M9
  • Bus: Integrated
  • Memory Size: 64MB
  • Max Memory Size: 128MB
  • Memory Type: DDR
  • Year: 2003
  • Announce Date: Thursday, 13 March 2003
  • Card Type: VGA
  • Family: Radeon 9x
  • Manufacturer: UMC
  • Process tech: 150nm
  • Transistors (Millions): 30
  • Made in: Taiwan
  • Owned by: Zaatharen
  • Outputs: 15 pin D‐sub, S-Video
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX8.1
  • OpenGL: 1.5
  • Core Clock (MHz): 250
  • Core: 128bit
  • Memory Clock (MHz): 400
  • Memory Bus Width: 128bit
  • Memory Bandwidth (MB/s): 6400
  • Pixel Pipelines: 4
  • Texture Units: 4
  • Vertex Shaders: 1 (1.1)
  • Pixel Shaders: 4 (1.4)
  • Pixel Fillrate (MPixel/s): 1000
  • Texel Fillrate (MTexel/s): 1000
  • Sold by: Dell Asus
  • Max Core Clock (MHz): 250
  • Min Core Clock (MHz): 66
  • Max Memory Clock (MHz): 400
  • Min Memory Clock (MHz): 200
  • Ramdac (MHz): 400
