ATI 3D Rage Pro AGP 2x

Written by
Rate this item
(0 votes)

Improved Ramdac, DVD acceleration (enhanced motion compensation), added texture compositing and vector quantization compression. Version with AGP 2x support.

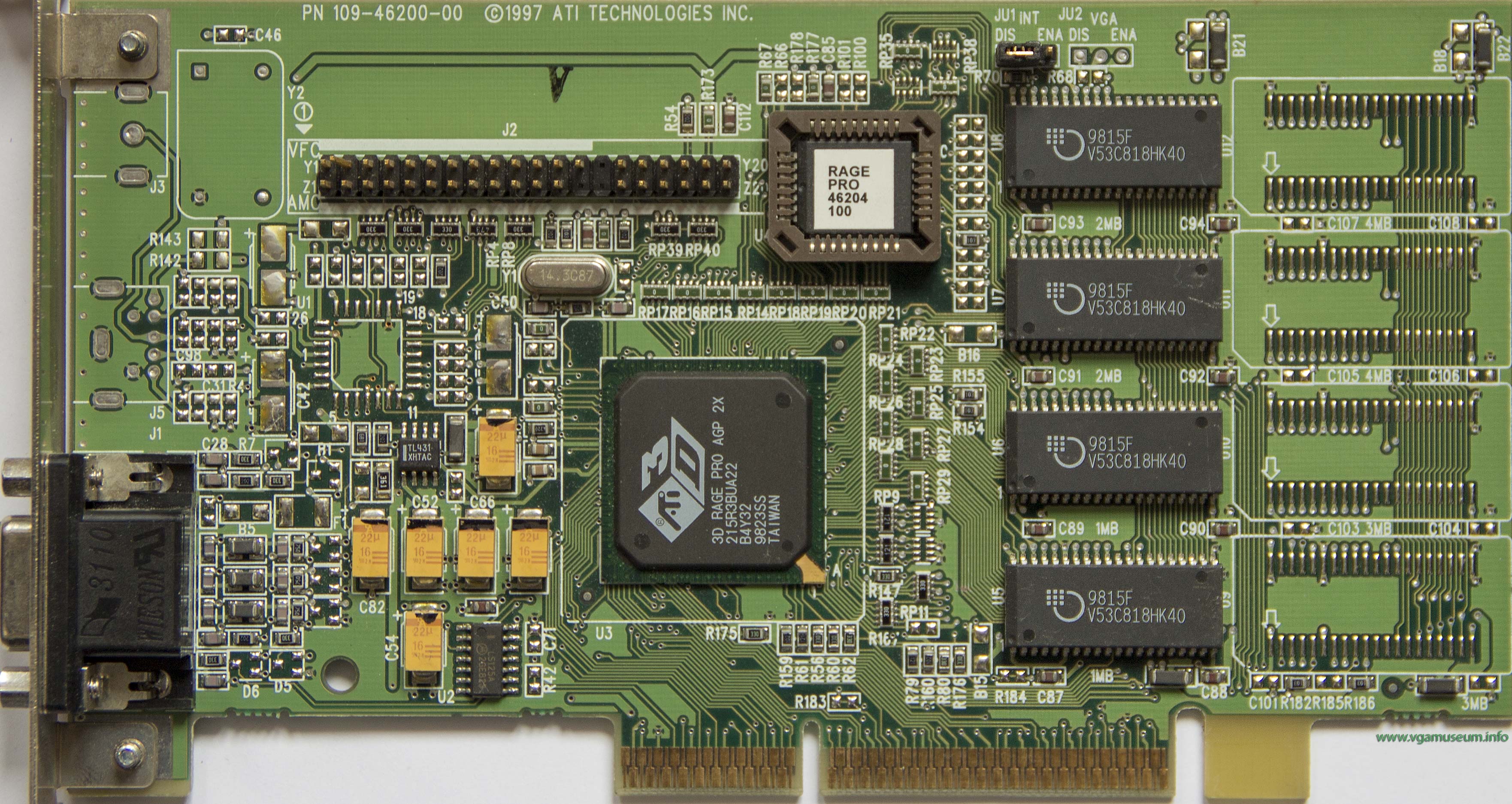

Also known as ATI-264GB. EDO version (ATi Xpert XL) have memory clock 62,8MHz.
Prices: Xpert@Work 8MB - $230, Xpert@Play 8MB - $250, All-In-Wonder Pro 4MB - PCI $280, AGP $290

Palcal's cards:

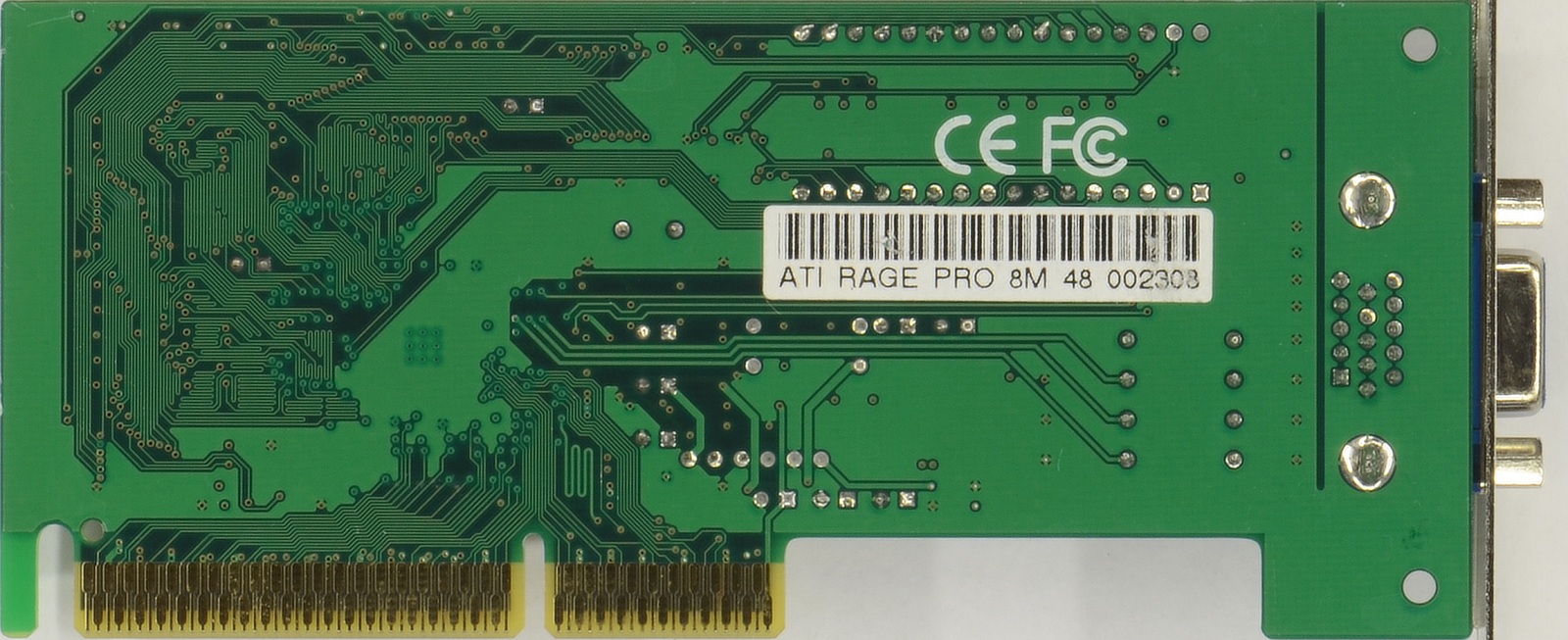

(815) noname
(815) noname

(815) noname

(815) noname
(815) noname

(815) noname

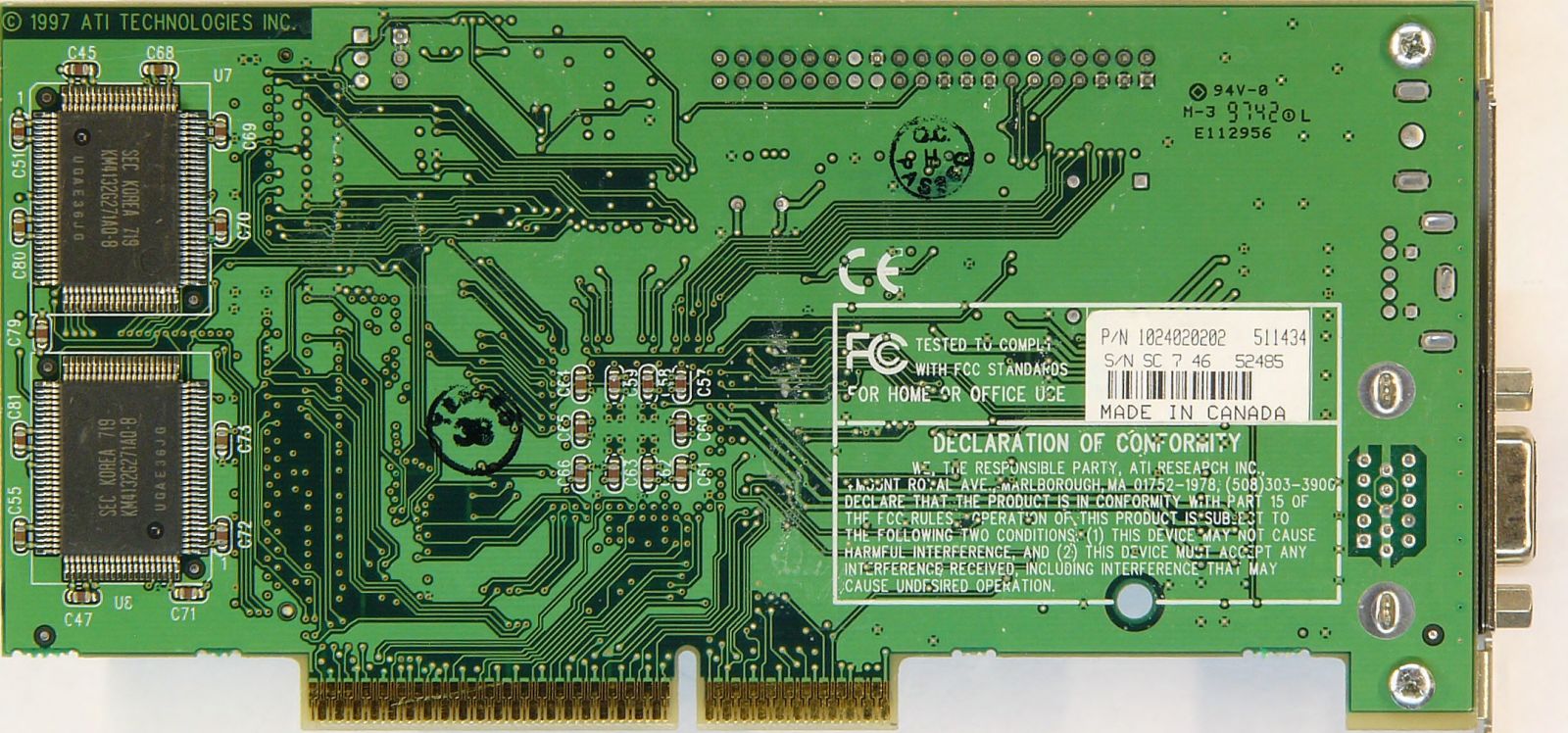

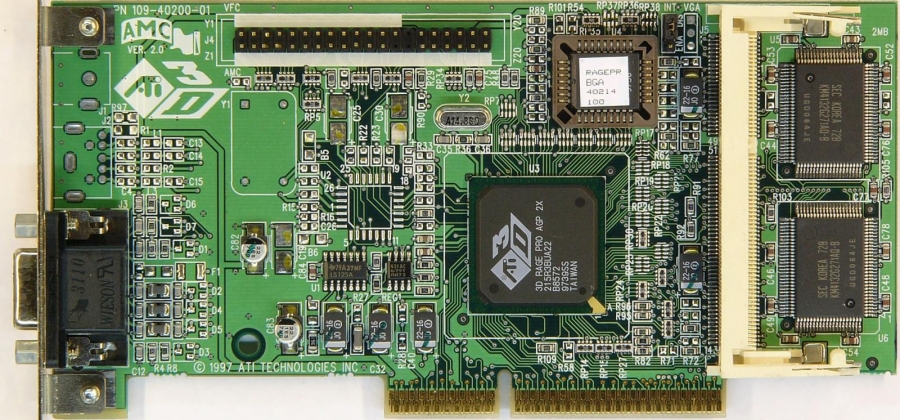

(32) ATi Xpert@Work
(32) ATi Xpert@Work

(32) ATi Xpert@Work

(32) ATi Xpert@Work
(32) ATi Xpert@Work

(32) ATi Xpert@Work

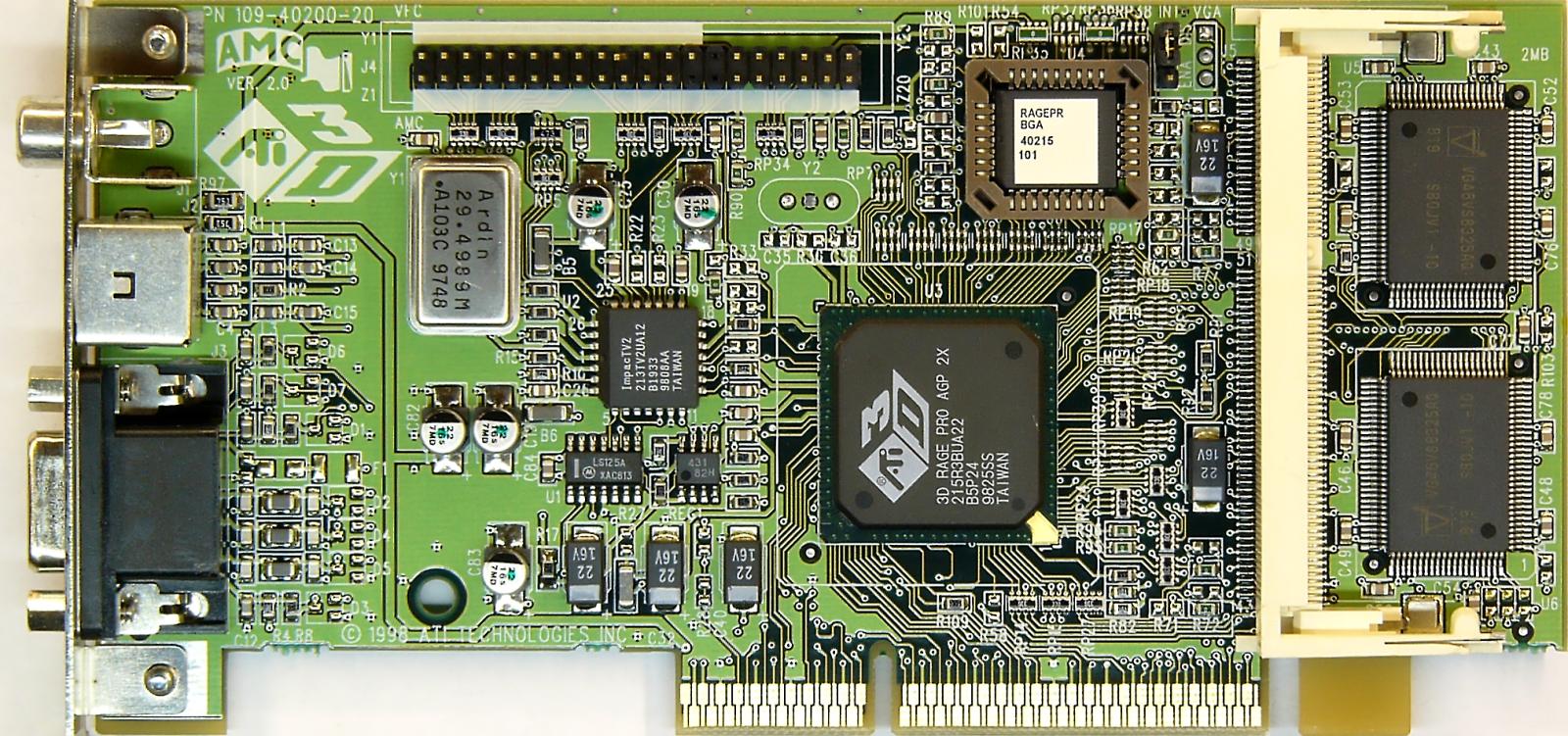

(468) ATi Xpert@Play
(468) ATi Xpert@Play

(468) ATi Xpert@Play

(468) ATi Xpert@Play
(468) ATi Xpert@Play

(468) ATi Xpert@Play

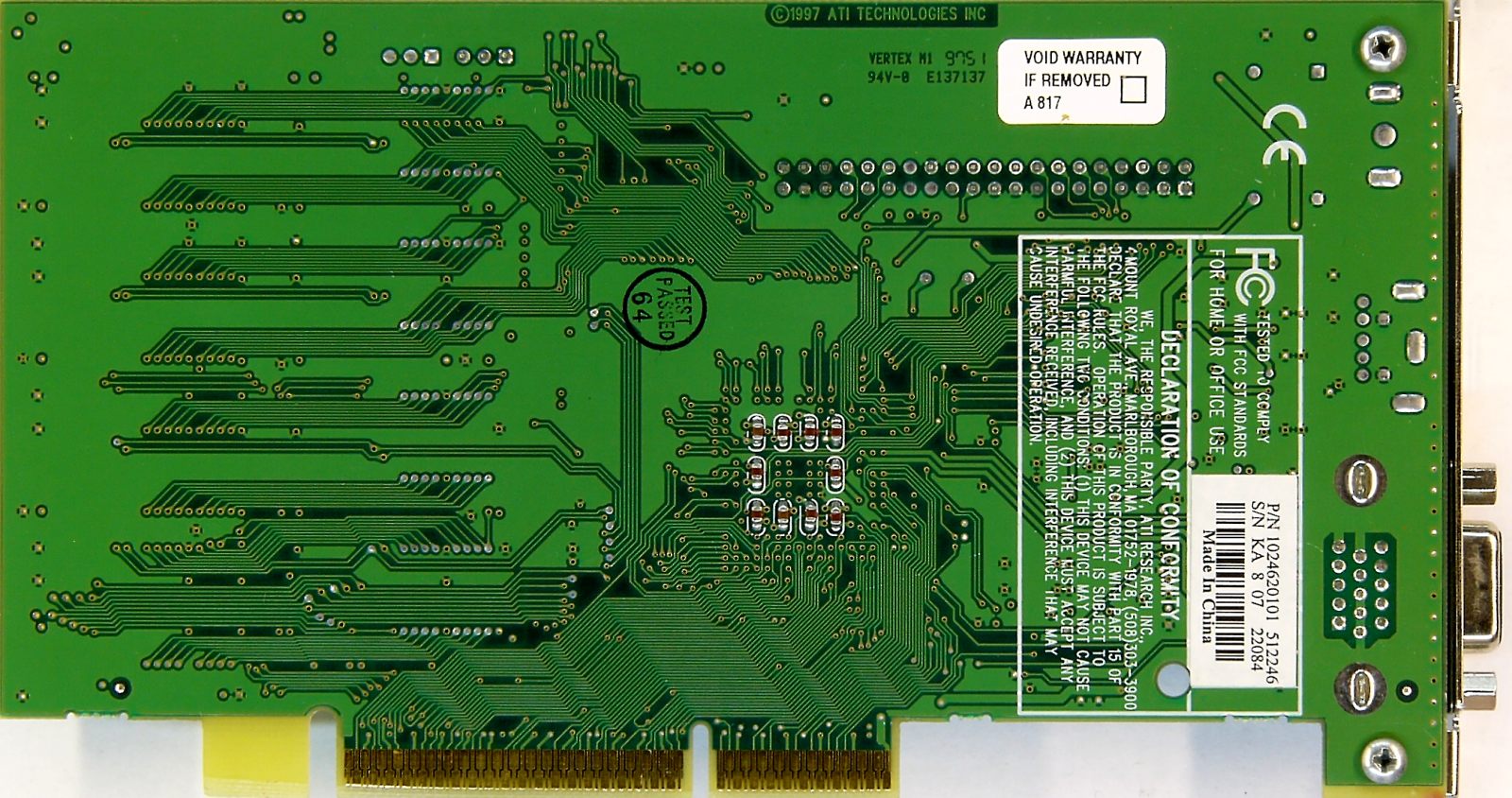

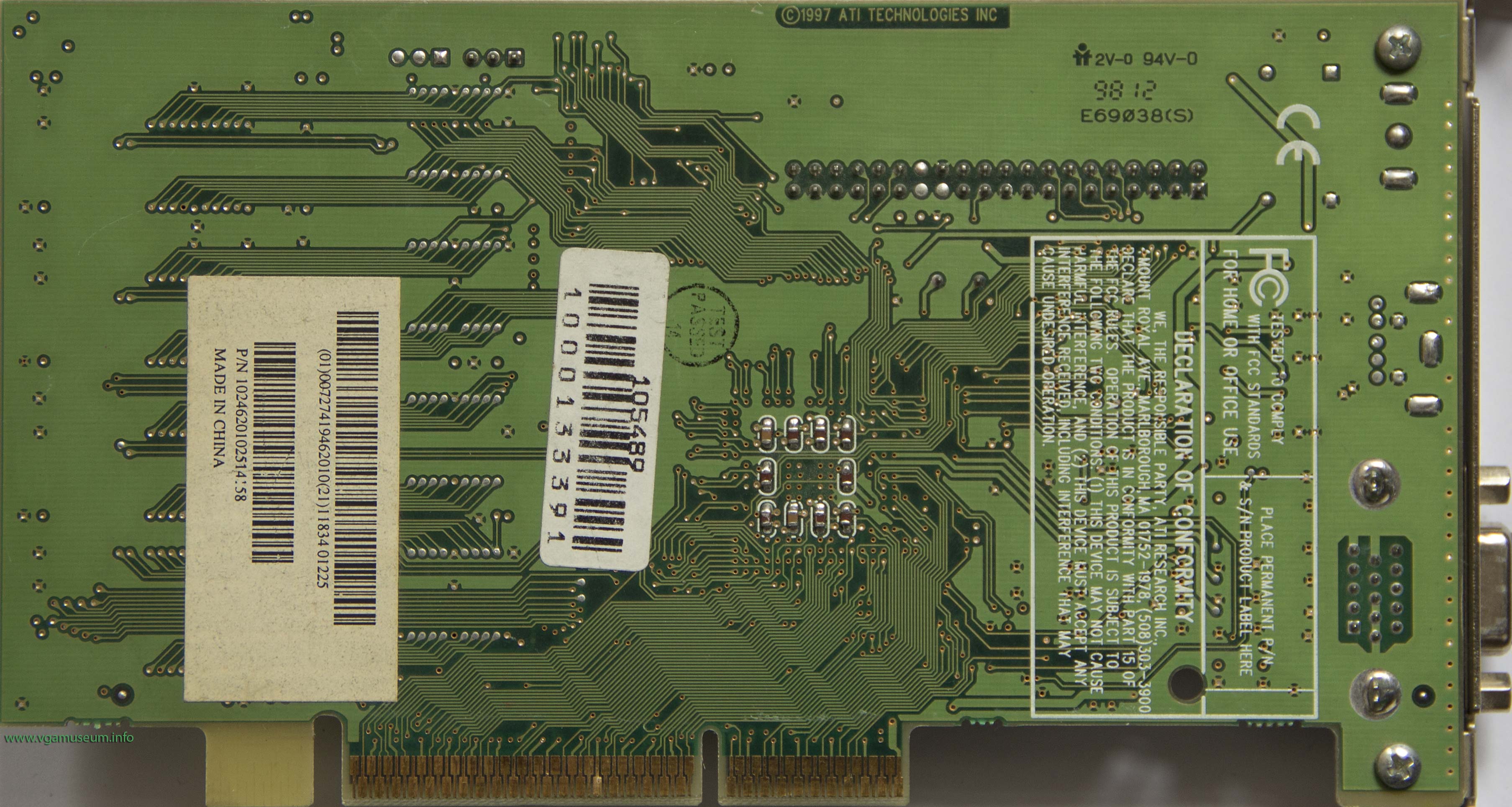

(439) ATi Xpert XL
(439) ATi Xpert XL

(439) ATi Xpert XL

(439) ATi Xpert XL
(439) ATi Xpert XL

(439) ATi Xpert XL

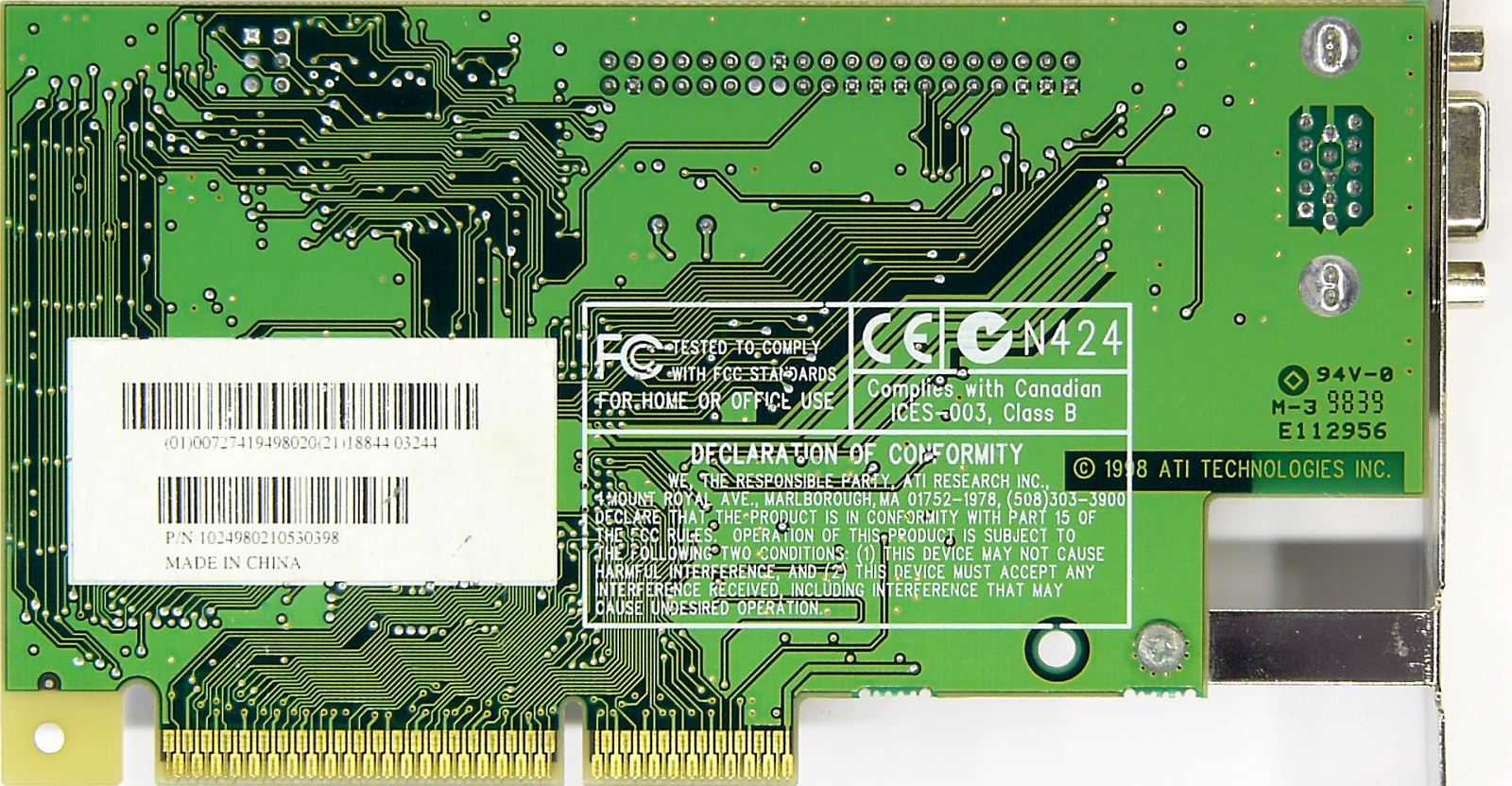

(556) p.n.109-49800-10
(556) p.n.109-49800-10

(556) p.n.109-49800-10

(556) p.n.109-49800-10
(556) p.n.109-49800-10

(556) p.n.109-49800-10

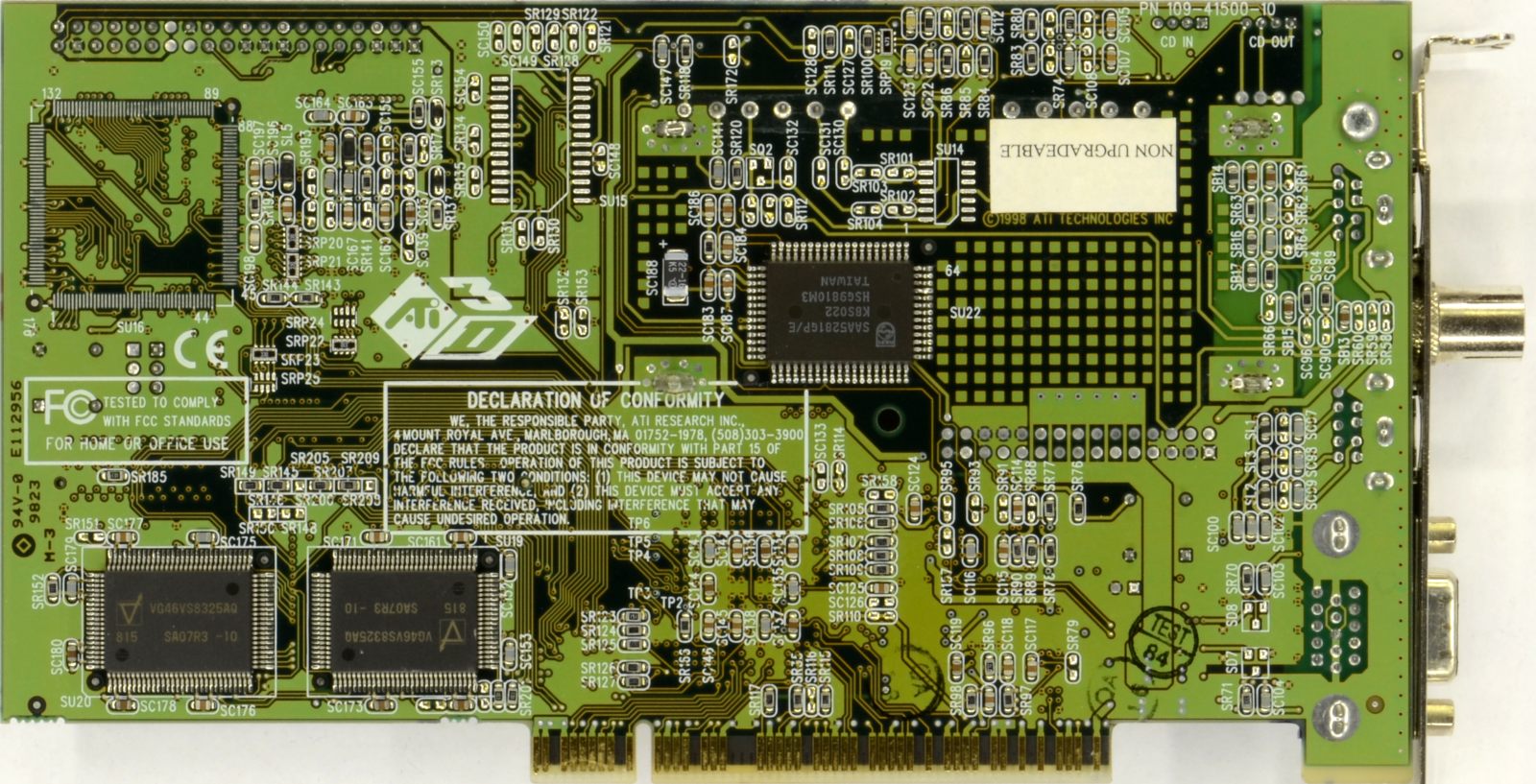

(782) All-In-Wonder Pro
(782) All-In-Wonder Pro

(782) All-In-Wonder Pro

(782) All-In-Wonder Pro
(782) All-In-Wonder Pro

(782) All-In-Wonder Pro



Vlask's cards:

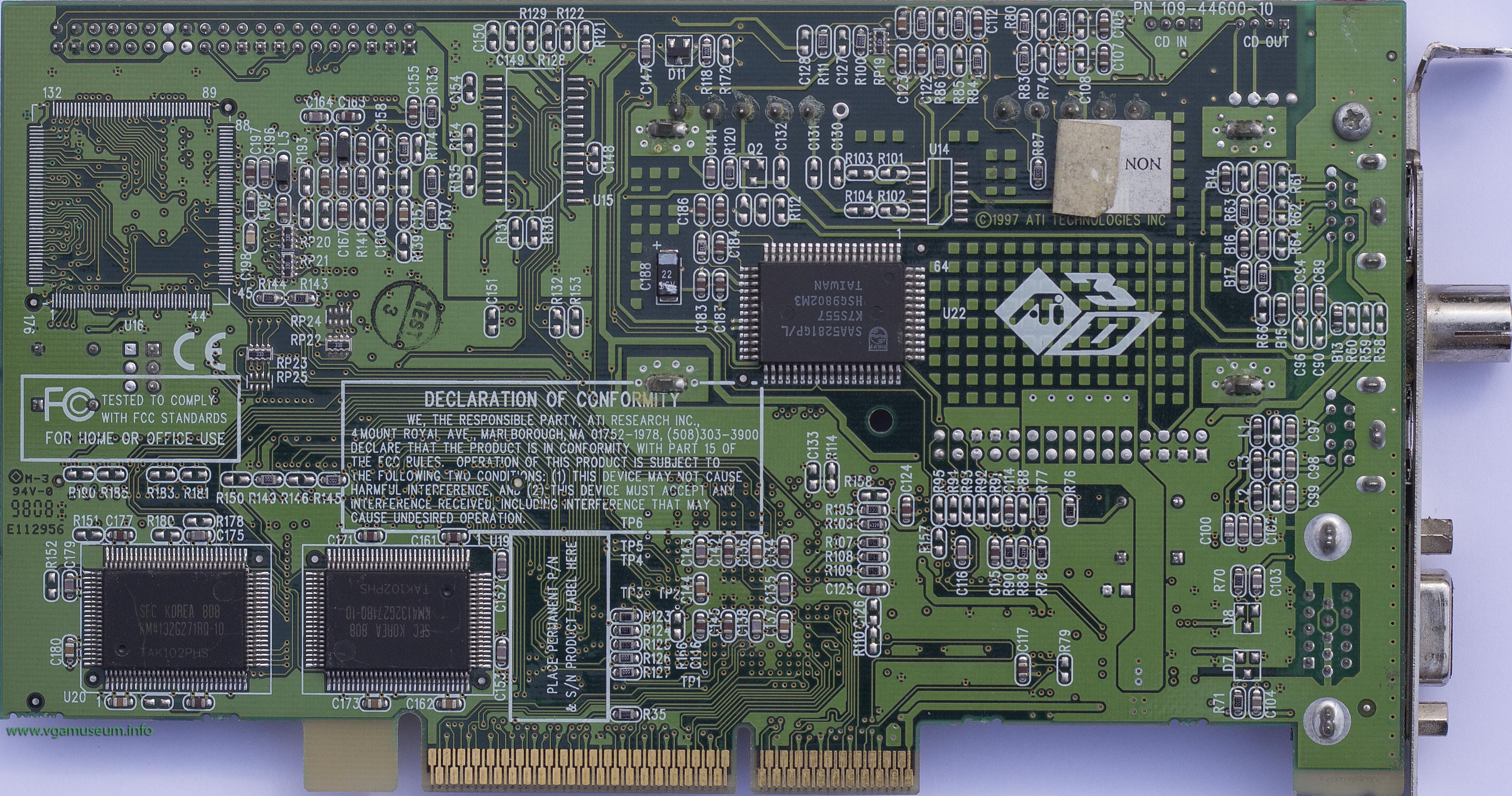

ATi All-In-Wonder Pro
ATi All-In-Wonder Pro

ATi All-In-Wonder Pro

ATi All-In-Wonder Pro
ATi All-In-Wonder Pro

ATi All-In-Wonder Pro

ATi Xpert XL HQ
ATi Xpert XL HQ

ATi Xpert XL HQ

ATi Xpert XL HQ
ATi Xpert XL HQ

ATi Xpert XL HQ



Zaatharen's cards:

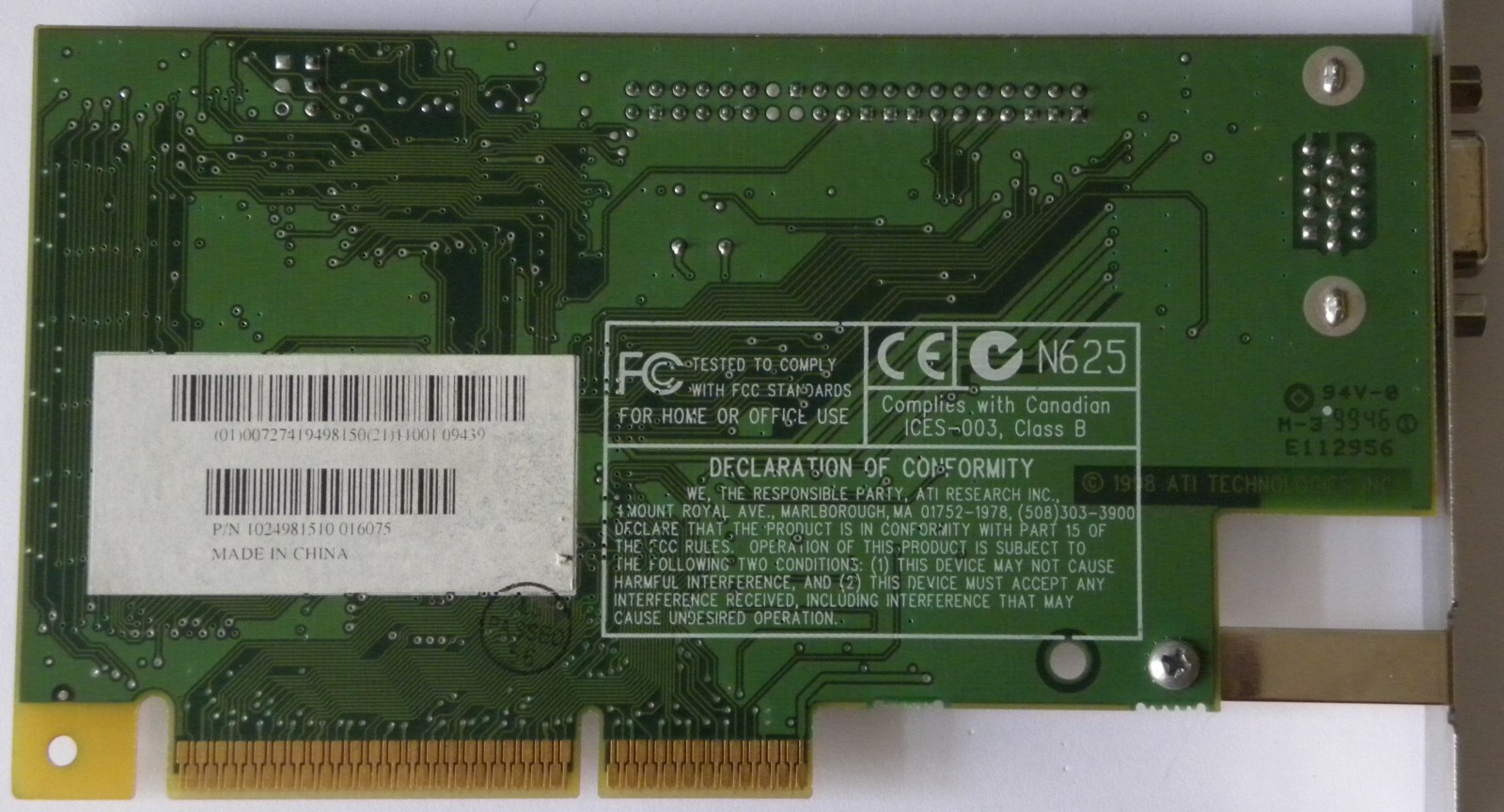

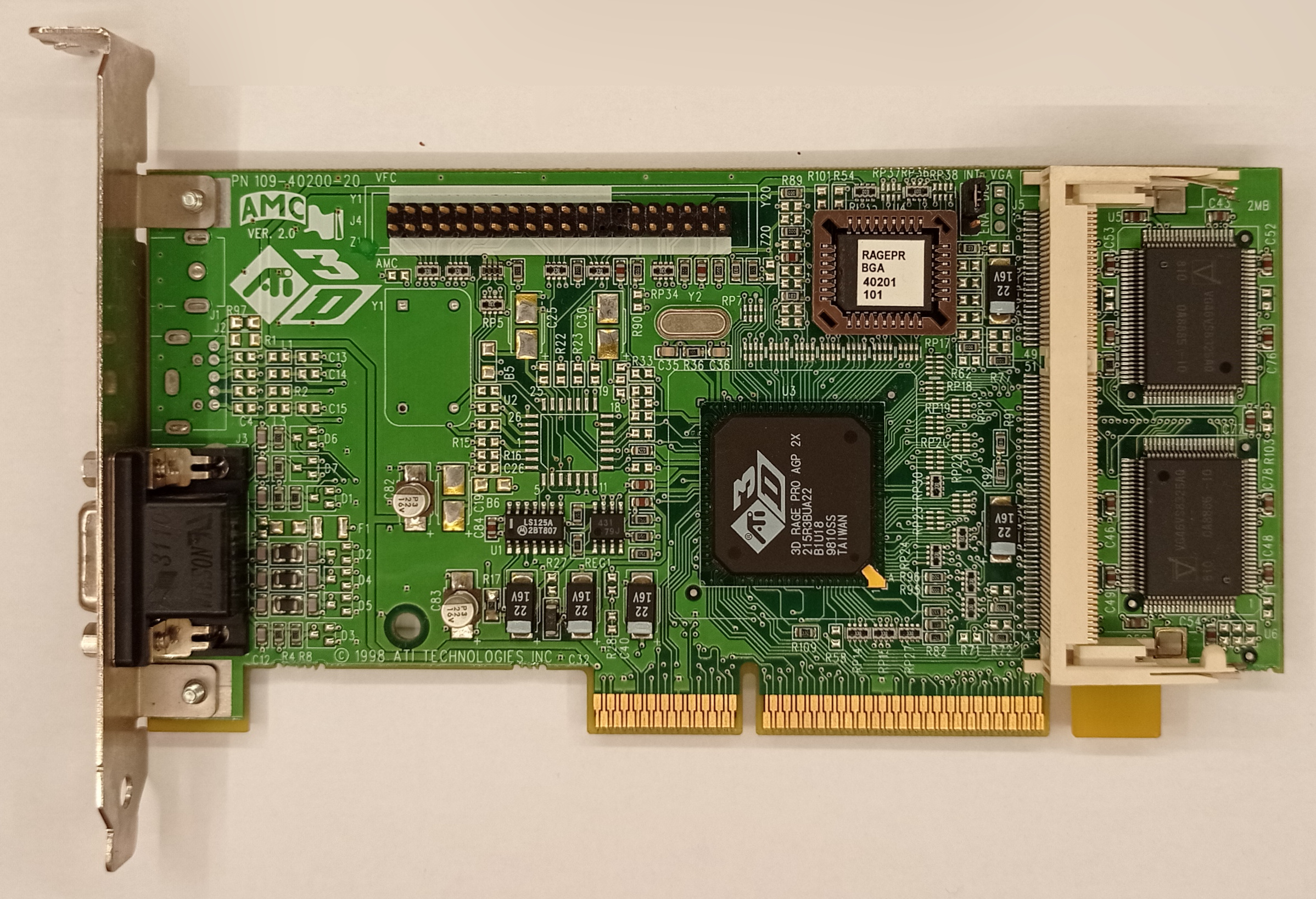

ATi Rage 3D PRO AGP2x
ATi Rage 3D PRO AGP2x

ATi Rage 3D PRO AGP2x

ATi Rage 3D PRO AGP2x
ATi Rage 3D PRO AGP2x

ATi Rage 3D PRO AGP2x

ATi Xpert XL
ATi Xpert XL

ATi Xpert XL

ATi Xpert XL
ATi Xpert XL

ATi Xpert XL

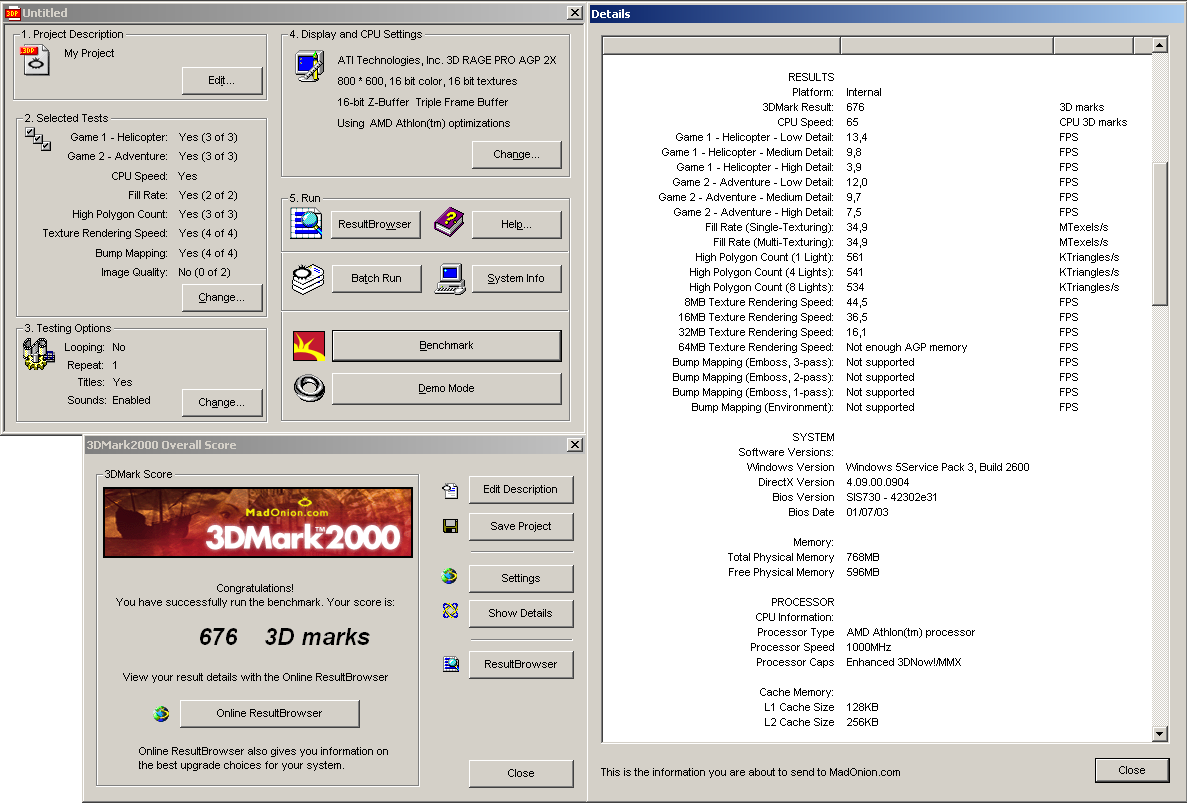

3DMark 2000 results
3DMark 2000 results

3DMark 2000 results

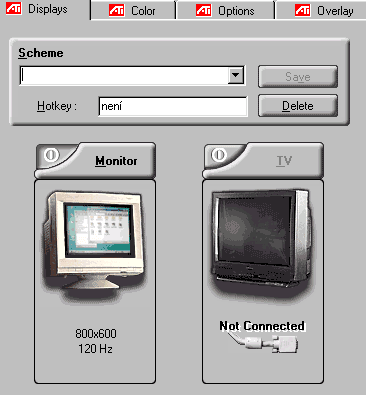

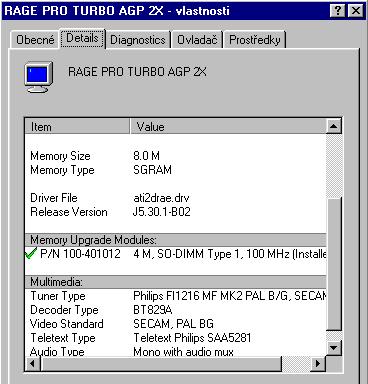

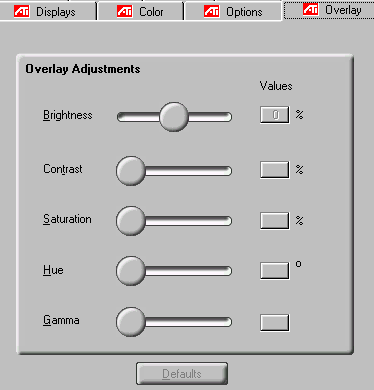

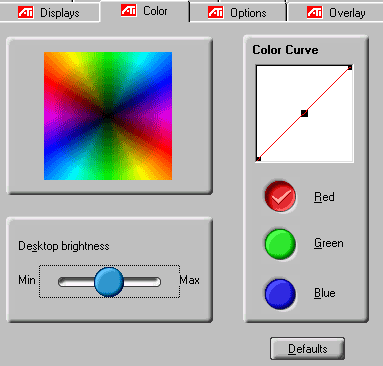

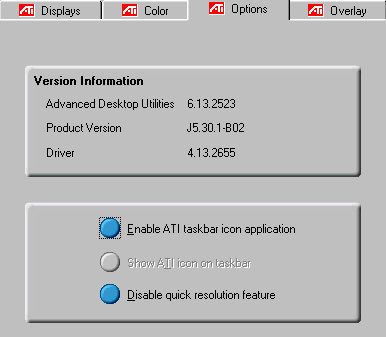

Drivers:

Drivers
Drivers

Drivers

Drivers
Drivers

Drivers

Drivers
Drivers

Drivers

Drivers
Drivers

Drivers

Drivers
Drivers

Drivers

Additional Info

  • Made by: ATI
  • Codename: 3D Rage Pro
  • Bus: PCI, AGP 2x
  • Memory Size: 4MB, 8MB
  • Max Memory Size: 16MB
  • Memory Type: EDO, SGRAM, SDR
  • Year: 1997
  • Card Type: VGA
  • Family: Rage
  • Manufacturer: UMC
  • Process tech: 350nm
  • Made in: Taiwan
  • Owned by: Vlask, Palcal, Zaatharen
  • Outputs: 15 pin D‐sub, RCA/CINCH, S-Video, VIVO
  • Power consumption (W): 4.2
  • Price $: 290
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX5
  • OpenGL: 1.1
  • Core Clock (MHz): 75
  • Core: 64bit
  • Memory Clock (MHz): 100
  • Memory Bus Width: 64bit
  • Memory Bandwidth (MB/s): 800
  • Pixel Pipelines: 1
  • Texture Units: 1
  • Pixel Fillrate (MPixel/s): 45
  • Triangle/Vertices Rate (M/s): 1.2
  • Sold by: ATI
  • Max Memory Clock (MHz): 100
  • Min Memory Clock (MHz): 63
  • Ramdac (MHz): 230
