AMD Radeon HD 6850

Written by
Rate this item
(0 votes)

Mainstream desktop card.



About 20% more powerfull than Radeon HD4890 with only about 127W TDP, card supports CrossFire and Eyefinity. Card can be slightly overclocked with reference cooling, i was able to get 825MHz on core and 4200MHz on memory chips stable without messing with voltage.

Zaatharen's card:

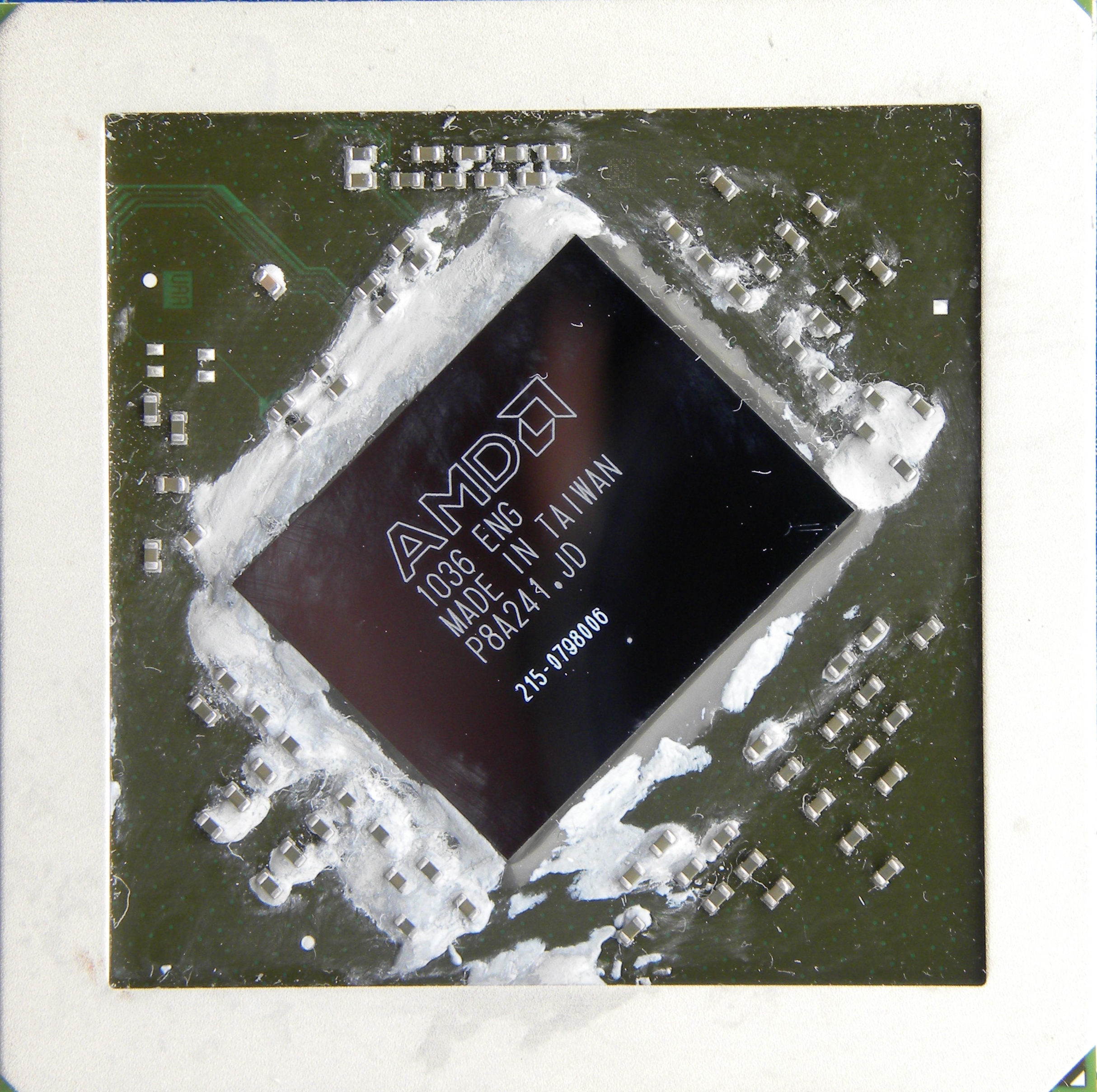

Barts GPU
Barts GPU

Barts GPU
Sapphire Radeon HD6850
Sapphire Radeon HD6850

Sapphire Radeon HD6850
Sapphire Radeon HD6850
Sapphire Radeon HD6850

Sapphire Radeon HD6850
Sapphire Radeon HD6850
Sapphire Radeon HD6850

Sapphire Radeon HD6850

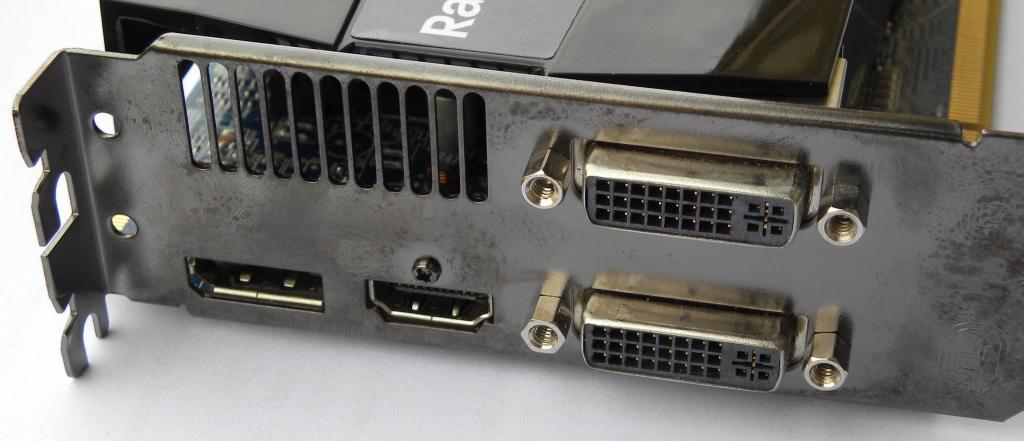

Video outputs
Video outputs

Video outputs

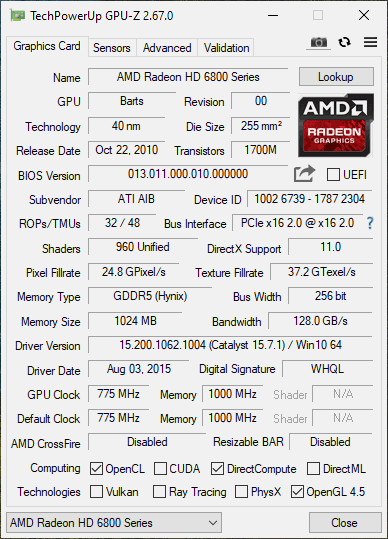

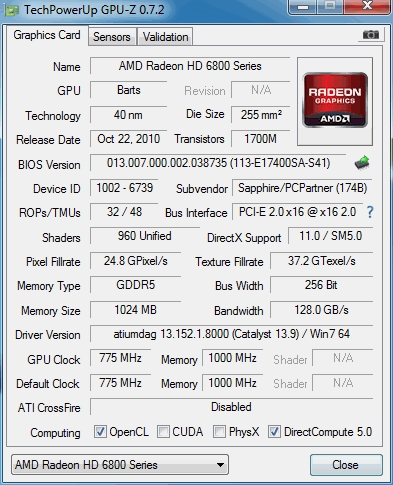

GPU-Z
GPU-Z

GPU-Z





Vlask's card:

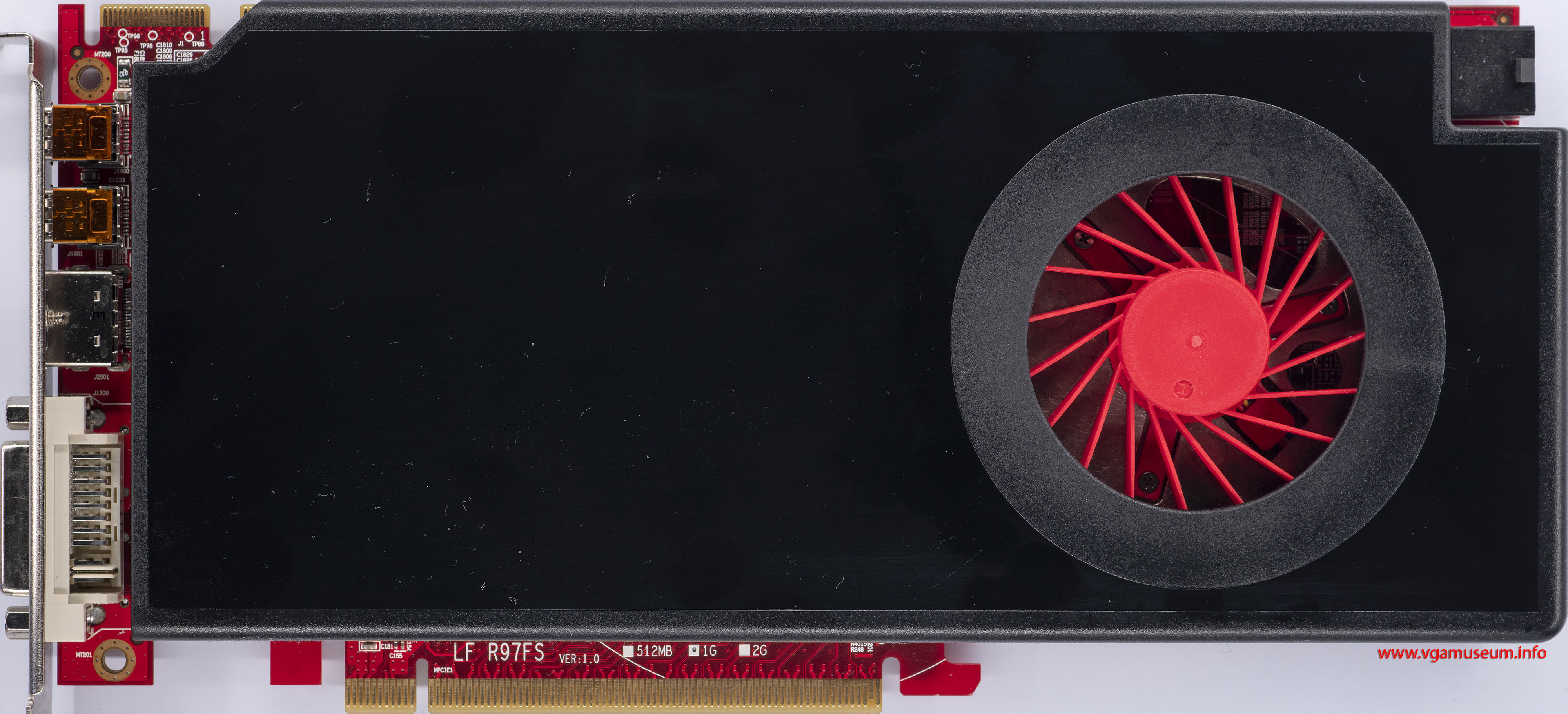

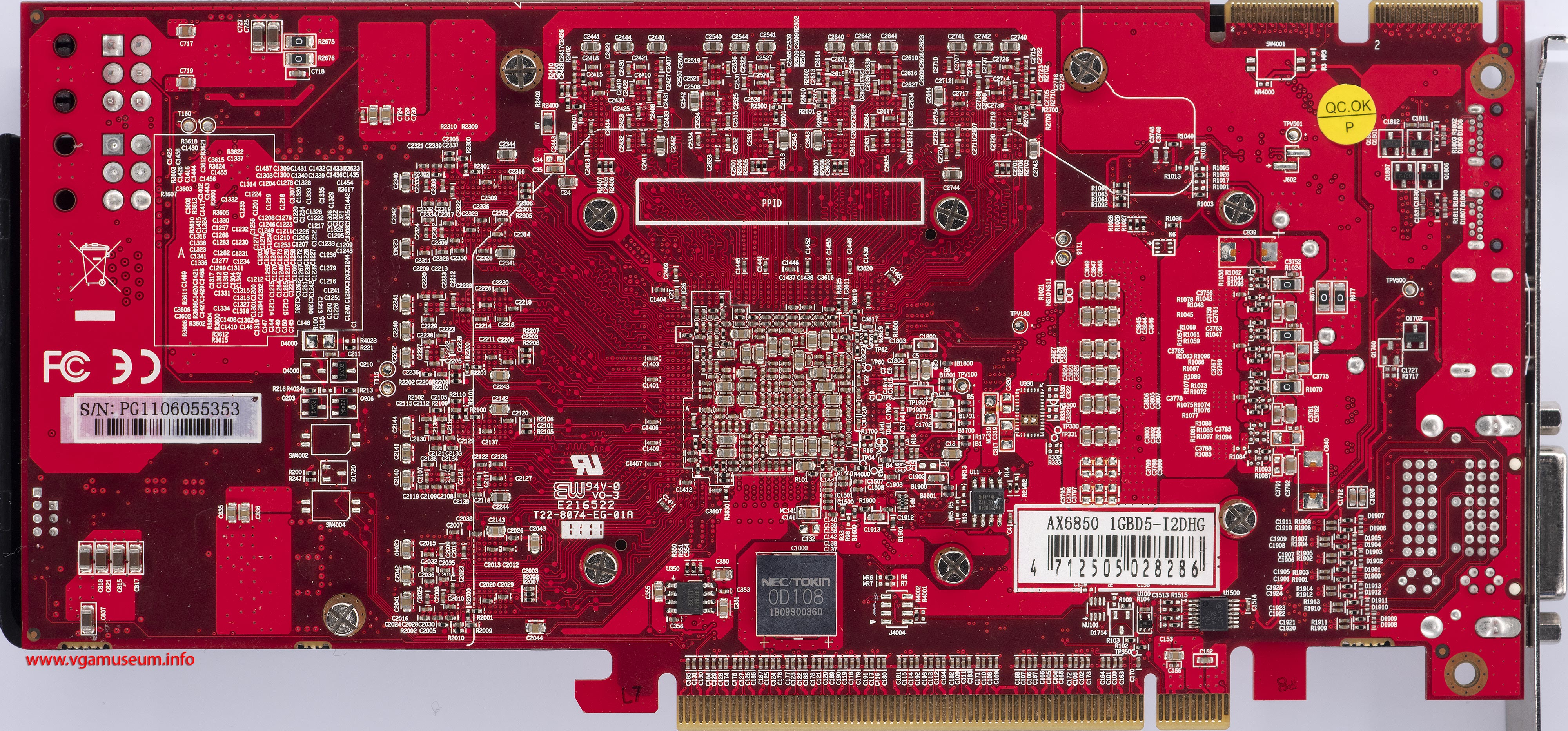

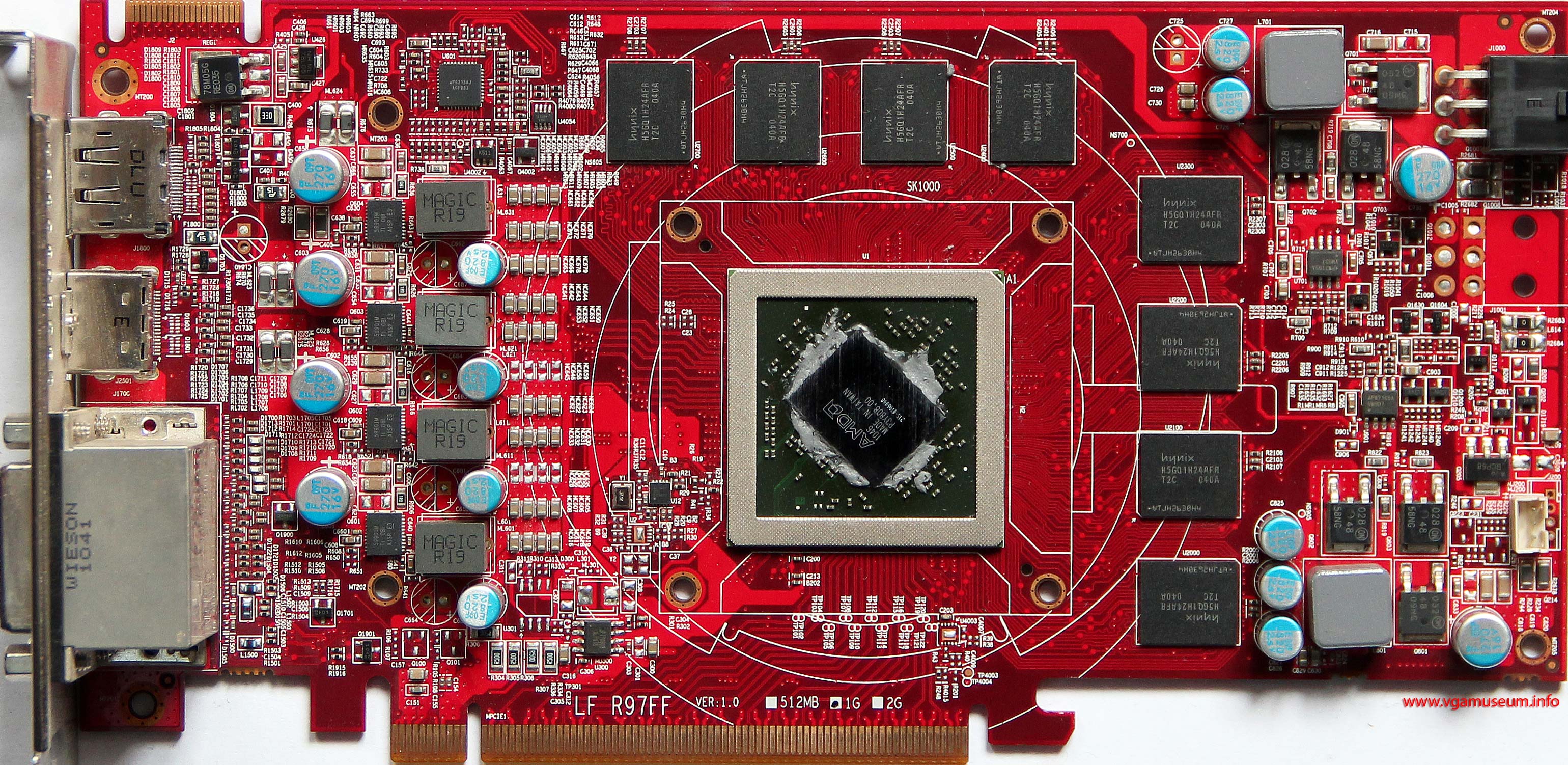

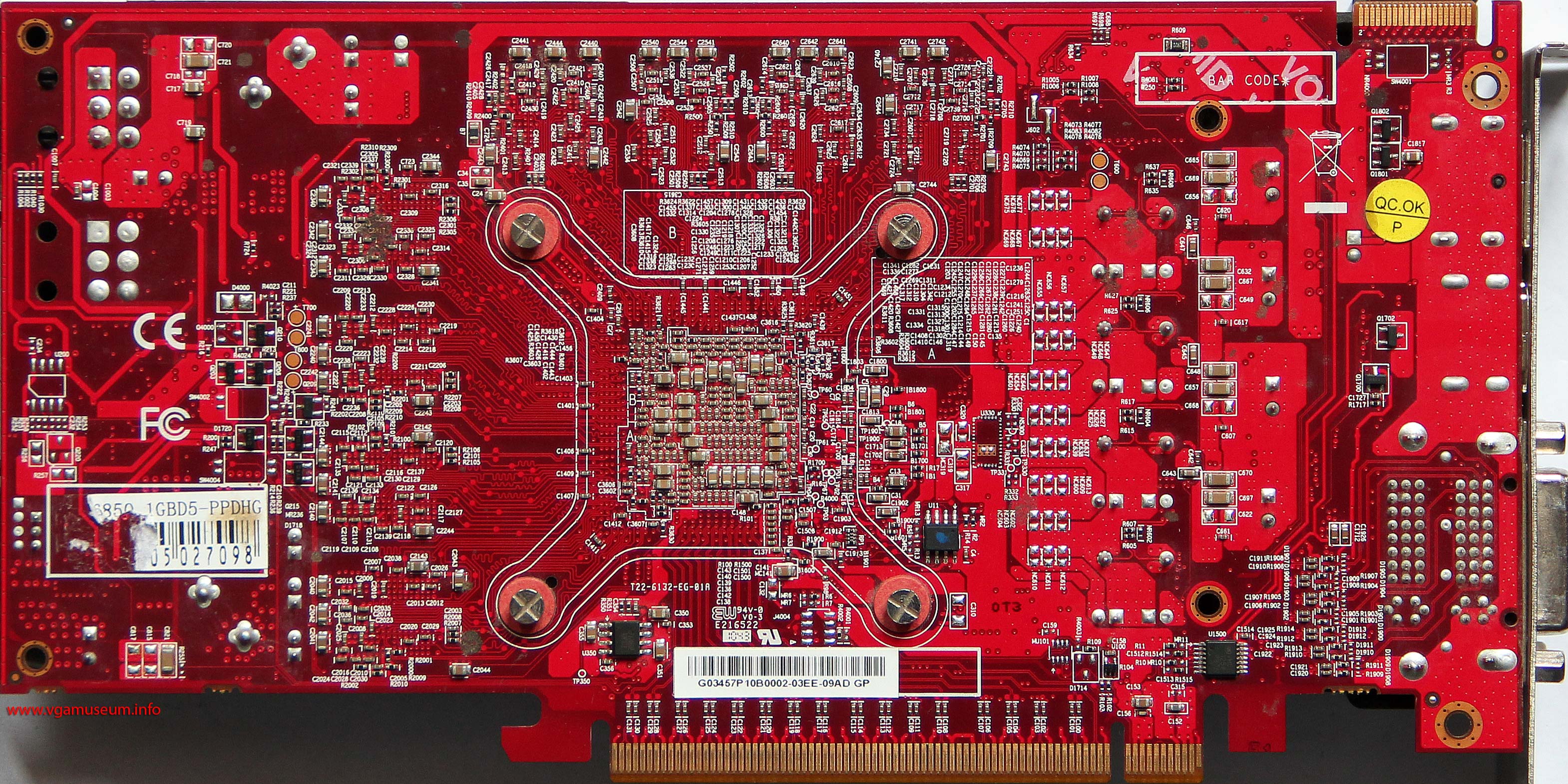

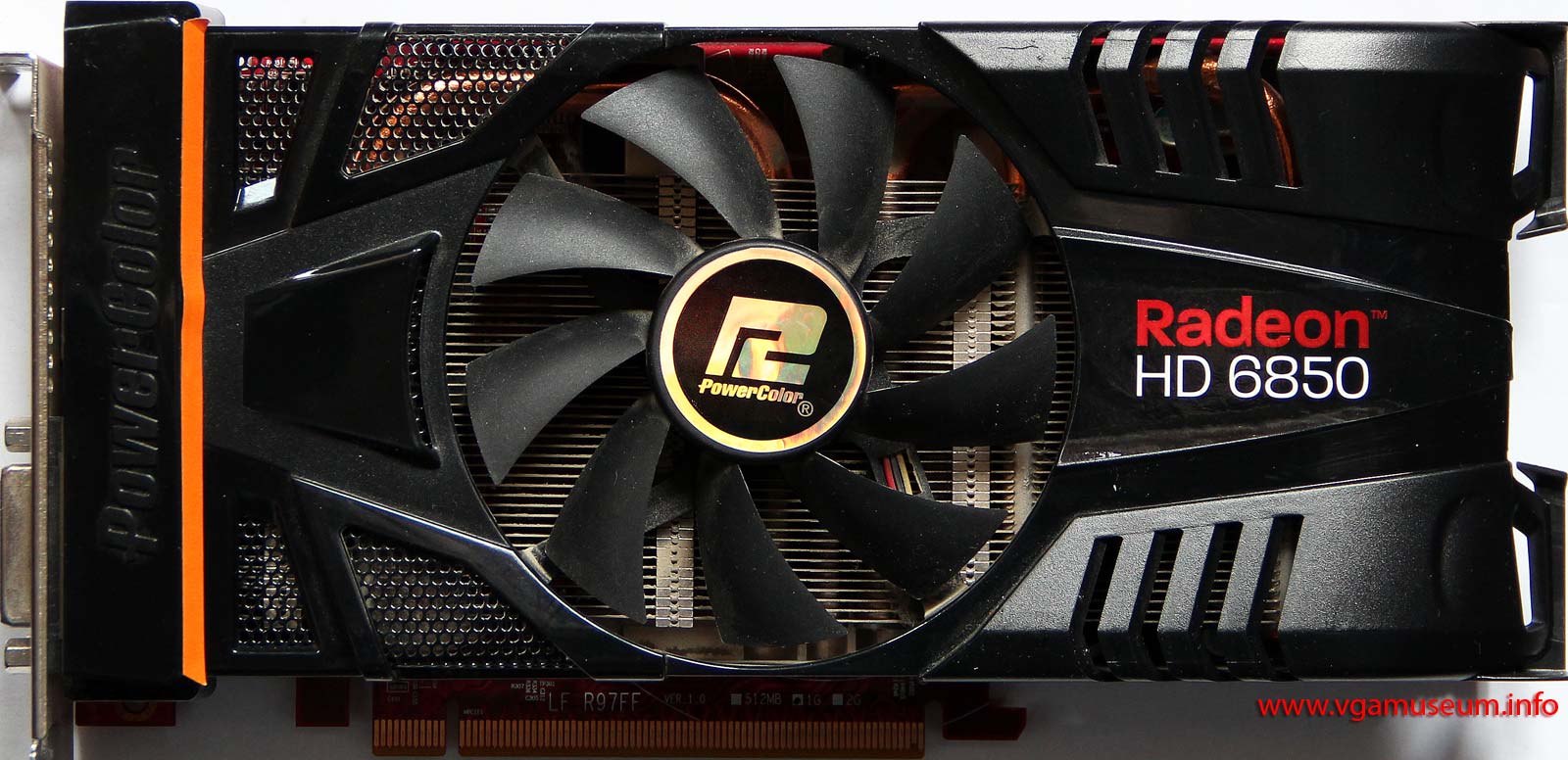

Powercolor Radeon HD 6850
Powercolor Radeon HD 6850

Powercolor Radeon HD 6850
Powercolor Radeon HD 6850
Powercolor Radeon HD 6850

Powercolor Radeon HD 6850

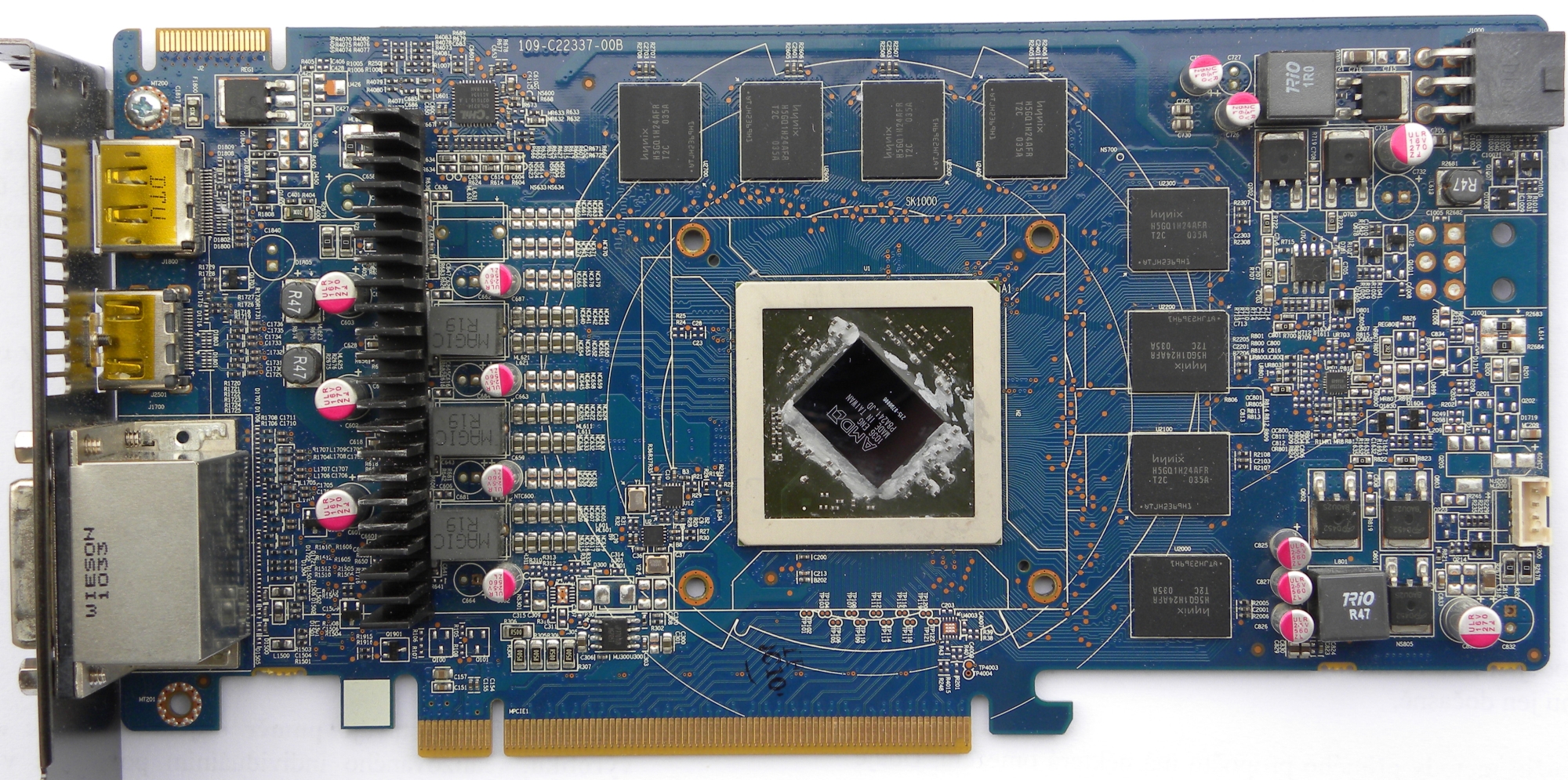

Powercolor Radeon HD 6850 HQ
Powercolor Radeon HD 6850 HQ

Powercolor Radeon HD 6850 HQ
Powercolor Radeon HD 6850 HQ
Powercolor Radeon HD 6850 HQ

Powercolor Radeon HD 6850 HQ

Additional Info

  • Made by: AMD
  • Codename: Barts
  • Bus: PCI-E 2 x16
  • Memory Size: 1GB
  • Max Memory Size: 2GB
  • Memory Type: GDDR5
  • Year: 2010
  • Announce Date: Friday, 22 October 2010
  • Card Type: VGA
  • Family: Radeon HD6x
  • Manufacturer: TSMC
  • Process tech: 40nm
  • Transistors (Millions): 1700
  • Made in: Taiwan
  • Owned by: Zaatharen, Vlask (chip/not working)
  • Outputs: DVI, HDMI, DisplayPort
  • Power consumption (W): 127
  • Price $: 179
  • Video Acceleration: MPEG-4 AVC (H.264)
  • DirectX: DX11
  • OpenGL: 4.1
  • Core Clock (MHz): 775
  • Core: 256bit
  • Memory Clock (MHz): 4000
  • Memory Bus Width: 256bit
  • Memory Bandwidth (MB/s): 128000
  • Pixel Pipelines: 32
  • Texture Units: 48
  • Unified Shaders: 960
  • Shader Model: 5.0 (DX11)
  • Pixel Fillrate (MPixel/s): 24800
  • Texel Fillrate (MTexel/s): 37200
  • Sold by: Sapphire PowerColor
  • Ramdac (MHz): 400
