Monday, 30 March 2015 21:17

ATI FireGL 8800

Written by
Rate this item
(0 votes)

Fully active R200GL core. Professional card. Based on Radeon 8500.



Zaatharen's chip:

ATI  RV200GL GPU
ATI RV200GL GPU

ATI RV200GL GPU

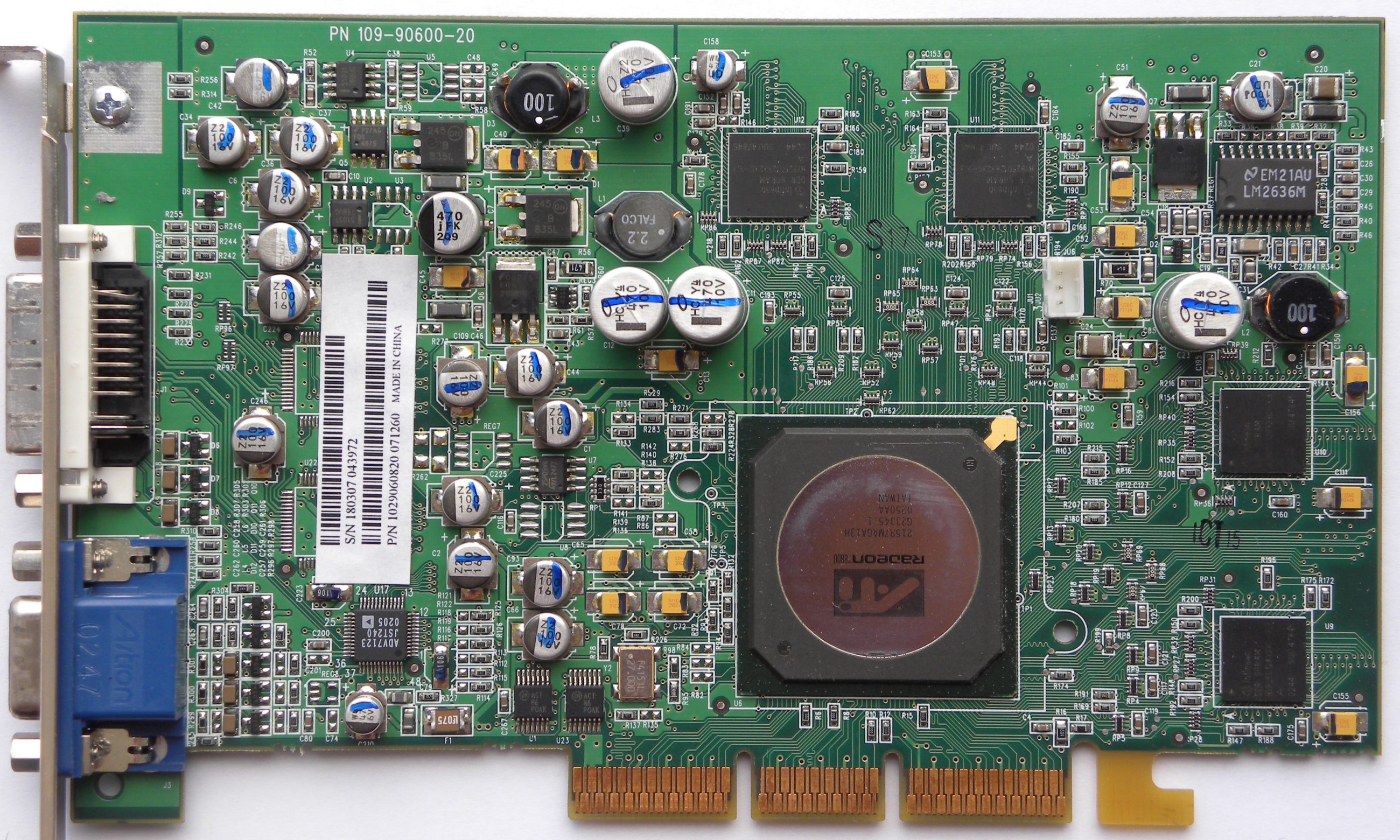

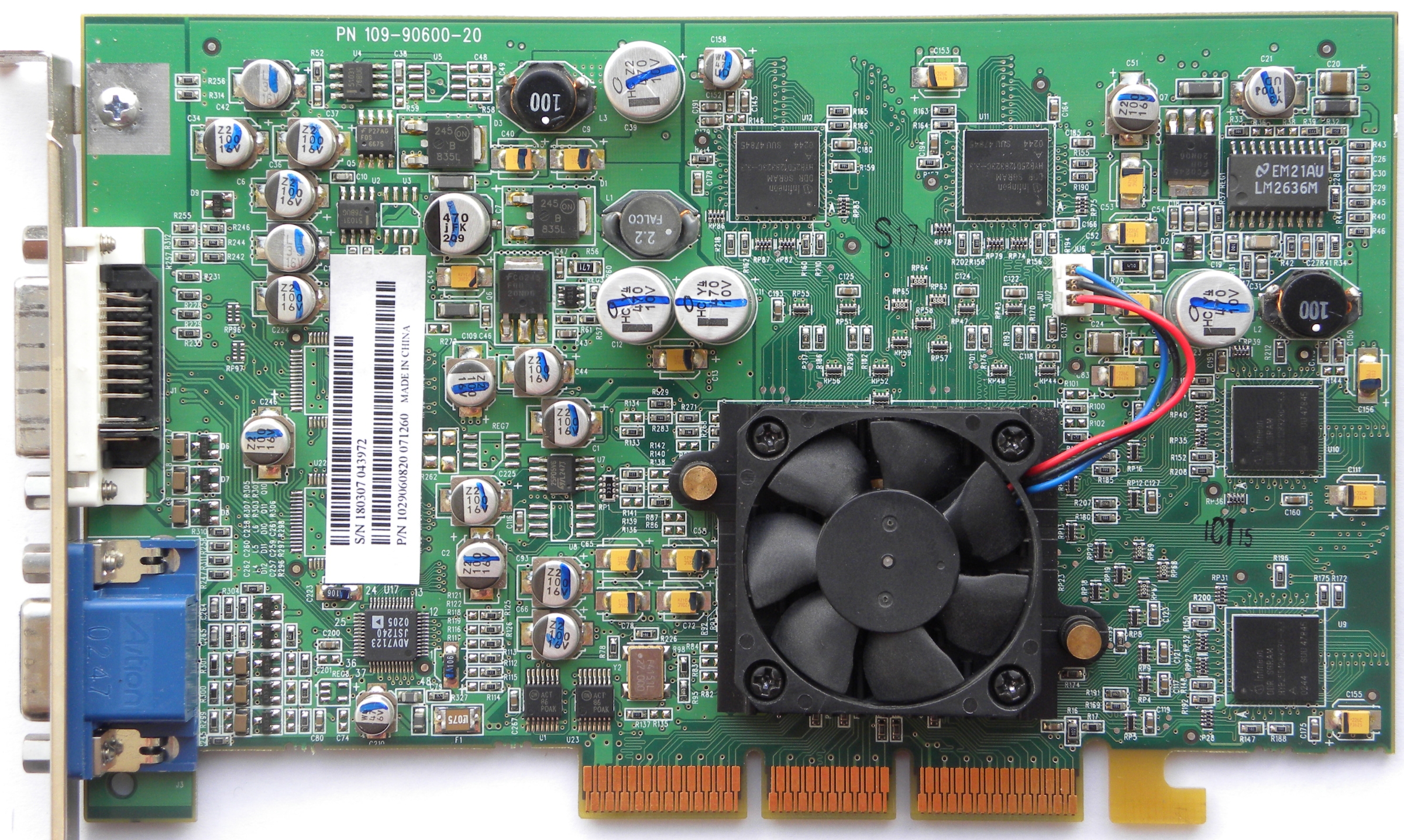

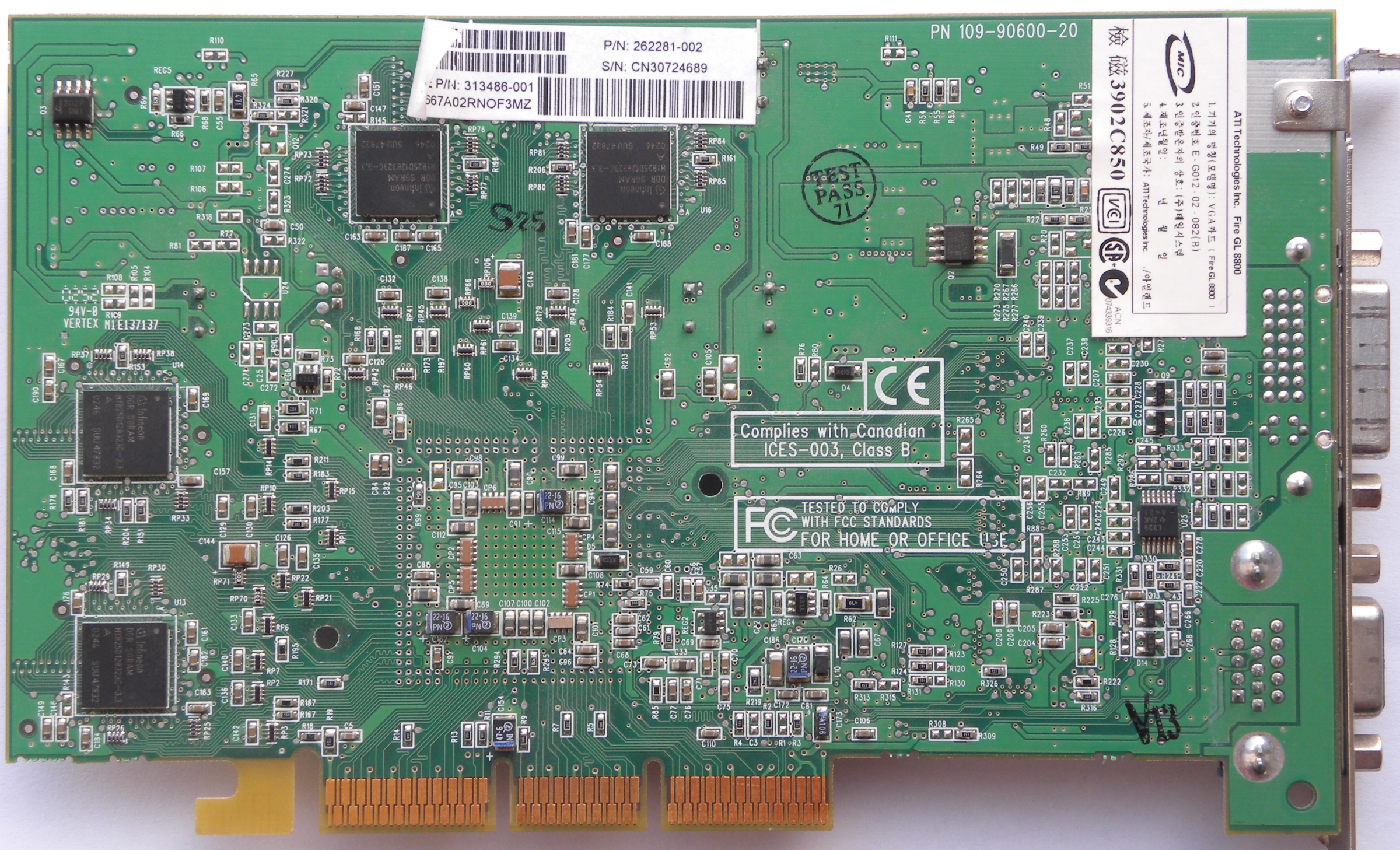

ATI FireGL 8800 128MB
ATI FireGL 8800 128MB

ATI FireGL 8800 128MB
ATI FireGL 8800 128MB
ATI FireGL 8800 128MB

ATI FireGL 8800 128MB
ATI FireGL 8800 128MB
ATI FireGL 8800 128MB

ATI FireGL 8800 128MB

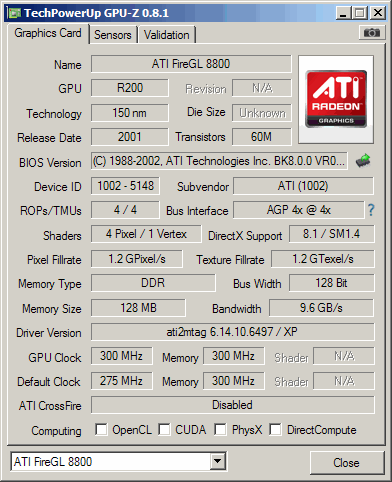

GPU-Z
GPU-Z

GPU-Z

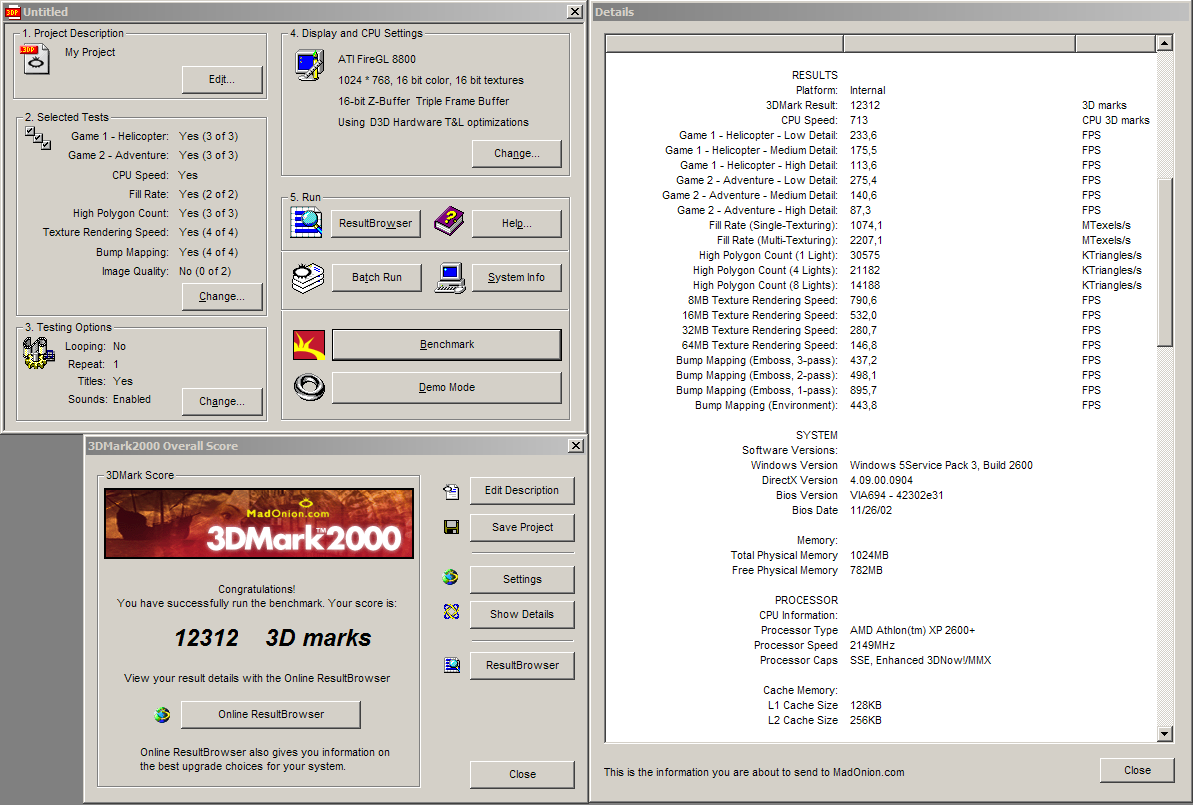

3DMark 2000
3DMark 2000

3DMark 2000

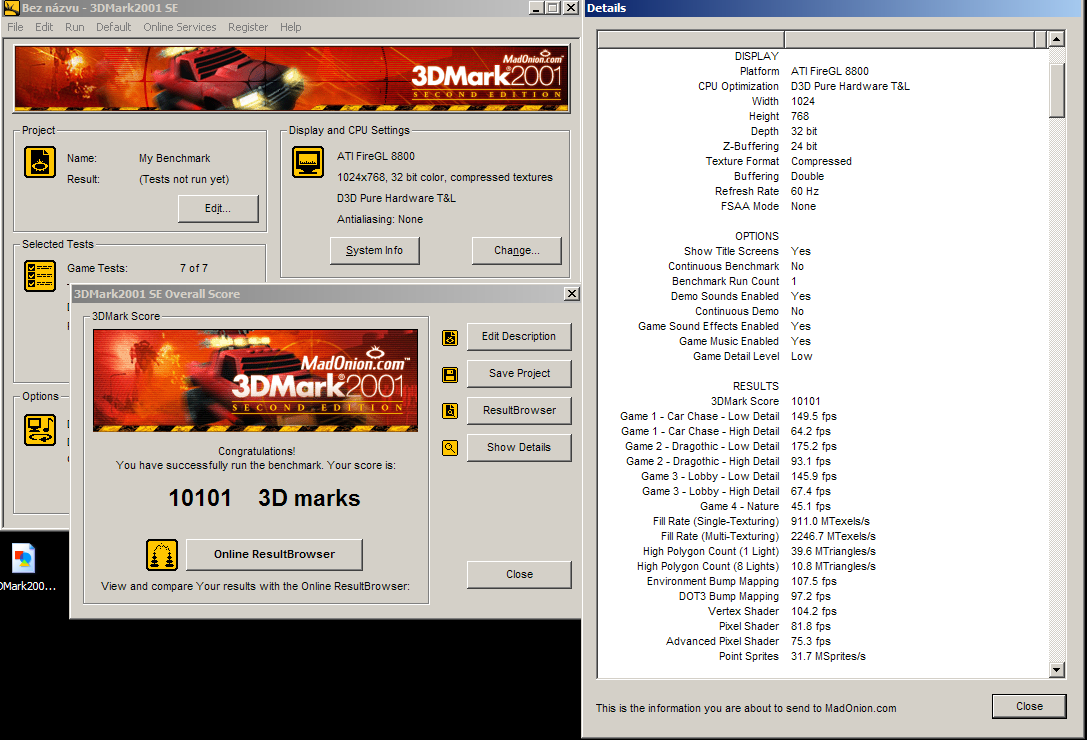

3DMark 2001 SE
3DMark 2001 SE

3DMark 2001 SE



Additional Info

  • Made by: ATI
  • Codename: R200
  • Bus: AGP 4x
  • Memory Size: 128MB
  • Max Memory Size: 128MB
  • Memory Type: DDR
  • Year: 2001
  • Announce Date: Tuesday, 14 August 2001
  • Card Type: VGA
  • Family: Radeon
  • Manufacturer: TSMC
  • Process tech: 150nm
  • Transistors (Millions): 60
  • Made in: Taiwan
  • Owned by: Zaatharen
  • Outputs: 15 pin D‐sub, DVI
  • Power consumption (W): 23
  • Price $: 999
  • Video Acceleration: MPEG-2 (DVD)
  • DirectX: DX8.1
  • OpenGL: 1.3
  • Core Clock (MHz): 300
  • Core: 256bit
  • Memory Clock (MHz): 600
  • Memory Bus Width: 128bit
  • Memory Bandwidth (MB/s): 9600
  • Pixel Pipelines: 4
  • Texture Units: 8
  • ROPs: 4
  • Vertex Shaders: 2 (1.1)
  • Pixel Shaders: 4 (1.4)
  • Pixel Fillrate (MPixel/s): 1200
  • Texel Fillrate (MTexel/s): 2400
  • Triangle/Vertices Rate (M/s): 150
  • Sold by: ATI
  • Max Core Clock (MHz): 300
  • Min Core Clock (MHz): 250
  • Max Memory Clock (MHz): 600
  • Min Memory Clock (MHz): 550
  • Ramdac (MHz): 400
Read 16444 times Last modified on Saturday, 29 July 2017 11:47
